Wastewater/Activity/PacpInspection/1.0Dec 19, 2017, 12:33 PM
08 0161_08 0160_12192017_051938.mp4
- Date
- 12/19/2017
- W/O
- 678022
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00009
- PipeID
- P00218
- Time
- 4:33 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5251
- Sewer Name
- 08 GRACE STREET TRUNK, SECTION 1
- City
- CARSON
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_678022_DISTRICT08_DEC2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 08 0161
- Downstream MH
- 08 0160
- Dir. of Survey
- Downstream
- Length Surveyed
- 38.2 ft.
- Total Length
- 38.2 ft.
- Structural Index
- 3
- Structural Quick
- 3300
- Structural Rating
- 9
- O&M Index
- 4
- O&M Quick
- 4131
- O&M Rating
- 7
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 16
Observation photos (4)

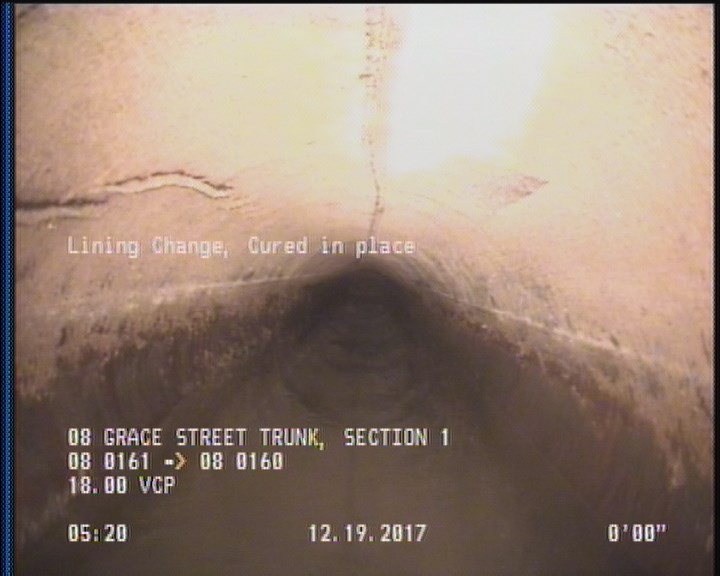

0 ft. - Lining Change, Cured in place

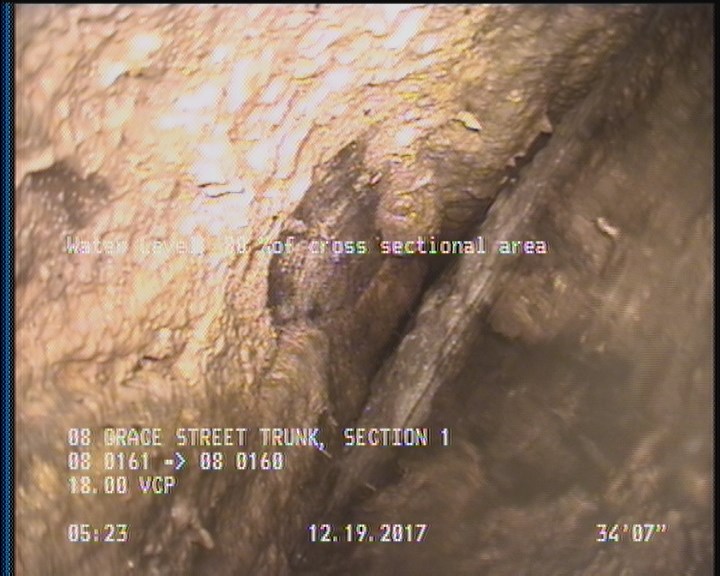

34.6 ft. - Water Level, 80 %of cross sectional area

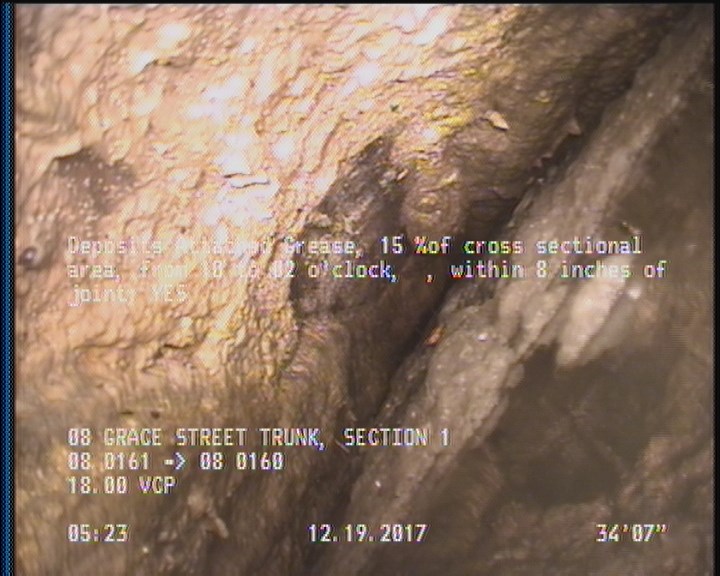

34.6 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES

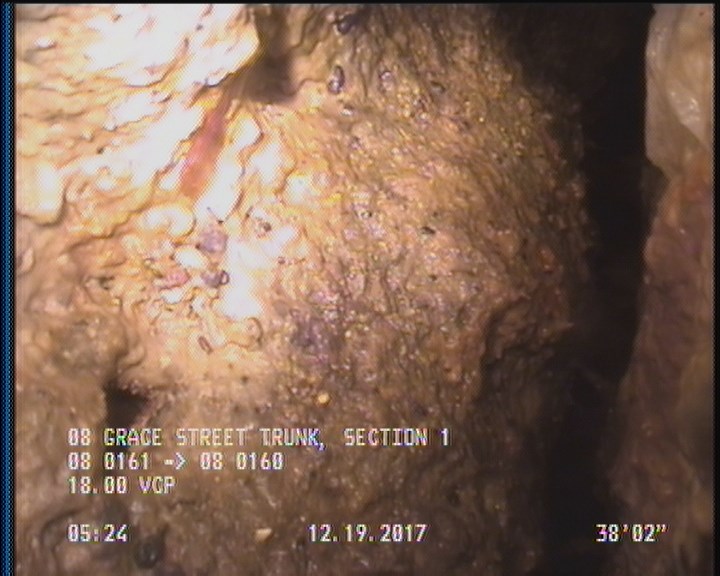

38.2 ft. - Survey Abandoned - DUE TO HIGH WATER LEVEL AND GREASE 40%
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 2 | LFW | — |
| 34.6 | MWL | — |
| 0 | MLC | — |
| 38.2 | MSA | DUE TO HIGH WATER LEVEL AND GREASE 40% |
| 18 | LFW | — |
| 0 | MWM | — |
| 14 | LFW | — |
| 0 | AMH | 08 0161 |
| 0 | MWL | — |
| 34.6 | DAGS | — |
Properties (6)
- additional_info
- SC346423
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-12-19T04:33:28-08:00
- lining
- CIPP
- year_laid
- 37424
