Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 15, 2017, 09:32 AM

  • 05 2146_05 2145_12152017_015008.mp4

Date
12/15/2017
W/O
674353
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00479
PipeID
P07286
Time
1:32 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5248
Sewer Name
05 MADISON STREET TRUNK
City
TORRANCE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
32
Purpose
Routine Assessment
Project
WO_674353_TV05064_DEC2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
05 2145
Downstream MH
05 2146
Dir. of Survey
Upstream
Length Surveyed
111.5 ft.
Total Length
111.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2C1B
O&M Rating
61
Overall Index
2
Overall Quick
—
Overall Rating
61
Pipe schematic from manhole 05 2145 to 05 2146
MH: 05 2145MH: 05 2146upstream0 ft. AMH - Upstream Manhole, Survey Ends - 05 21461.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish1.8 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR, Finish9.3 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"9.3 ft. RFL - Roots Fine Lateral, from 01 to 03 o'clock36.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"60.1 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR, Start60.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"61.7 ft. RFC - Roots Fine Connection, from 12 to 04 o'clock, within 8 inches of joint: YES61.7 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"65.1 ft. RFJ - Roots Fine Joint, at 09 o'clock, within 8 inches of joint: YESR72.5 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"73.8 ft. RFJ - Roots Fine Joint, at 10 o'clock, within 8 inches of joint: YESR76.8 ft. RFJ - Roots Fine Joint, at 10 o'clock, within 8 inches of joint: YESR105.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"109.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start111.5 ft. MWM - Water Mark, 25 %of cross sectional area111.5 ft. MWL - Water Level, 20 %of cross sectional area111.5 ft. AMH - Downstream Manhole, Survey Begins - 05 2145

Observation photos (6)

  • Roots Fine Joint, at 10 o'clock, within 8 inches of joint: YESR

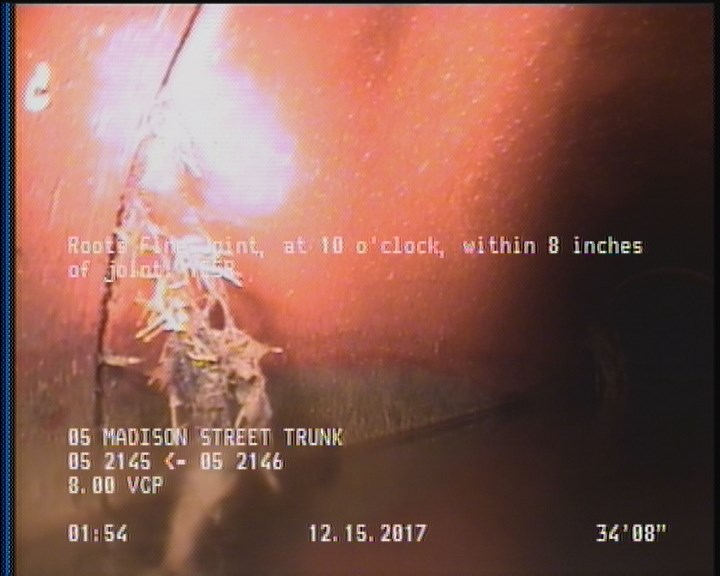

    34.7 ft. - Roots Fine Joint, at 10 o'clock, within 8 inches of joint: YESR

  • Roots Fine Joint, at 10 o'clock, within 8 inches of joint: YESR

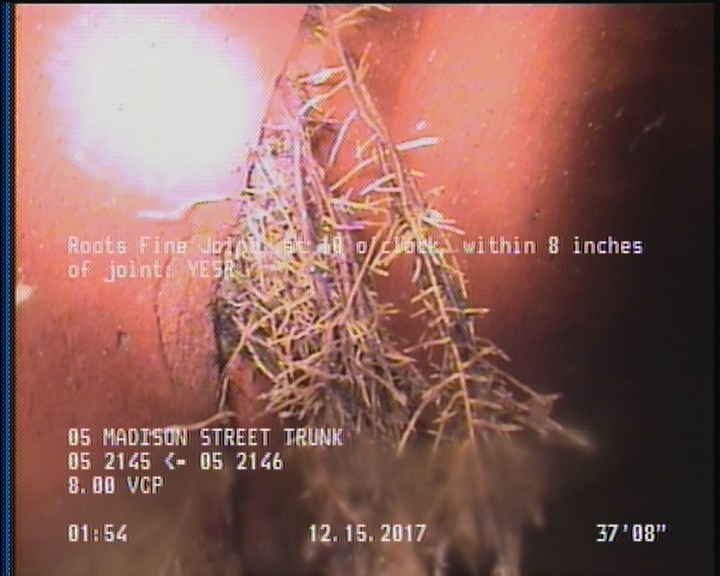

    37.7 ft. - Roots Fine Joint, at 10 o'clock, within 8 inches of joint: YESR

  • Roots Fine Joint, at 09 o'clock, within 8 inches of joint: YESR

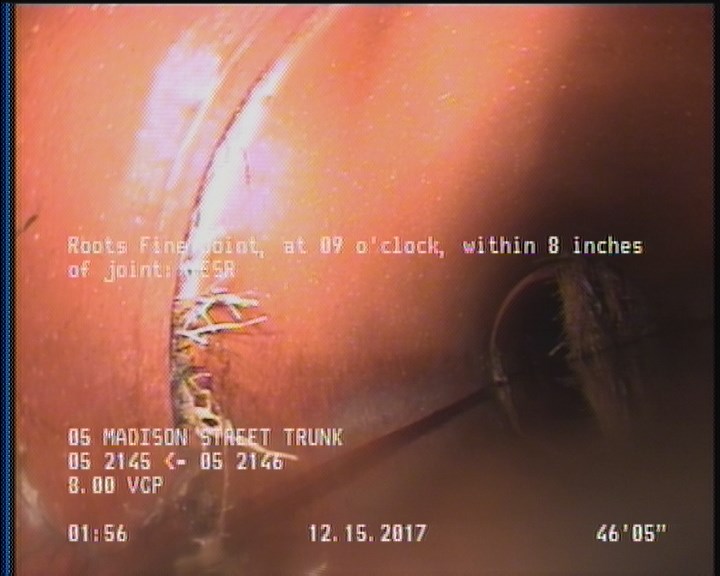

    46.4 ft. - Roots Fine Joint, at 09 o'clock, within 8 inches of joint: YESR

  • Roots Fine Connection, from 12 to 04 o'clock, within 8 inches of joint: YES

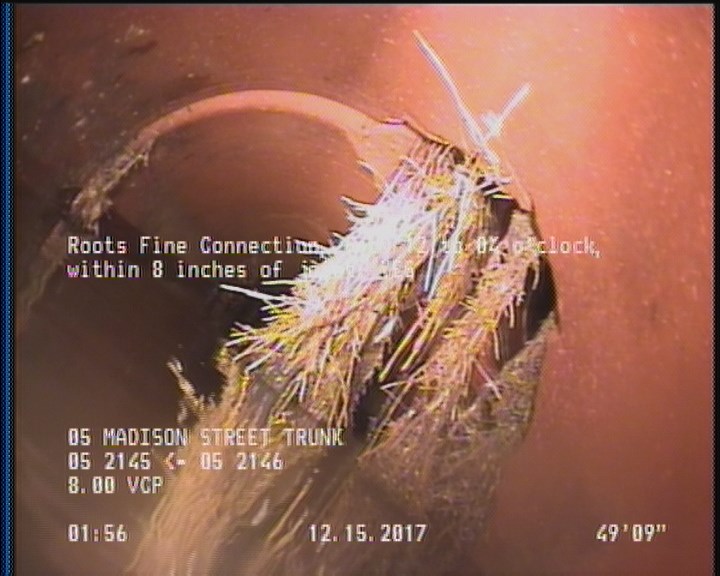

    49.8 ft. - Roots Fine Connection, from 12 to 04 o'clock, within 8 inches of joint: YES

  • Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR, Start

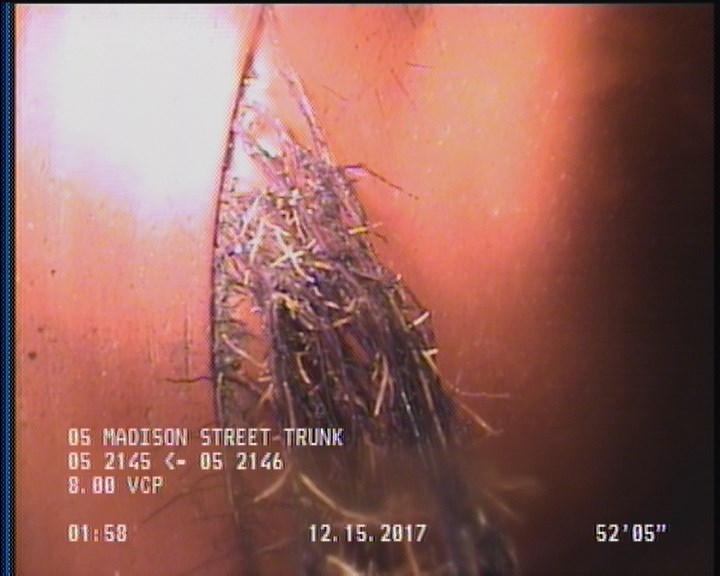

    51.4 ft. - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR, Start

  • Roots Fine Lateral, from 01 to 03 o'clock

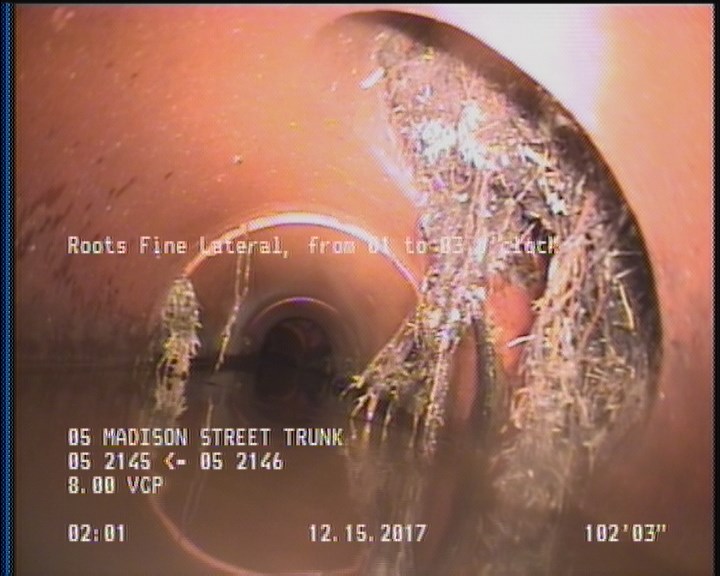

    102.2 ft. - Roots Fine Lateral, from 01 to 03 o'clock

All inspections of P07286Work order 674353

Observations (19)

DistanceCodeObservation
34.7RFJ—
46.4RFJ—
2DAGS—
0MWM—
49.8RFC—
75.3TFC—
0MWL—
111.5AMH05 2146
49.8TBA—
51.4RFJ—
102.2TBA—
39TBA—
102.2RFL—
109.7DAGS—
6.2TFA—
51.4TFC—
109.7RFJ—
37.7RFJ—
0AMH05 2145

Properties (4)

additional_info
SC346420
custom_field_two
4
customer
LACSD
datetime
2017-12-15T01:32:21-08:00
