Wastewater/Activity/PacpInspection/1.0Dec 20, 2017, 10:07 AM
05 2157_05 2156 _12202017_020935.mp4
- Date
- 12/20/2017
- W/O
- 674353
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00479
- PipeID
- P07299
- Time
- 2:07 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5253
- Sewer Name
- 05 MADISON STREET TRUNK
- City
- TORRANCE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- WO_674353_TV05064_DEC2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 05 2156
- Downstream MH
- 05 2157
- Dir. of Survey
- Upstream
- Length Surveyed
- 161.3 ft.
- Total Length
- 161.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2E00
- O&M Rating
- 64
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 64
Observation photos (1)

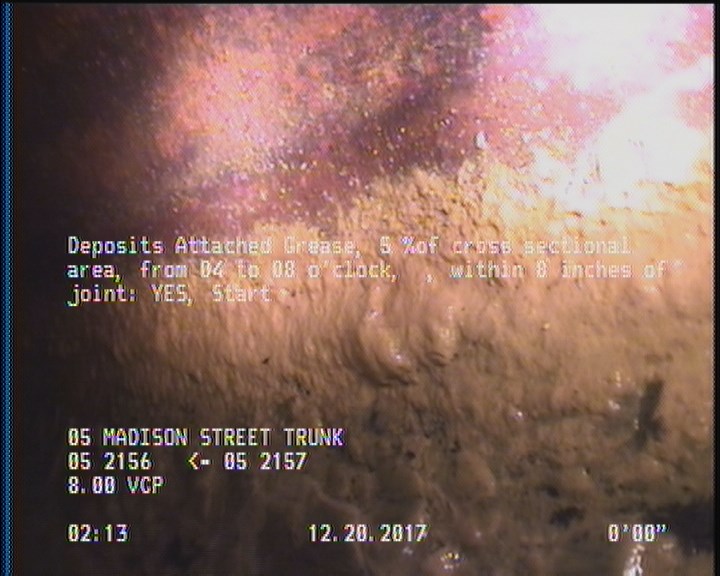

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 38.9 | TFA | — |
| 161.3 | AMH | 05 2157 |
| 2 | DAGS | — |
| 0 | AMH | 05 2156 |
| 0 | MWM | — |
| 159.6 | DAGS | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 6 O'CLOCK |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC346425
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-12-20T02:07:24-08:00
