Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 15, 2017, 11:11 AM

  • 05 2140_05 2139_12152017_032230.mp4

Date
12/15/2017
W/O
674353
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00479
PipeID
P07280
Time
3:11 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5248
Sewer Name
05 MADISON STREET TRUNK
City
TORRANCE
Loc. details
Alley
Location Code
H
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
32
Purpose
Routine Assessment
Project
WO_674353_TV05064_DEC2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
05 2140
Downstream MH
05 2139
Dir. of Survey
Downstream
Length Surveyed
313.2 ft.
Total Length
313.2 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
2
O&M Quick
2K1D
O&M Rating
149
Overall Index
2
Overall Quick
—
Overall Rating
151
Pipe schematic from manhole 05 2140 to 05 2139
MH: 05 2140MH: 05 2139downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 21400 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start38.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"53.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"69.9 ft. RFJ - Roots Fine Joint, at 09 o'clock, within 8 inches of joint: YESR73.4 ft. RFJ - Roots Fine Joint, at 03 o'clock, within 8 inches of joint: YESR77.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"87.5 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR, Start95.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"115.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"121.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"130.6 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"188 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"193.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"196.9 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"204 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR, Finish235.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"246.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"250.7 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"275 ft. TBA - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: NO, 6", 6"285.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"295.3 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"297.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"298.8 ft. CS - Crack Spiral, from 09 to 12 o'clock, within 8 inches of joint: YES311.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish313.2 ft. AMH - Downstream Manhole, Survey Ends - 05 2139

Observation photos (5)

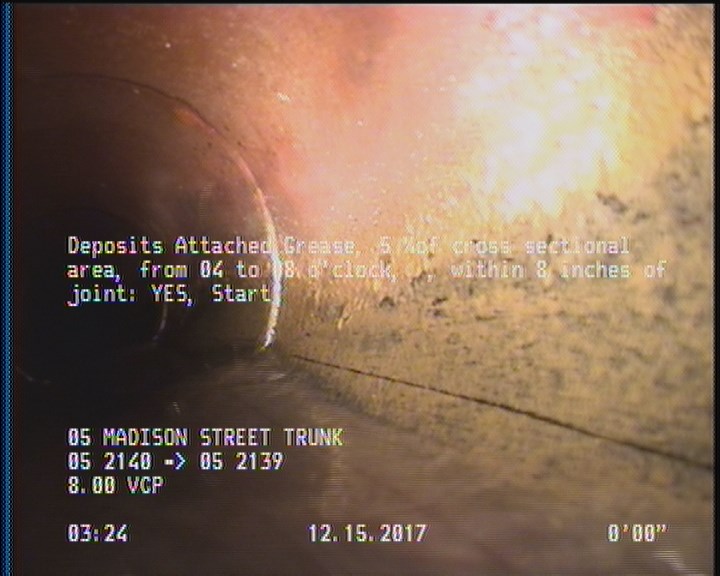

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

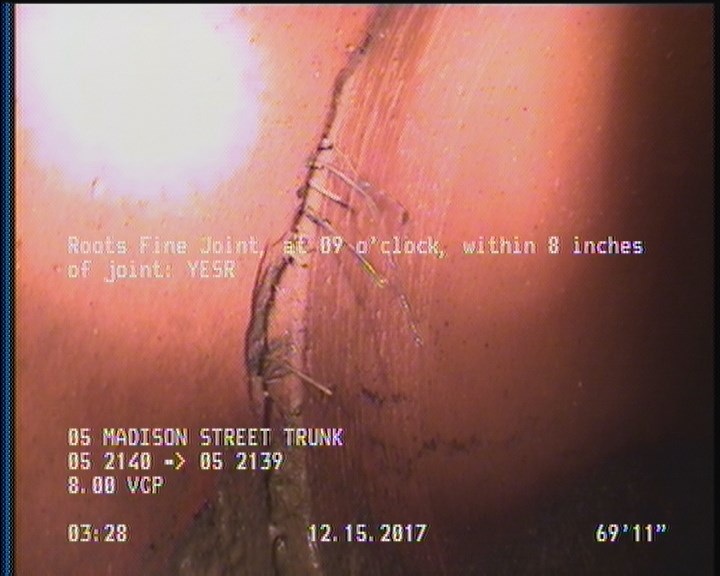

  • Roots Fine Joint, at 09 o'clock, within 8 inches of joint: YESR

    69.9 ft. - Roots Fine Joint, at 09 o'clock, within 8 inches of joint: YESR

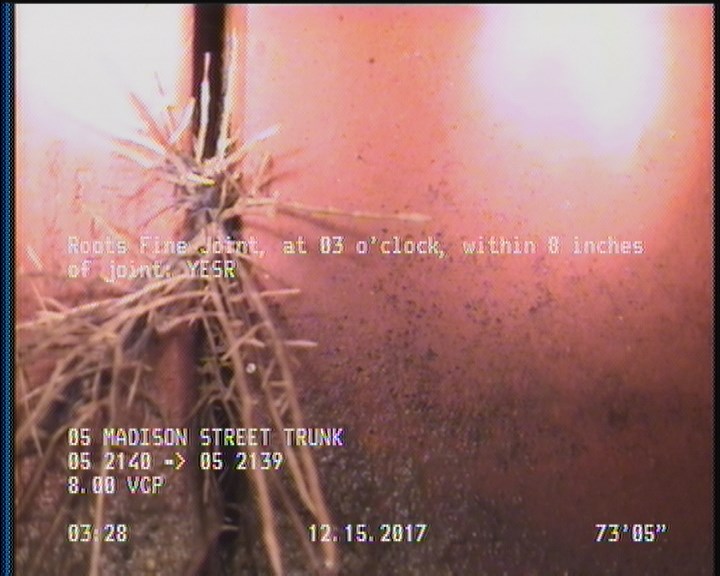

  • Roots Fine Joint, at 03 o'clock, within 8 inches of joint: YESR

    73.4 ft. - Roots Fine Joint, at 03 o'clock, within 8 inches of joint: YESR

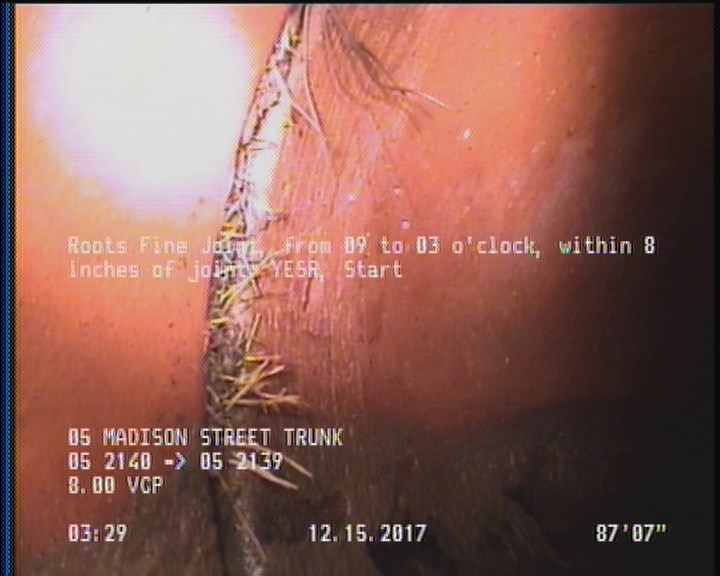

  • Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR, Start

    87.5 ft. - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR, Start

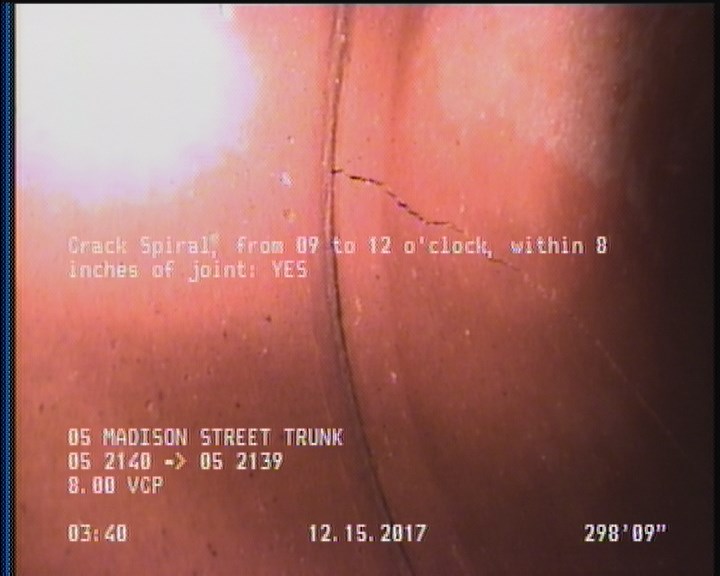

  • Crack Spiral, from 09 to 12 o'clock, within 8 inches of joint: YES

    298.8 ft. - Crack Spiral, from 09 to 12 o'clock, within 8 inches of joint: YES

All inspections of P07280Work order 674353

Observations (29)

DistanceCodeObservation
196.9TBA—
298.8CS—
188TFC—
295.3TBA—
38.8TFA—
275TBA—
0MWM—
313.2AMH05 2139
69.9RFJ—
285.7TFC—
297.9TFC—
246.9TFC—
121.5TFA—
0MWL—
0AMH05 2140
235.5TFA—
311.2DAGS—
193.4TFA—
130.6TB—
2DAGS—
87.5RFJ—
73.4RFJ—
115.8TFA—
250.7TBA—
204RFJ—
77.2TFA—
95.2TF—
53.5TFC—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK

Properties (4)

additional_info
SC346420
custom_field_two
4
customer
LACSD
datetime
2017-12-15T03:11:31-08:00
