Wastewater/Activity/PacpInspection/1.0Dec 15, 2017, 10:42 AM
05 2142_05 2141_12152017_024641.mp4
- Date
- 12/15/2017
- W/O
- 674353
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00479
- PipeID
- P07282
- Time
- 2:42 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5248
- Sewer Name
- 05 MADISON STREET TRUNK
- City
- TORRANCE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 32
- Purpose
- Routine Assessment
- Project
- WO_674353_TV05064_DEC2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 05 2141
- Downstream MH
- 05 2142
- Dir. of Survey
- Upstream
- Length Surveyed
- 91 ft.
- Total Length
- 91 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 4131
- O&M Rating
- 46
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 46
Observation photos (4)

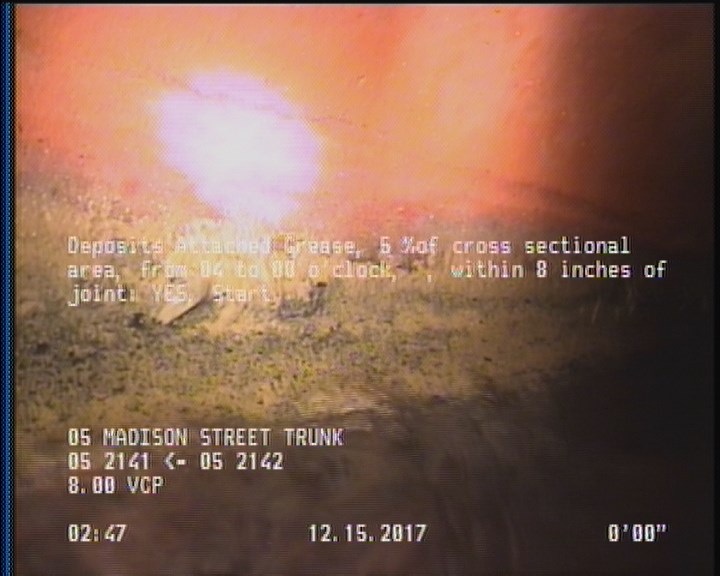

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

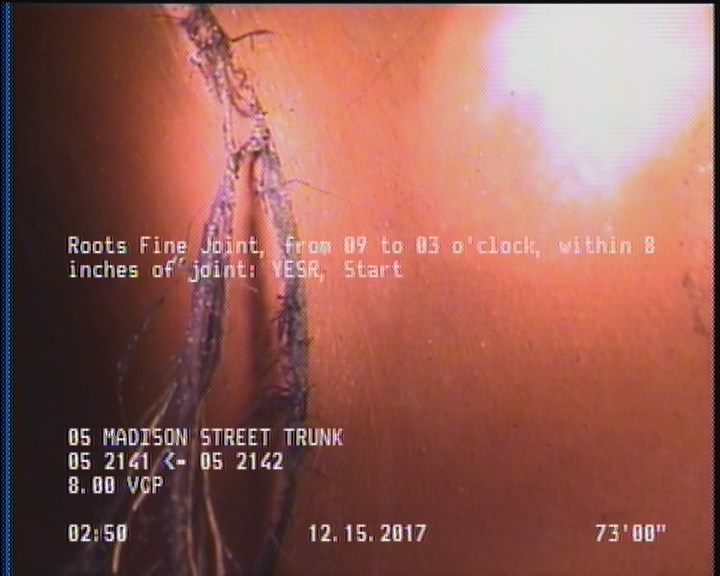

73 ft. - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR, Start

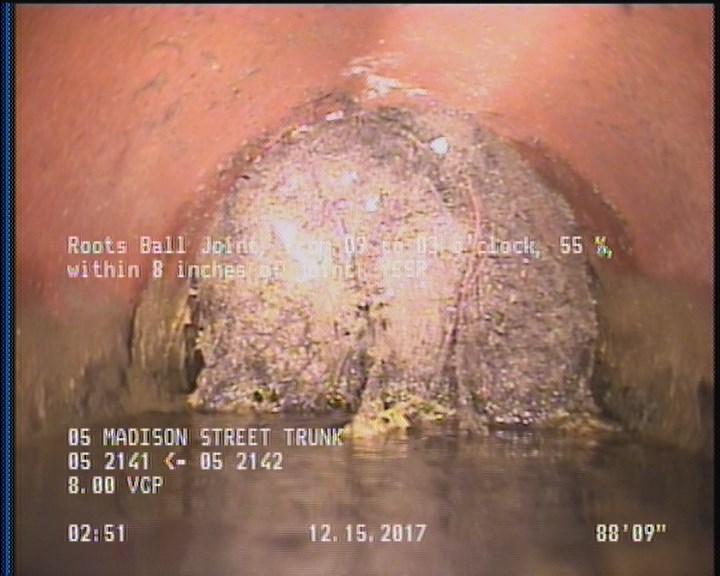

88.7 ft. - Roots Ball Joint, from 09 to 03 o'clock, 55 %, within 8 inches of joint: YESR

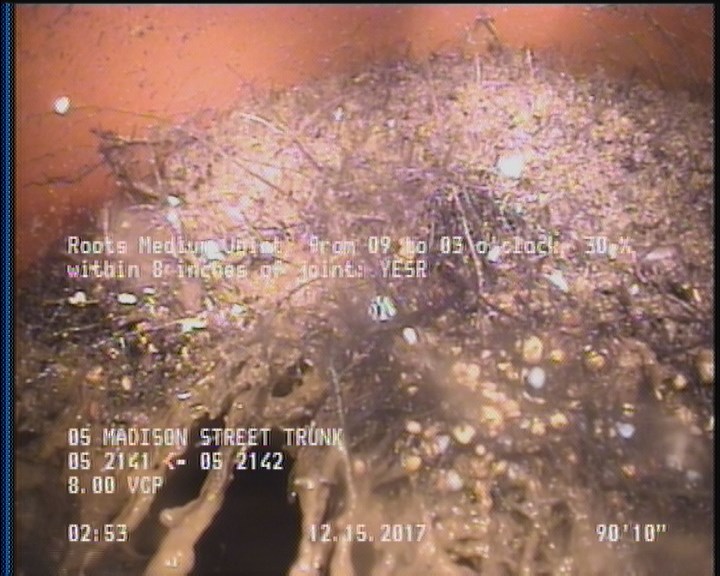

90.9 ft. - Roots Medium Joint, from 09 to 03 o'clock, 30 %, within 8 inches of joint: YESR
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 91 | MSA | DUE TO ROOTS. |
| 88.7 | RFJ | — |
| 0 | MWL | — |
| 88.7 | RBJ | — |
| 91 | DAGS | — |
| 0 | AMH | 05 2141 |
| 90.9 | RMJ | — |
| 0 | MWM | — |
| 73 | RFJ | — |
Properties (4)
- additional_info
- SC346420
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-12-15T02:42:54-08:00
