Wastewater/Activity/PacpInspection/1.0Dec 20, 2017, 11:48 AM
05 2151A_05 2151_12202017_035559.mp4
- Date
- 12/20/2017
- W/O
- 674353
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00479
- PipeID
- P07292
- Time
- 3:48 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5253
- Sewer Name
- 05 MADISON STREET TRUNK
- City
- TORRANCE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- WO_674353_TV05064_DEC2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 05 2151A
- Downstream MH
- 05 2151
- Dir. of Survey
- Downstream
- Length Surveyed
- 110.1 ft.
- Total Length
- 110.1 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2C00
- O&M Rating
- 42
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 45
Observation photos (2)

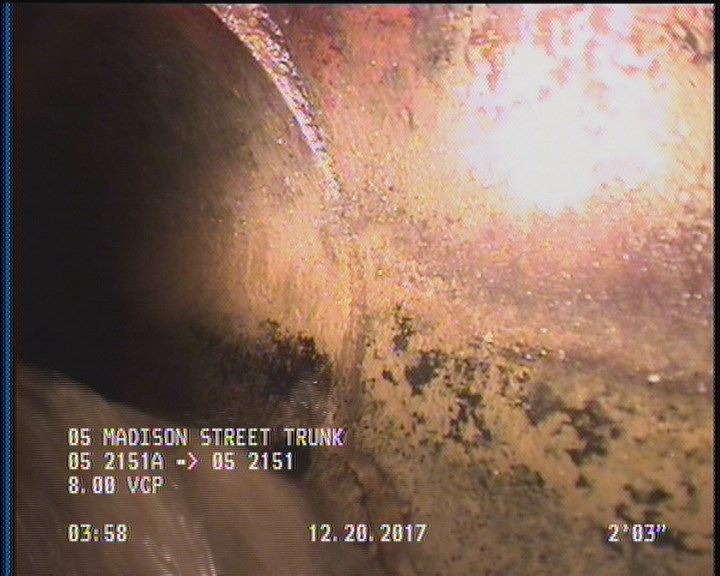

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

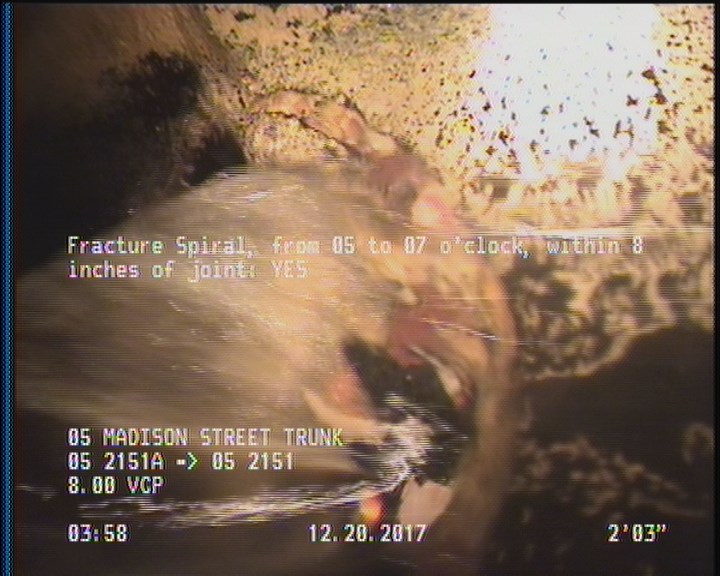

2.2 ft. - Fracture Spiral, from 05 to 07 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 43.3 | TFA | — |
| 88.5 | TFC | — |
| 2 | DAGS | — |
| 38 | TFC | — |
| 2.2 | FS | — |
| 50.6 | TFC | — |
| 0 | AMH | 05 2151A |
| 108.5 | DAGS | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 110.1 | AMH | 05 2151 |
Properties (4)
- additional_info
- SC346425
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-12-20T03:48:39-08:00
