Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 21, 2017, 07:21 AM

  • 05 2149_05 2148_12202017_232133.mp4

Date
12/20/2017
W/O
674353
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00479
PipeID
P07289
Time
11:21 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5254
Sewer Name
05 MADISON STREET TRUNK
City
TORRANCE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
35
Purpose
Routine Assessment
Project
WO_674353_TV05064_DEC2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
05 2149
Downstream MH
05 2148
Dir. of Survey
Downstream
Length Surveyed
348.7 ft.
Total Length
348.7 ft.
Structural Index
3
Structural Quick
3M11
Structural Rating
205
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
207
Pipe schematic from manhole 05 2149 to 05 2148
MH: 05 2149MH: 05 2148downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 21492 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start7.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start11.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"51.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"88 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"128.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"191.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"206.9 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"224.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"295.3 ft. JOM - Joint Offset Medium295.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"298.9 ft. TBA - Tap Break-In Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"345.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"347.5 ft. TFA - Tap Factory Made Active, at 06 o'clock, -, within 8 inches of joint: YES, 8" - DROP CONNECTION347.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish347.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish348 ft. MGO - General Observation - DROP MANHOLE348.7 ft. AMH - Downstream Manhole, Survey Ends - 05 2148348.7 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK

Observation photos (3)

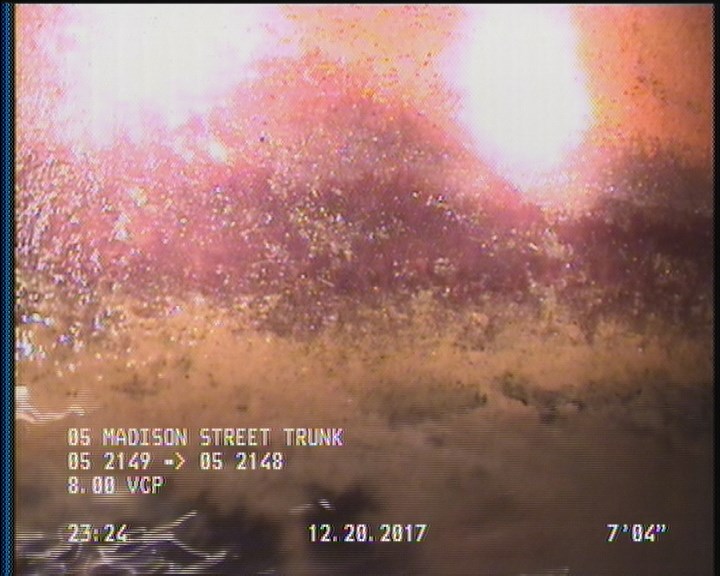

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

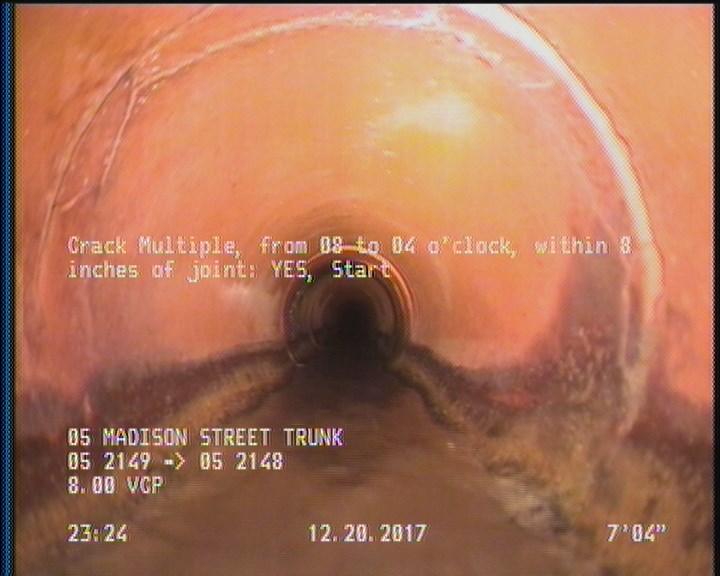

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    7.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

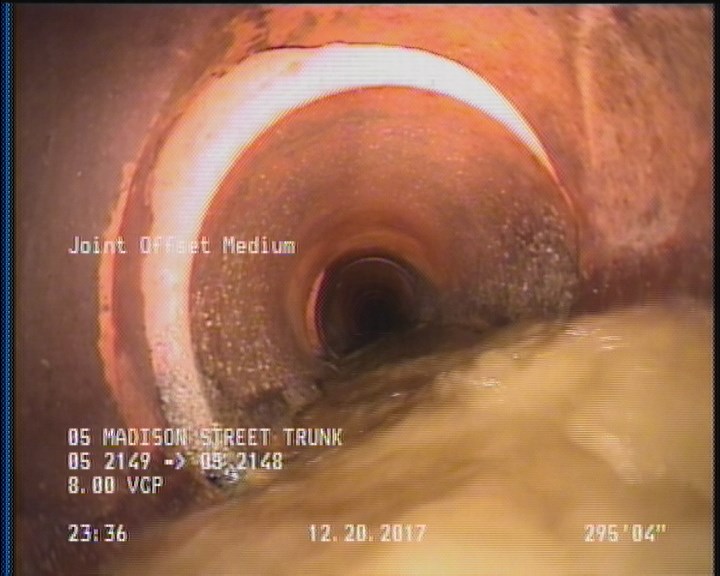

  • Joint Offset Medium

    295.3 ft. - Joint Offset Medium

All inspections of P07289Work order 674353

Observations (22)

DistanceCodeObservation
224.5TFC—
348.7AMH05 2148
348MGODROP MANHOLE
128.2TFC—
7.3CM—
0MWL—
0MWM—
295.3JOM—
348.7MGOACTIVE CONNECTION AT MH 3 O'CLOCK
206.9TBA—
347.5TFADROP CONNECTION
345.2TFC—
191.2TFC—
11.5TFA—
347.5DAGS—
88TFC—
2DAGS—
298.9TBA—
295.3TFC—
0AMH05 2149
51.4TFC—
347.5CM—

Properties (4)

additional_info
SC346426
custom_field_two
3
customer
LACSD
datetime
2017-12-20T23:21:14-08:00
