Wastewater/Activity/PacpInspection/1.0Dec 15, 2017, 10:31 AM
05 2141_05 2140_12152017_023243.mp4
- Date
- 12/15/2017
- W/O
- 674353
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00479
- PipeID
- P07281
- Time
- 2:31 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5248
- Sewer Name
- 05 MADISON STREET TRUNK
- City
- TORRANCE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 32
- Purpose
- Routine Assessment
- Project
- WO_674353_TV05064_DEC2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 05 2141
- Downstream MH
- 05 2140
- Dir. of Survey
- Downstream
- Length Surveyed
- 155.4 ft.
- Total Length
- 155.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2E1E
- O&M Rating
- 89
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 89
Observation photos (2)

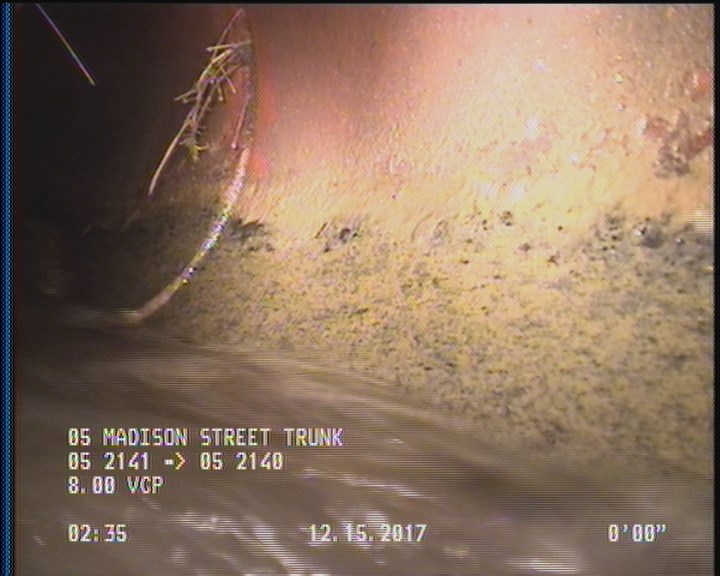

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

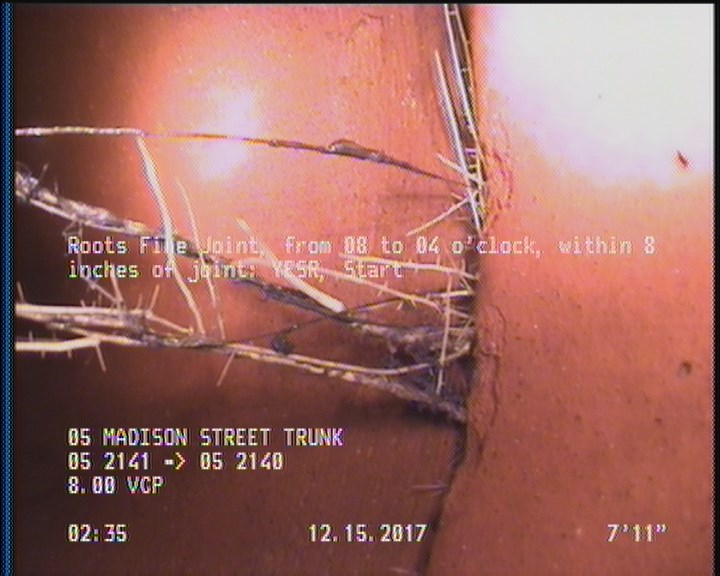

7.9 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 155.4 | MGO | ACTIVE CONNECTION AT MH 12 O'CLOCK |
| 0 | MWL | — |
| 51.3 | TFA | — |
| 7.9 | RFJ | — |
| 149.2 | RFJ | — |
| 2 | DAGS | — |
| 154.1 | DAGS | — |
| 143.3 | TFA | — |
| 125.5 | TFC | — |
| 0 | MWM | — |
| 101.9 | TFC | — |
| 155.4 | AMH | 05 2140 |
| 62.8 | TBA | — |
| 4 | RFJ | — |
| 0 | AMH | 05 2141 |
| 154.1 | MGO | COCKROACHES IN MANHOLE |
| 75.2 | TFA | — |
Properties (4)
- additional_info
- SC346420
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-12-15T02:31:21-08:00
