Wastewater/Activity/PacpInspection/1.0Dec 14, 2017, 06:20 AM
B 0040_B 0959_13122017_222038.mp4
- Date
- 12/13/2017
- W/O
- 674009
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00113
- PipeID
- P22310
- Time
- 10:20 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5278
- Sewer Name
- B JOINT OUTFALL B - UNIT 9A
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_674009_TV08152_DEC2017
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 78 in.
- Width
- 78 in.
- Upstream MH
- B 0040
- Downstream MH
- B 0959
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

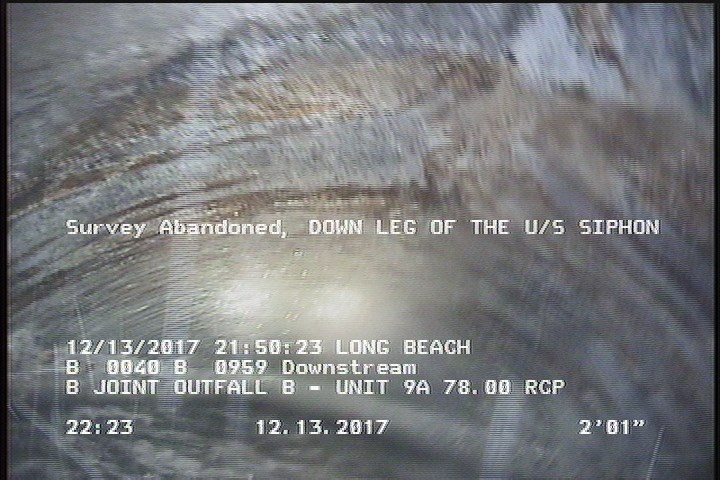

2.1 ft. - Survey Abandoned - DOWN LEG OF THE U/S SIPHON

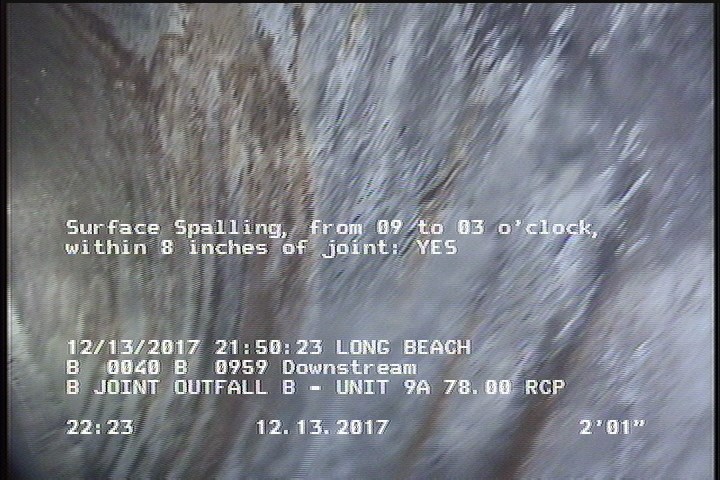

2.1 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | MSA | DOWN LEG OF THE U/S SIPHON |
| 0 | MWM | — |
| 0 | MGO | CONNECTION AT MH 6 O'CLOCK |
| 2.1 | SSS | — |
| 0 | AMH | B 0040 |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC346755
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-13T22:20:10-08:00
