Wastewater/Activity/PacpInspection/1.0Dec 15, 2017, 07:20 AM
B 0036_A 1249 _14122017_221716.mp4
- Date
- 12/14/2017
- W/O
- 674009
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00113
- PipeID
- P22736
- Time
- 11:20 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5279
- Sewer Name
- B JOINT OUTFALL B - UNIT 9A
- City
- COMPTON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_674009_TV08152_DEC2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 78 in.
- Width
- 78 in.
- Upstream MH
- B 0036
- Downstream MH
- A 1249
- Dir. of Survey
- Downstream
- Length Surveyed
- 91.9 ft.
- Total Length
- 92 ft.
- Structural Index
- 2
- Structural Quick
- 2C00
- Structural Rating
- 36
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 40
Observation photos (2)

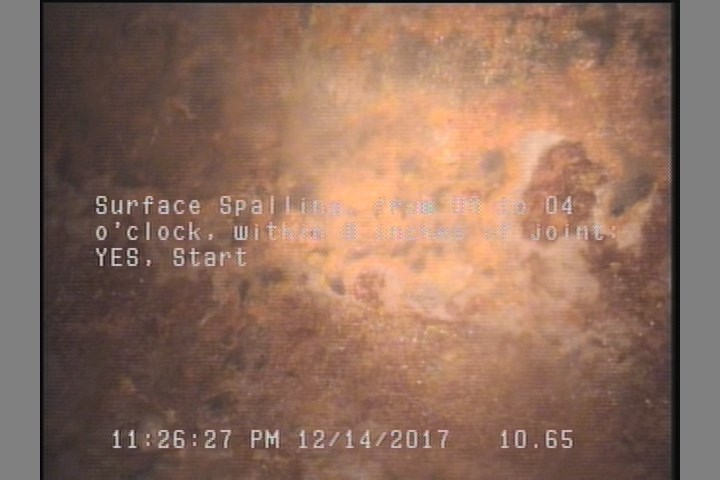

2.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

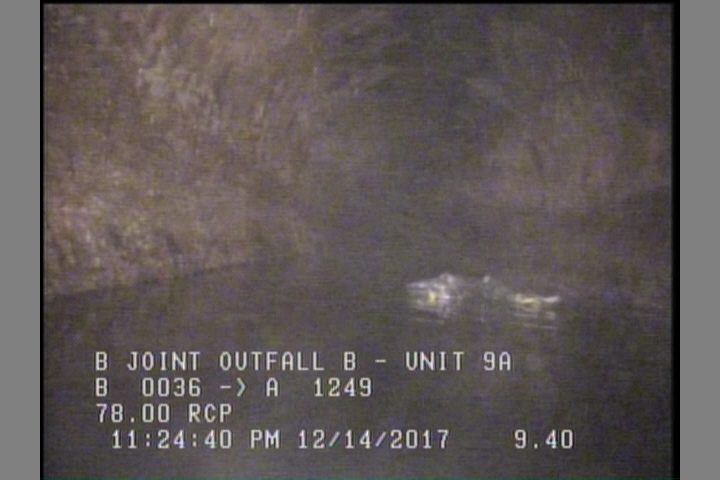

2.1 ft. - Deposits Settled Other, 25 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO - HEAVY SLUDGE
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 2.1 | SSS | — |
| 92 | AMH | A 1249 ZOOMED IN |
| 92 | SSS | — |
| 2.1 | DSZ | HEAVY SLUDGE |
| 0 | AMH | B 0036 |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC346756
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-14T23:20:25-08:00
