Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 18, 2018, 10:01 AM

  • J 0358_J 0357_1182018_022133.mp4

Date
01/18/2018
W/O
#
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00070
PipeID
P11722
Time
2:01 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0727
Sewer Name
J JOINT OUTFALL J - UNIT 5C
City
PALOS VERDES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 30
Page No.
07
Purpose
Routine Assessment
Project
20180118MDM_JOINT_OUTFALL_J_UNIT_5C
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
J 0358
Downstream MH
J 0357
Dir. of Survey
Downstream
Length Surveyed
194.5 ft.
Total Length
194.5 ft.
Structural Index
2
Structural Quick
3929
Structural Rating
52
O&M Index
2
O&M Quick
3321
O&M Rating
18
Overall Index
2
Overall Quick
—
Overall Rating
70
Pipe schematic from manhole J 0358 to J 0357
MH: J 0358MH: J 0357downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active-OUTGOING0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active-INCOMING0 ft. AMH - Upstream Manhole, Survey Begins - 2:15AM9.1 ft. MGO - General Observation - 8" VCP14.1 ft. JSM - Joint Separated Medium - SEALED38.4 ft. JOM - Joint Offset Medium - SEALED44.4 ft. RMJ - Roots Medium Joint, from 07 to 05 o'clock, 15 %, within 8 inches of joint: YESR53.2 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - HAIRLINE53.2 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - HAIRLINE54.9 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H54.9 ft. FC - Fracture Circumferential, from 04 to 05 o'clock, within 8 inches of joint: YES - H56.6 ft. MWM - Water Mark, 20 %of cross sectional area58 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL60.1 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - SL60.1 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H70.2 ft. RFJ - Roots Fine Joint, from 03 to 05 o'clock, within 8 inches of joint: YESR - 3%80.2 ft. RFJ - Roots Fine Joint, from 07 to 09 o'clock, within 8 inches of joint: YESR - 3%85.4 ft. JOM - Joint Offset Medium - SEALED86.7 ft. TBD - Tap Break-In Defective, at 01 o'clock, -, , within 8 inches of joint: YES, 6" - OPEN -80% ROOTS86.7 ft. RML - Roots Medium Lateral, from 10 to 11 o'clock, 5 %, within 8 inches of joint: YES86.7 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Open87.6 ft. RFJ - Roots Fine Joint, from 04 to 05 o'clock, within 8 inches of joint: YESR - 3%89.4 ft. RFJ - Roots Fine Joint, from 04 to 08 o'clock, within 8 inches of joint: YESR - 3%89.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped91.3 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: NO - H95.3 ft. RFJ - Roots Fine Joint, from 08 to 09 o'clock, within 8 inches of joint: YESR - 3%100.6 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - SL105.4 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - SL105.7 ft. FC - Fracture Circumferential, from 08 to 02 o'clock, within 8 inches of joint: YES - H115.9 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL115.9 ft. JOM - Joint Offset Medium - SEALED120.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H130.5 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H136 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL141.1 ft. JOM - Joint Offset Medium - SEALED143.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start146.1 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - SL151.2 ft. JOM - Joint Offset Medium - SEALED156.4 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES - SL166.4 ft. RFJ - Roots Fine Joint, from 08 to 09 o'clock, within 8 inches of joint: YESR - 3%166.4 ft. MWM - Water Mark, 30 %of cross sectional area176.6 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - SL176.6 ft. RFJ - Roots Fine Joint, from 03 to 09 o'clock, within 8 inches of joint: YESR - 3%181.5 ft. JOM - Joint Offset Medium - SEALED194.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish194.2 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active194.5 ft. AMH - Downstream Manhole, Survey Ends - 3:00AM

Observation photos (4)

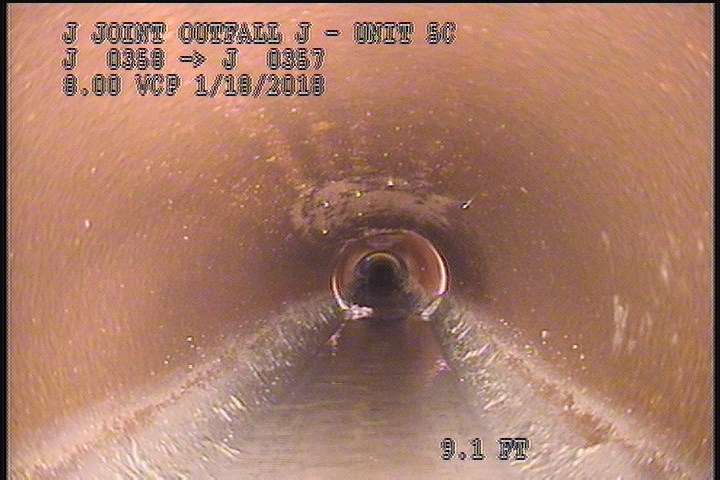

  • General Observation - 8" VCP

    9.1 ft. - General Observation - 8" VCP

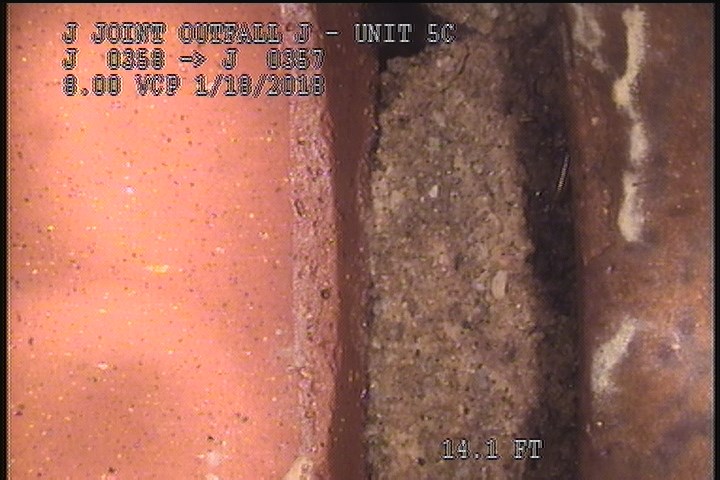

  • Joint Separated Medium - SEALED

    14.1 ft. - Joint Separated Medium - SEALED

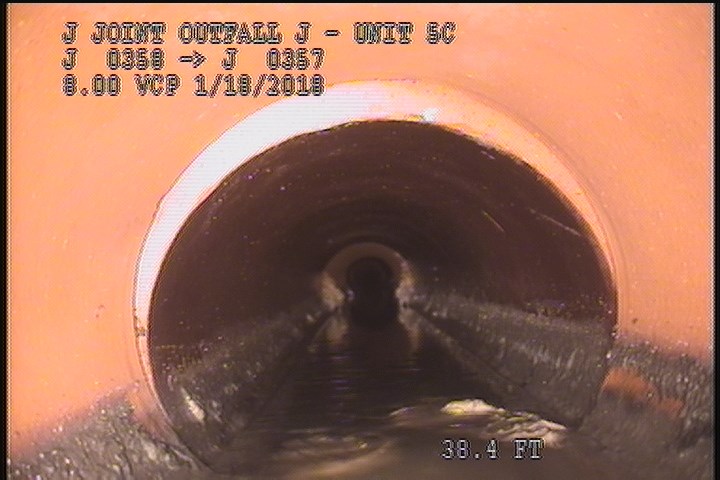

  • Joint Offset Medium - SEALED

    38.4 ft. - Joint Offset Medium - SEALED

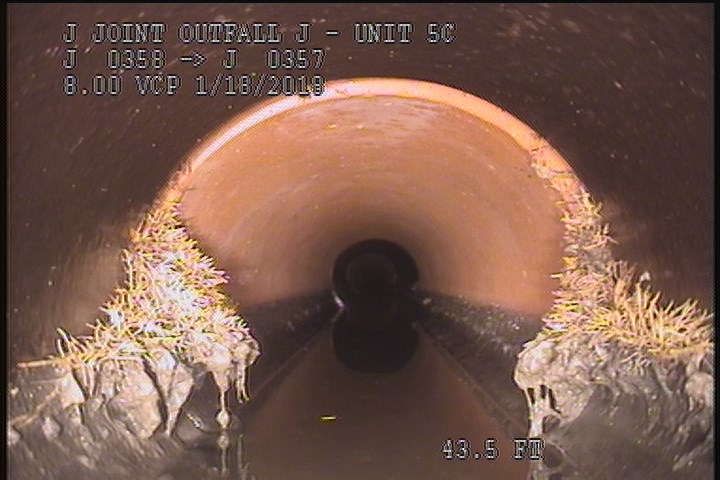

  • Roots Medium Joint, from 07 to 05 o'clock, 15 %, within 8 inches of joint: YESR

    44.4 ft. - Roots Medium Joint, from 07 to 05 o'clock, 15 %, within 8 inches of joint: YESR

All inspections of P11722Work order #

Observations (49)

DistanceCodeObservation
130.5FLH
194.5AMH3:00AM
0MWL—
53.2FLHAIRLINE
86.7TBDOPEN -80% ROOTS
80.2RFJ3%
38.4JOMSEALED
14.1JSMSEALED
70.2RFJ3%
181.5JOMSEALED
166.4RFJ3%
89.4RFJ3%
156.4FLSL
194.2DAGS—
146.1FLSL
9.1MGO8" VCP
56.6MWM—
85.4JOMSEALED
176.6FLSL
141.1JOMSEALED
143.7DAGS—
44.4RMJ—
60.1FCSL
115.9FCSL
115.9JOMSEALED
87.6RFJ3%
194.2MGOConn. @ Mh, 9 O' Clock. Active
100.6FLSL
54.9FCH
86.7RML—
120.8FLH
151.2JOMSEALED
86.7TBOpen
0MWM—
166.4MWM—
60.1FCH
0MGOConn. @ Mh, 3 O' Clock. Active-OUTGOING
105.4FCSL
54.9FCH
89.4TFCCapped
58FCSL
176.6RFJ3%
91.3FLH
136FCSL
0MGOConn. @ Mh, 9 O' Clock. Active-INCOMING
0AMH2:15AM
105.7FCH
95.3RFJ3%
53.2FLHAIRLINE

Properties (4)

custom_field_three
SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2018-01-18T02:01:27-08:00
