Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 17, 2018, 07:11 PM

  • Section#1_05 1700_05 1699__1172018__G6923.mp4

Date
01/17/2018
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00471
PipeID
P06926
Time
11:11 AM
Certificate
U-4106024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6923
Sewer Name
05 LOMITA TRUNK
City
LOMITA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
36
Purpose
Routine Assessment
Project
20180117DF_LOMITA_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
05 1699
Downstream MH
05 1700
Dir. of Survey
Upstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
5
Structural Quick
5100
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
5
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 05 1699 to 05 1700
MH: 05 1699MH: 05 1700upstream0 ft. MSA - Survey Abandoned - 11:26 AM0.1 ft. MGP - General Photograph - BROKEN PIPE0.1 ft. B - Broken, from 10 to 02 o'clock, within 8 inches of joint: YES1.8 ft. MWM - Water Mark, 35 %of cross sectional area2 ft. MWL - Water Level, 30 %of cross sectional area2.1 ft. AMH - Downstream Manhole, Survey Begins - 11:15 AM

Observation photos (3)

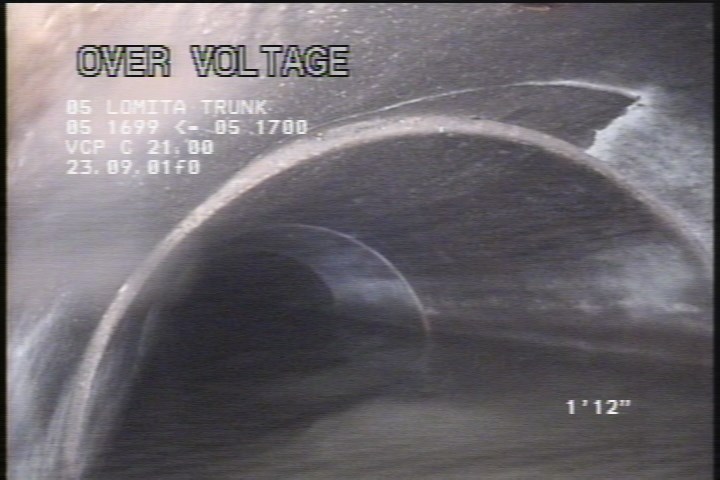

  • Water Level, 30 %of cross sectional area

    0.1 ft. - Water Level, 30 %of cross sectional area

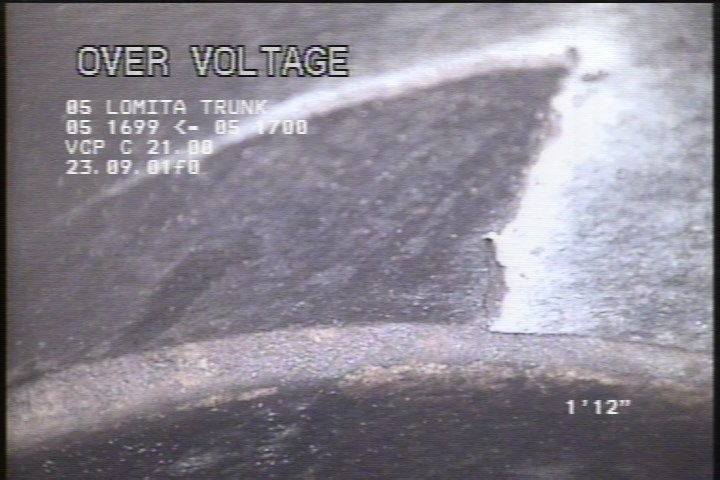

  • General Photograph - BROKEN PIPE

    2 ft. - General Photograph - BROKEN PIPE

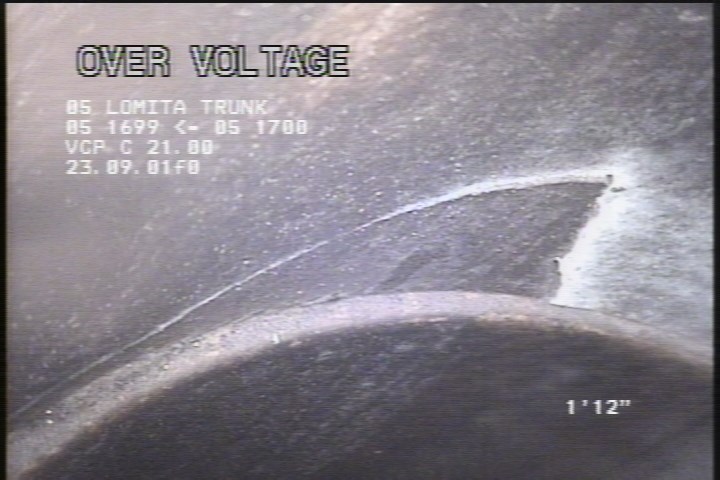

  • Broken, from 10 to 02 o'clock, within 8 inches of joint: YES

    2 ft. - Broken, from 10 to 02 o'clock, within 8 inches of joint: YES

All inspections of P06926Work order PENDING

Observations (6)

DistanceCodeObservation
2.1MSA11:26 AM
0AMH11:15 AM
0.1MWL—
0.3MWM—
2MGPBROKEN PIPE
2B—

Properties (4)

additional_info
LOOKING AT BROKEN PIPE 2' U/S MH 1699 (10 TO 2 O'CLOCK)
custom_field_two
5
customer
LACSD
datetime
2018-01-17T11:11:58-08:00
