Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 29, 2017, 12:46 PM

  • 01 0723_01 0722_12292017_044637.mp4

Date
12/29/2017
W/O
679278
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00195
PipeID
P01433
Time
4:46 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5361
Sewer Name
01 BULLIS ROAD RELIEF TRUNK, SECTION 1
City
LYNWOOD
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
14
Purpose
Routine Assessment
Project
WO_679278_TV01259_JAN2018
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
01 0723
Downstream MH
01 0722
Dir. of Survey
Downstream
Length Surveyed
325.4 ft.
Total Length
325.4 ft.
Structural Index
3
Structural Quick
3C00
Structural Rating
66
O&M Index
2
O&M Quick
412L
O&M Rating
132
Overall Index
2
Overall Quick
—
Overall Rating
198
Pipe schematic from manhole 01 0723 to 01 0722
MH: 01 0723MH: 01 0722downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 07230 ft. MGO - General Observation - COCKROACHES IN MANHOLE2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start6.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start83.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish172.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start207.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish323 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish325.4 ft. AMH - Downstream Manhole, Survey Ends - 01 0722325.4 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (3)

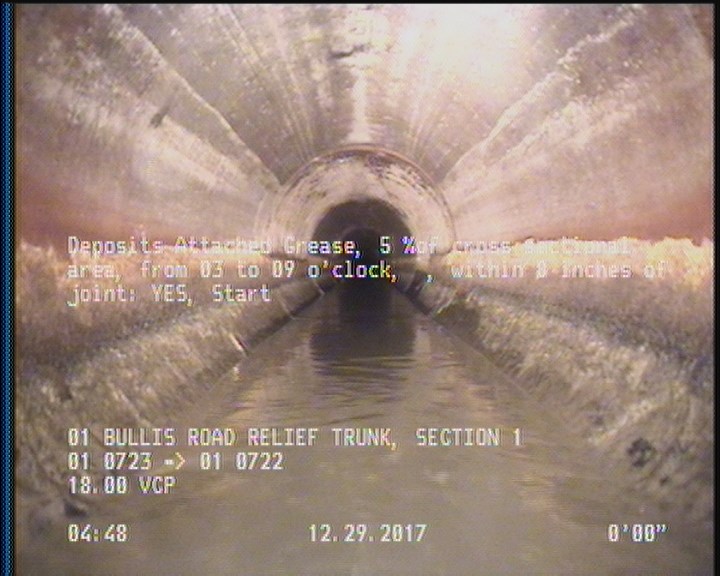

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

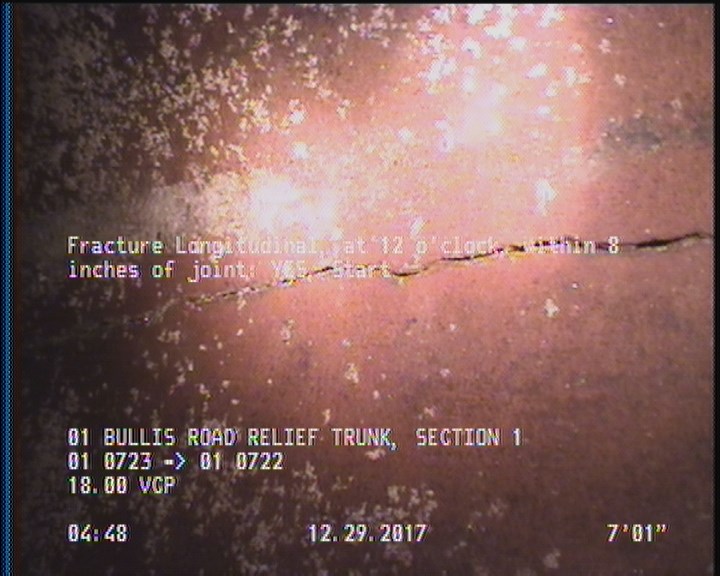

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    6.5 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

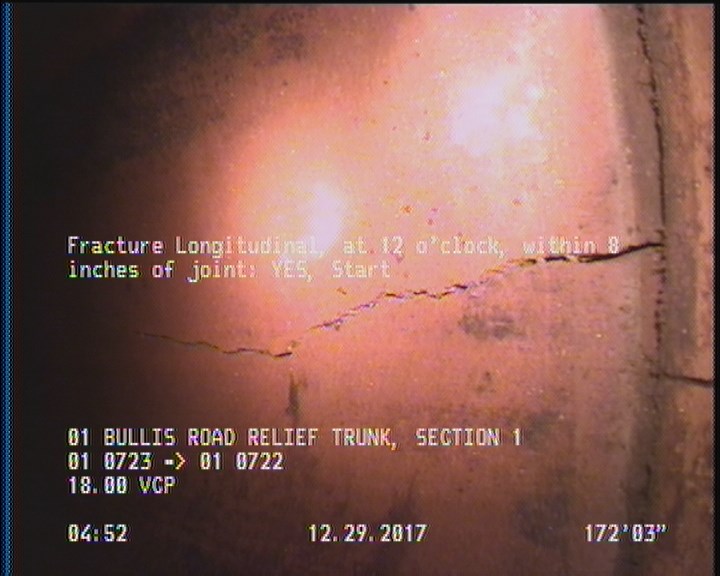

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    172.3 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

All inspections of P01433Work order 679278

Observations (12)

DistanceCodeObservation
323DAGS—
0MWL—
0MWM—
0AMH01 0723
325.4AMH01 0722
83.1FL—
207.9FL—
2DAGS—
325.4MGOCOCKROACHES IN MANHOLE
0MGOCOCKROACHES IN MANHOLE
172.3FL—
6.5FL—

Properties (5)

additional_info
SC346438
custom_field_two
2
customer
LACSD
datetime
2017-12-29T04:46:26-08:00
sewer_category
Gravity
