Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 22, 2017, 10:31 AM

  • 08 0085_08 0084 _22122017_024647.mp4

Date
12/22/2017
W/O
679275
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00016
PipeID
P00113
Time
2:31 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5291
Sewer Name
08 MAIN STREET TRUNK
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
02
Purpose
Routine Assessment
Project
WO_679275_TV08116_JAN2018
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
08 0085
Downstream MH
08 0084
Dir. of Survey
Downstream
Length Surveyed
412.1 ft.
Total Length
412.2 ft.
Structural Index
3
Structural Quick
3O00
Structural Rating
243
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
3
Overall Quick
—
Overall Rating
244
Pipe schematic from manhole 08 0085 to 08 0084
MH: 08 0085MH: 08 0084downstream0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 08 00850 ft. MWL - Water Level, 10 %of cross sectional area6.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start14.4 ft. TSC - Tap Saddle Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"62.1 ft. TSC - Tap Saddle Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"112.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"161.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"210.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"263.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"289.9 ft. RFJ - Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YES312.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"361.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"410.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish412.2 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK412.2 ft. AMH - Downstream Manhole, Survey Ends - 08 0084

Observation photos (2)

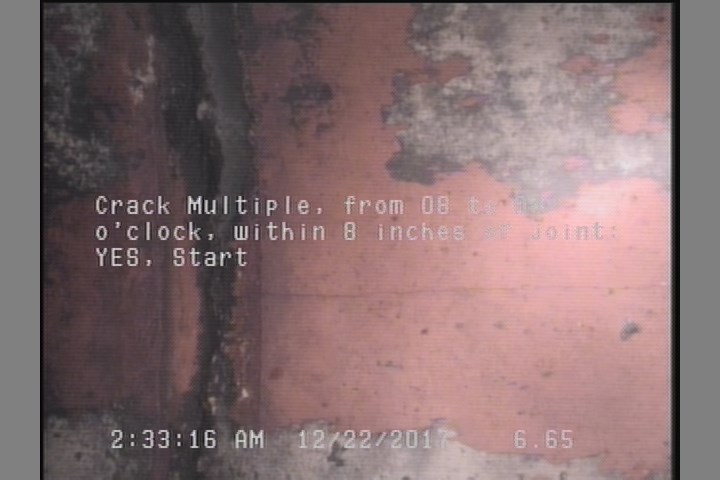

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    6.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

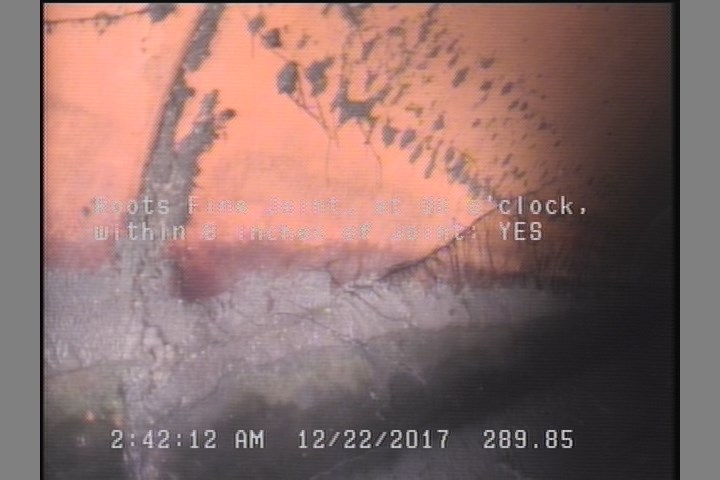

  • Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YES

    289.9 ft. - Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YES

All inspections of P00113Work order 679275

Observations (17)

DistanceCodeObservation
412.2MGOCONNECTION AT MH 3 O'CLOCK
0MGOCONNECTION AT MH 3 O'CLOCK
263.4TFC—
0MWM—
62.1TSC—
161.6TF—
0AMH08 0085
410.1CM—
112.3TFC—
289.9RFJ—
0MWL—
6.7CM—
361.7TF—
312.4TFC—
412.2AMH08 0084
210.8TFC—
14.4TSC—

Properties (5)

additional_info
SC346769
custom_field_two
3
customer
LACSD
datetime
2017-12-22T02:31:37-08:00
sewer_category
Gravity
