Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 29, 2017, 06:04 AM

  • 08 0043_08 0042 _28122017_221829.mp4

Date
12/28/2017
W/O
679275
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00016
PipeID
P00045
Time
10:04 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5298
Sewer Name
08 MAIN STREET TRUNK
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
04
Purpose
Routine Assessment
Project
WO_679275_TV08116_JAN2018
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
08 0042
Downstream MH
08 0043
Dir. of Survey
Upstream
Length Surveyed
303 ft.
Total Length
303.1 ft.
Structural Index
3
Structural Quick
3I21
Structural Rating
158
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
158
Pipe schematic from manhole 08 0042 to 08 0043
MH: 08 0042MH: 08 0043upstream0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Ends - 08 00432.1 ft. MGO - General Observation - SPALLING THROUGHOUT THE REACH, FROM 08 TO 04 O'CLOCK5.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish12 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"63.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"89.8 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: NO, 6"111.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"162.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"212.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"263.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"289.1 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES301.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start303.1 ft. MWL - Water Level, 10 %of cross sectional area303.1 ft. MWM - Water Mark, 20 %of cross sectional area303.1 ft. AMH - Downstream Manhole, Survey Begins - 08 0042

Observation photos (2)

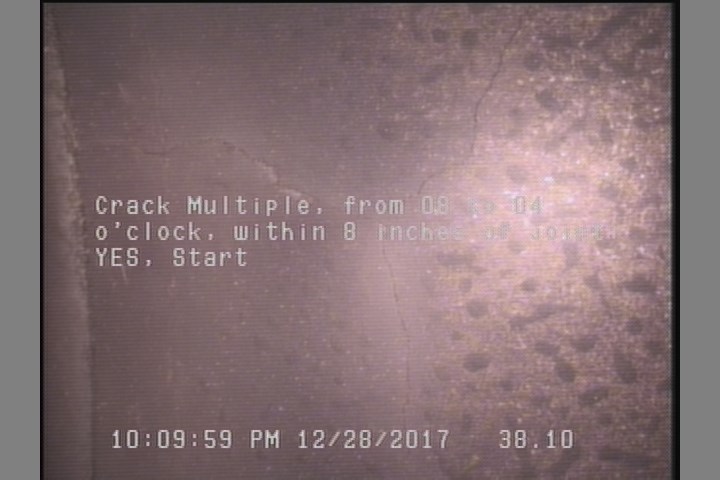

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

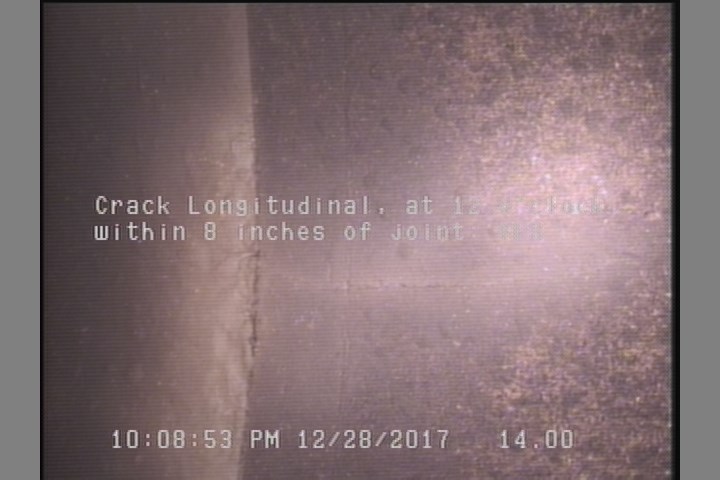

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    14 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

All inspections of P00045Work order 679275

Observations (16)

DistanceCodeObservation
303.1MGOCONNECTION AT MH 9 O'CLOCK
213.3TB—
90.4TFC—
303.1AMH08 0043
239.9TFC—
0MWL—
2CM—
0MWM—
39.3TFC—
191.7TF—
301MGOSPALLING THROUGHOUT THE REACH, FROM 08 TO 04 O'CLOCK
297.7CM—
14CL—
291.1TFC—
0AMH08 0042
140.9TF—

Properties (5)

additional_info
SC346772
custom_field_two
3
customer
LACSD
datetime
2017-12-28T22:04:31-08:00
sewer_category
Gravity
