Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 12, 2017, 07:41 AM

  • 18 0295_18 0556 _11122017_234153.mp4

Date
12/11/2017
W/O
674002
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00683
PipeID
P14124
Time
11:41 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5274
Sewer Name
18 LA MIRADA TRUNK, SECTS 1&2
City
SANTA FE SPRINGS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
31
Purpose
Routine Assessment
Project
WO_674002_TV18144_DEC2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
18 0295
Downstream MH
18 0556
Dir. of Survey
Downstream
Length Surveyed
314.3 ft.
Total Length
314.3 ft.
Structural Index
2
Structural Quick
312L
Structural Rating
129
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
129
Pipe schematic from manhole 18 0295 to 18 0556
MH: 18 0295MH: 18 0556downstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 02953 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"41 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"51.3 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES53.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"69.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"115.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"120 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"152.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"165.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"206.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"244.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"267.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES314.3 ft. AMH - Downstream Manhole, Survey Ends - 18 0556314.3 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK314.3 ft. MGO - General Observation - CONNECTION AT MH 10 O'CLOCK314.3 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish314.3 ft. MGO - General Observation - CONNECTION AT MH 7 O'CLOCK

Observation photos (3)

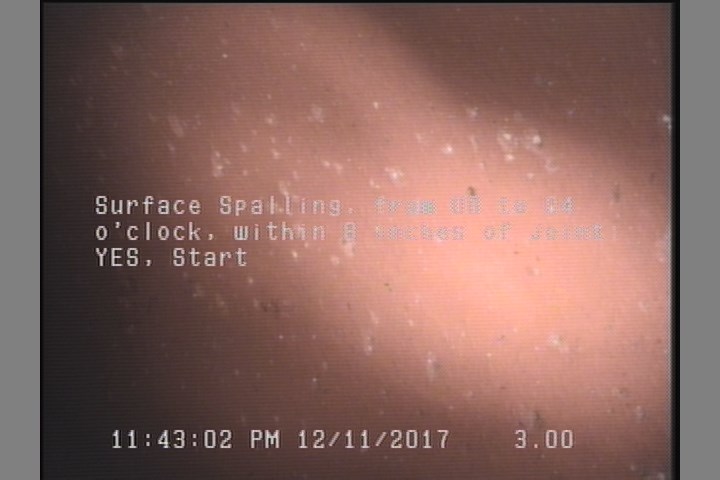

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

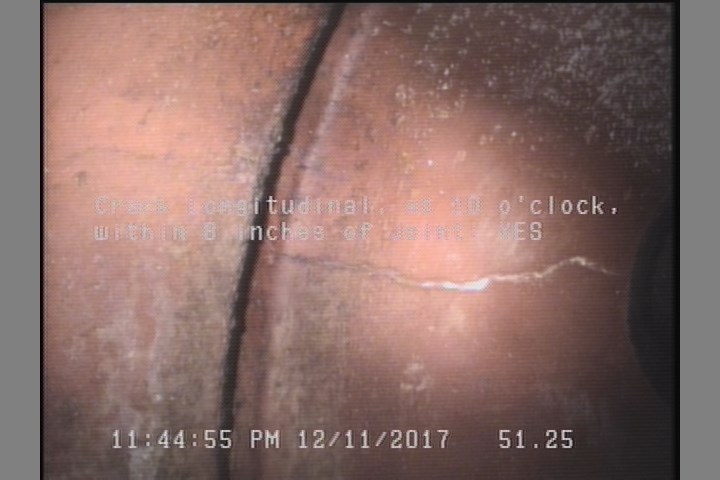

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    51.3 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

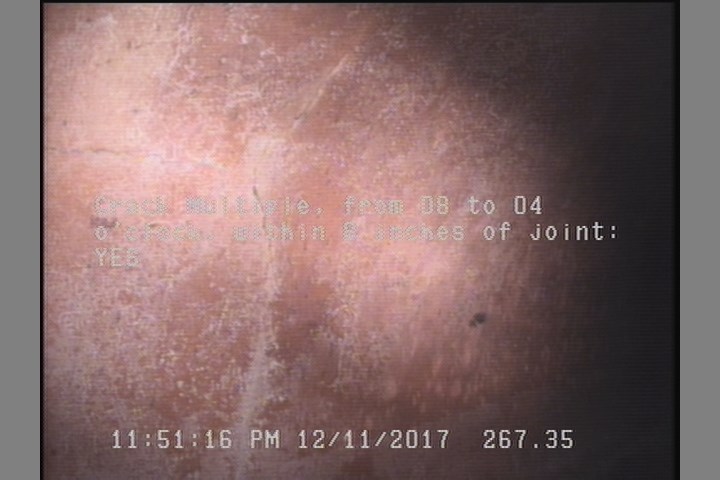

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    267.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P14124Work order 674002

Observations (21)

DistanceCodeObservation
3SSS—
51.3CL—
314.3AMH18 0556
206.9TF—
41TF—
314.3MGOCONNECTION AT MH 3 O'CLOCK
0MWM—
267.4CM—
0MWL—
115.5TFC—
165.2TFC—
244.5TF—
8TFC—
120TF—
314.3MGOCONNECTION AT MH 10 O'CLOCK
0AMH18 0295
152.8TFC—
314.3SSS—
69.9TFC—
53.2TF—
314.3MGOCONNECTION AT MH 7 O'CLOCK

Properties (5)

additional_info
SC346751
custom_field_two
3
customer
LACSD
datetime
2017-12-11T23:41:37-08:00
sewer_category
Gravity
