Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 12, 2017, 07:23 AM

  • 18 0296_18 0295 _11122017_232642.mp4

Date
12/11/2017
W/O
674002
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00683
PipeID
P14125
Time
11:23 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5274
Sewer Name
18 LA MIRADA TRUNK, SECTS 1&2
City
SANTA FE SPRINGS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
31
Purpose
Routine Assessment
Project
WO_674002_TV18144_DEC2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
18 0296
Downstream MH
18 0295
Dir. of Survey
Downstream
Length Surveyed
346.5 ft.
Total Length
346.5 ft.
Structural Index
3
Structural Quick
3L2K
Structural Rating
305
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
305
Pipe schematic from manhole 18 0296 to 18 0295
MH: 18 0296MH: 18 0295downstream0 ft. AMH - Upstream Manhole, Survey Begins - 18 02960 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 10 %of cross sectional area4.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"7.6 ft. CM - Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES9.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"21 ft. CM - Crack Multiple, from 08 to 10 o'clock, within 8 inches of joint: YES41.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start47.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"52 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"54.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start101.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"110 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"134.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"151.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"159.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"193 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"197.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"238.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"242.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"296.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"305.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"338.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"346.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish346.5 ft. AMH - Downstream Manhole, Survey Ends - 18 0295346.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (4)

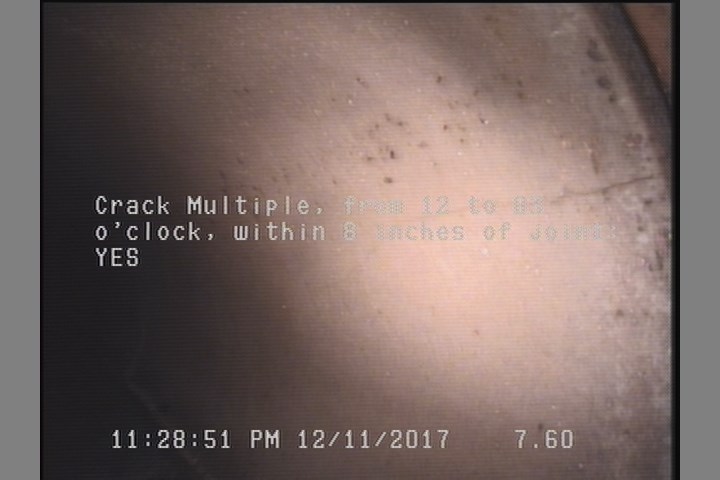

  • Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES

    7.6 ft. - Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES

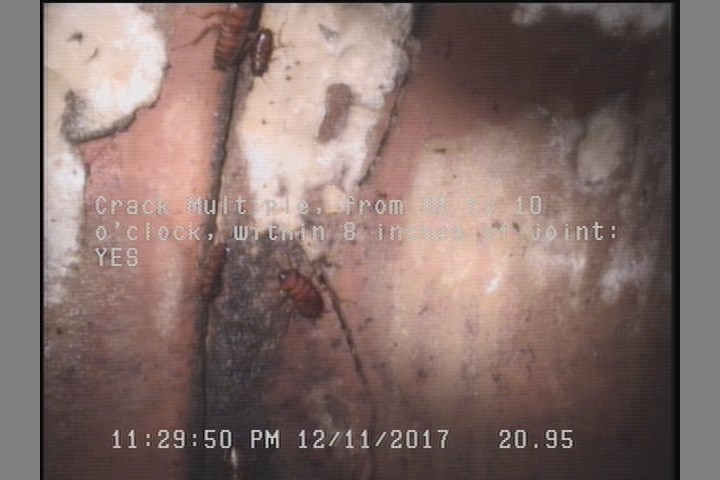

  • Crack Multiple, from 08 to 10 o'clock, within 8 inches of joint: YES

    21 ft. - Crack Multiple, from 08 to 10 o'clock, within 8 inches of joint: YES

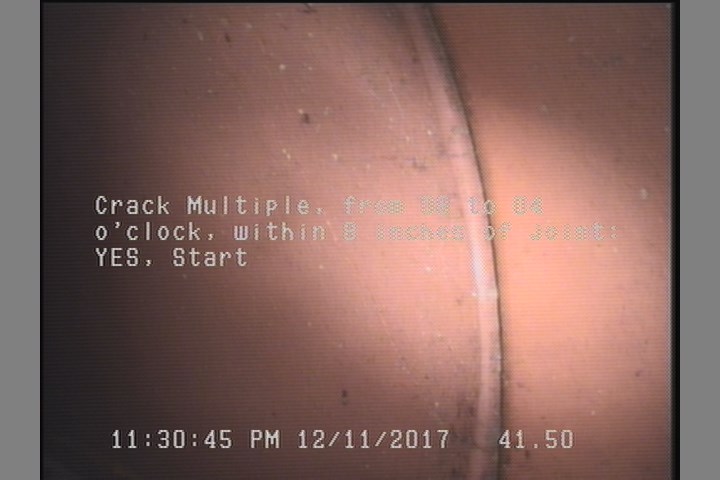

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    41.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

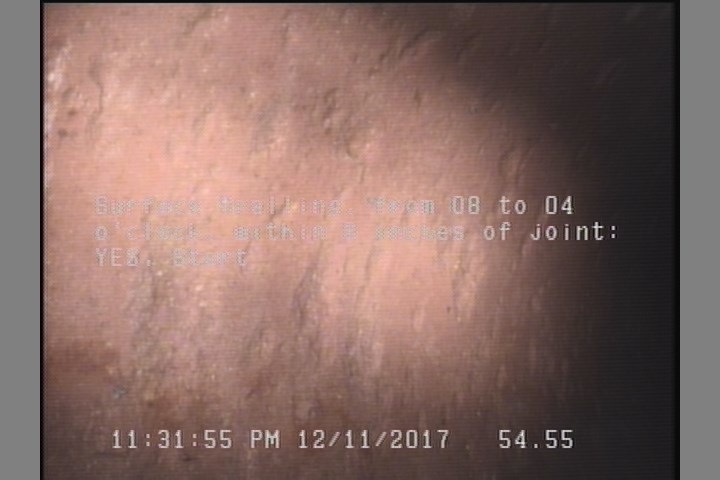

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    54.6 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P14125Work order 674002

Observations (26)

DistanceCodeObservation
305.2TFC—
346.5SSS—
9.3TFC—
7.6CM—
101.7TF—
296.7TFC—
0AMH18 0296
21CM—
193TFC—
54.6SSS—
0MWL—
238.8TFC—
52TF—
134.7TFC—
197.6TF—
346.5AMH18 0295
0MWM—
110TFC—
47.8TFC—
151.5TFC—
338.1TF—
159.9TFC—
242.9TF—
41.5CM—
4.9TF—
346.5CM—

Properties (5)

additional_info
SC346751
custom_field_two
3
customer
LACSD
datetime
2017-12-11T23:23:29-08:00
sewer_category
Gravity
