Wastewater/Activity/PacpInspection/1.0Dec 12, 2017, 09:00 AM
05 2106_05 2105_12122017_010109.mp4
- Date
- 12/12/2017
- W/O
- 673969
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00475
- PipeID
- P07248
- Time
- 1:00 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5246
- Sewer Name
- 05 LOMITA TRUNK EXTENSION RELIEF
- City
- TORRANCE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 32
- Purpose
- Routine Assessment
- Project
- WO_673969_TV05298_DEC2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 05 2106
- Downstream MH
- 05 2105
- Dir. of Survey
- Downstream
- Length Surveyed
- 504 ft.
- Total Length
- 504 ft.
- Structural Index
- 3
- Structural Quick
- 4134
- Structural Rating
- 18
- O&M Index
- 2
- O&M Quick
- 412S
- O&M Rating
- 204
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 222
Observation photos (4)

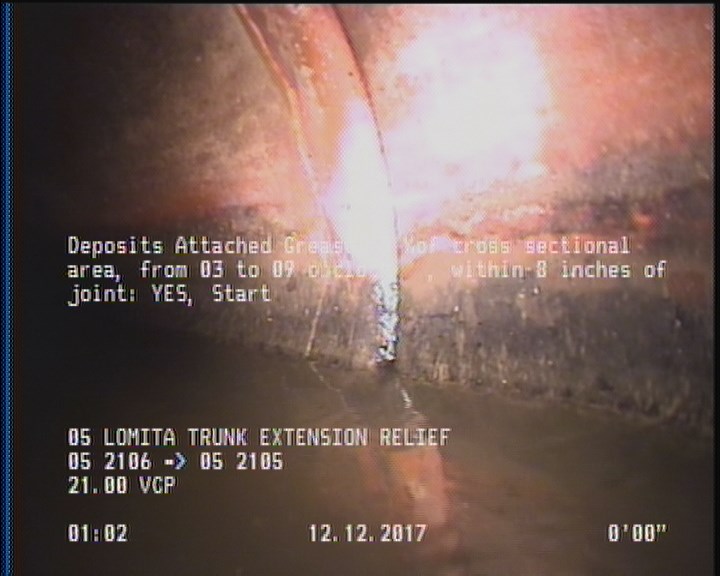

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

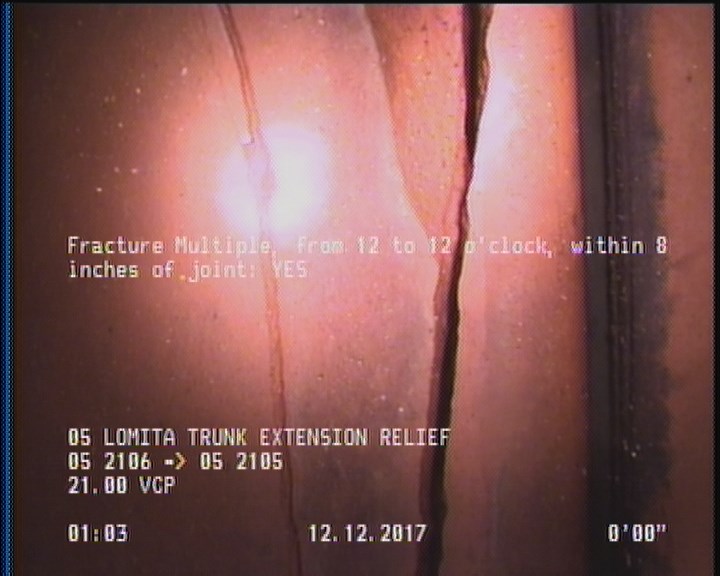

3 ft. - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

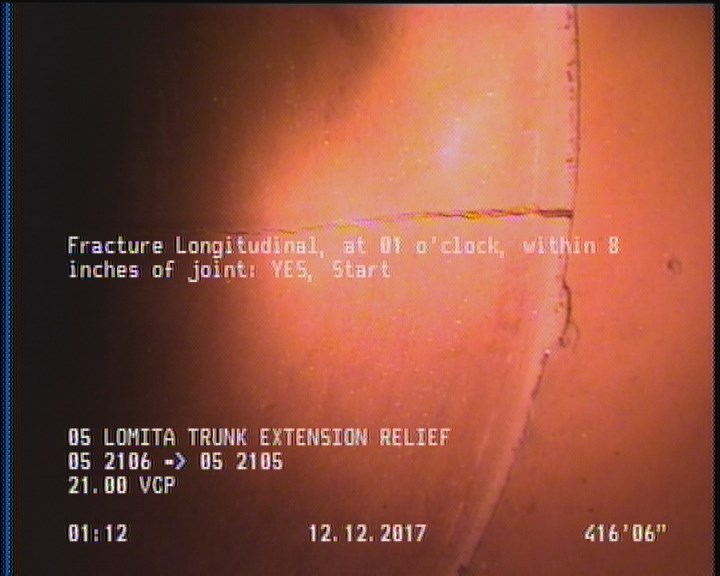

416.5 ft. - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES, Start

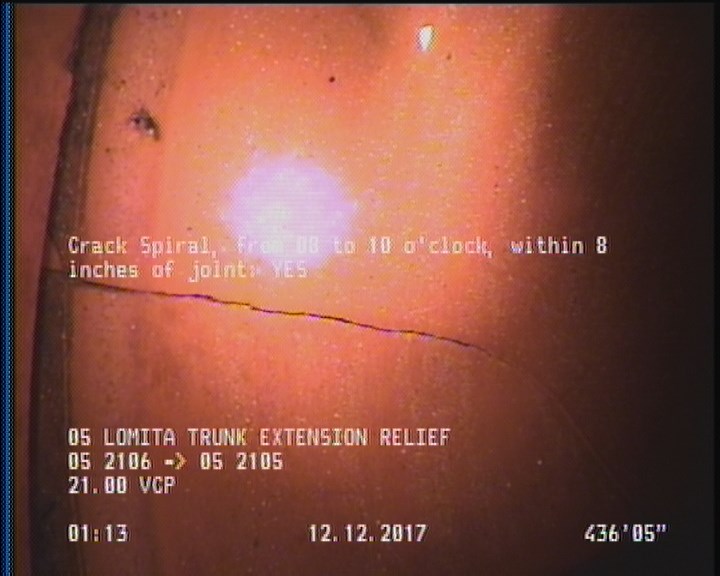

436.4 ft. - Crack Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 436.4 | FL | — |
| 0 | AMH | 05 2106 |
| 0 | MWL | — |
| 504 | DAGS | — |
| 3 | FM | — |
| 436.4 | CS | — |
| 504 | AMH | 05 2105 |
| 416.5 | FL | — |
| 0 | MWM | — |
| 2 | DAGS | — |
Properties (6)
- additional_info
- SC346417
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-12-12T01:00:32-08:00
- sewer_category
- Gravity
- year_laid
- 26382
