Wastewater/Activity/PacpInspection/1.0Dec 19, 2017, 09:50 AM
02 1843_02 1842_19122017_015043.mp4
- Date
- 12/19/2017
- W/O
- 679304
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00283
- PipeID
- P04188
- Time
- 1:50 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5282
- Sewer Name
- 02 MONTEBELLO INTERCEPTOR TRUNK, SECTS 1&2
- City
- MONTEBELLO
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_679304_TV02213_JAN2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 02 1843
- Downstream MH
- 02 1842
- Dir. of Survey
- Downstream
- Length Surveyed
- 513.3 ft.
- Total Length
- 513.3 ft.
- Structural Index
- 3
- Structural Quick
- 513S
- Structural Rating
- 515
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 515
Observation photos (4)

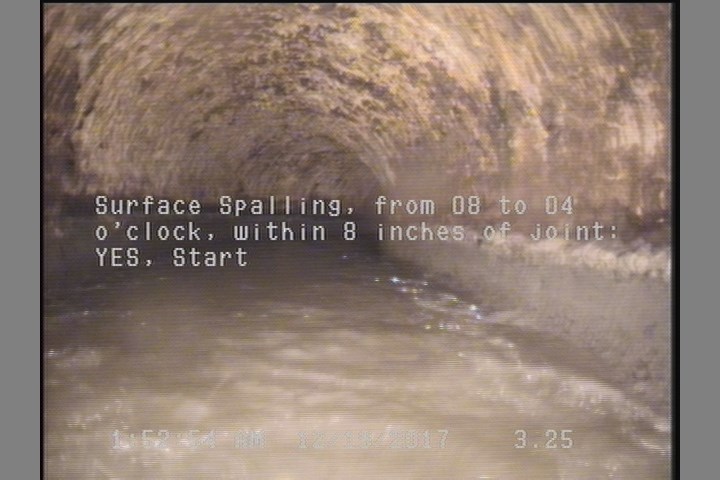

3.3 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

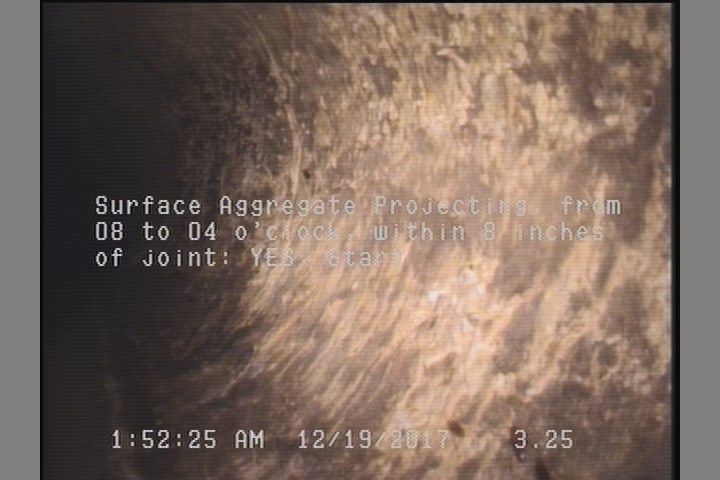

3.3 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

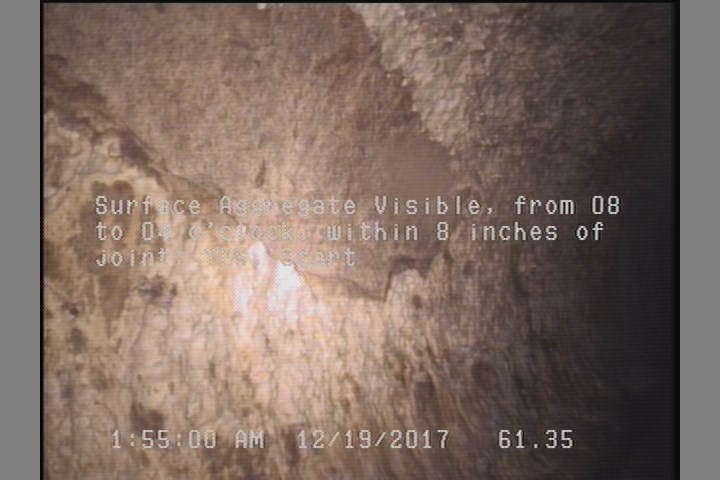

61.4 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

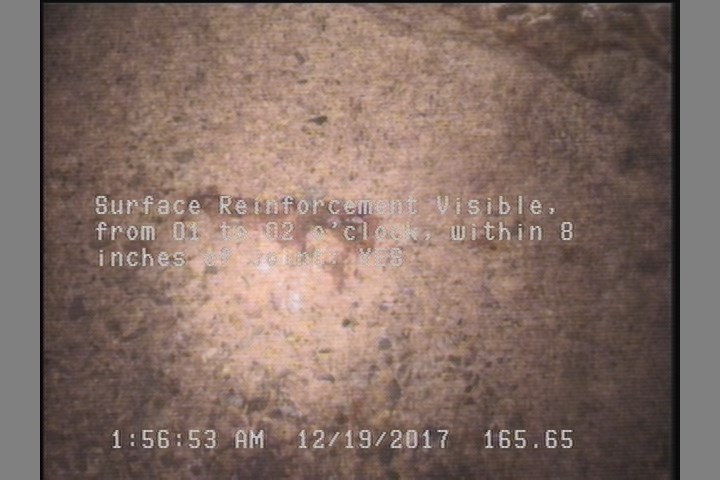

165.7 ft. - Surface Reinforcement Visible, from 01 to 02 o'clock, within 8 inches of joint: YES
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 165.7 | SRV | — |
| 513.2 | SSS | — |
| 61.4 | SAP | — |
| 513.3 | AMH | 02 1842 |
| 513.3 | SAV | — |
| 0 | MWM | — |
| 3.3 | MGO | MAG COAT |
| 0 | MWL | — |
| 61.4 | SAV | — |
| 0 | AMH | 02 1843 |
| 3.3 | SSS | — |
| 3.3 | SAP | — |
| 3.3 | TF | — |
Properties (4)
- additional_info
- SC346759
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-19T01:50:11-08:00
