Wastewater/Activity/PacpInspection/1.0Dec 19, 2017, 07:22 AM
02 2093_02 2092_18122017_233216.mp4
- Date
- 12/18/2017
- W/O
- 679304
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00283
- PipeID
- P04194
- Time
- 11:22 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5282
- Sewer Name
- 02 MONTEBELLO INTERCEPTOR TRUNK, SECTS 1&2
- City
- MONTEBELLO
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_679304_TV02213_JAN2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 02 2093
- Downstream MH
- 02 2092
- Dir. of Survey
- Downstream
- Length Surveyed
- 474.2 ft.
- Total Length
- 474.2 ft.
- Structural Index
- 3
- Structural Quick
- 3R2R
- Structural Rating
- 468
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 468
Observation photos (2)

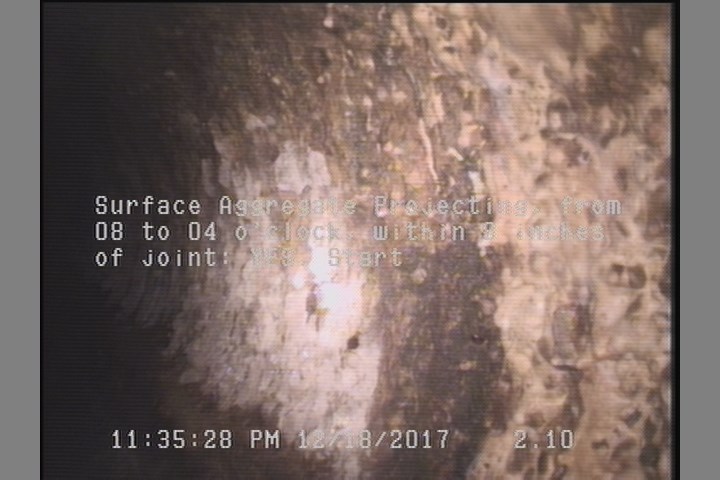

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

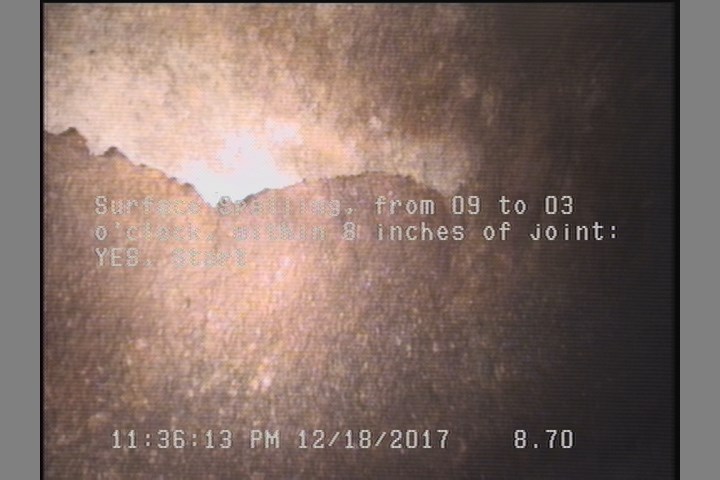

8.7 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 474.2 | SSS | — |
| 474.2 | AMH | 02 2092 |
| 2.1 | SAP | — |
| 0 | AMH | 02 2093 |
| 474.2 | SAP | — |
| 8.7 | SSS | — |
| 2.1 | MGO | MAG COAT |
| 0 | MWM | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC346759
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-12-18T23:22:47-08:00
- year_laid
- 30160
