Wastewater/Activity/PacpInspection/1.0Dec 20, 2017, 08:56 AM
02 1212_02 2139_20122017_005637.mp4
- Date
- 12/20/2017
- W/O
- 679300
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00284
- PipeID
- P04414
- Time
- 12:56 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5285
- Sewer Name
- 02 MONTEBELLO INTERCEPTOR TRUNK, SECTION 3
- City
- MONTEBELLO
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_679300_TV02296_JAN2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 02 1212
- Downstream MH
- 02 2139
- Dir. of Survey
- Downstream
- Length Surveyed
- 179.9 ft.
- Total Length
- 180 ft.
- Structural Index
- 4
- Structural Quick
- 5D3F
- Structural Rating
- 222
- O&M Index
- 3
- O&M Quick
- 3D00
- O&M Rating
- 69
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 291
Observation photos (3)

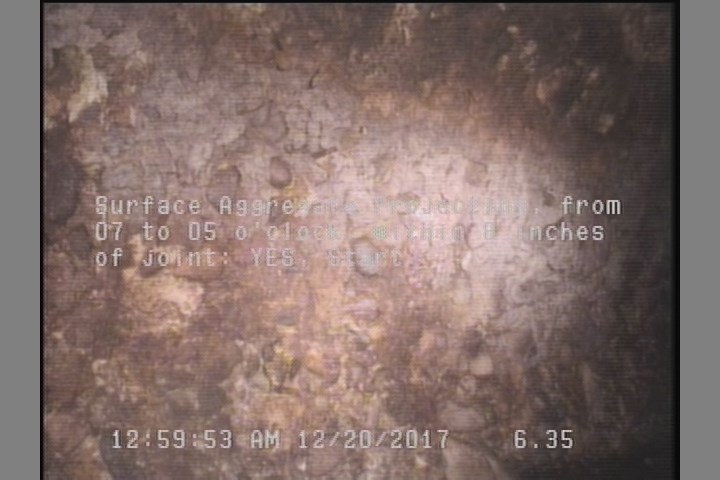

6.4 ft. - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

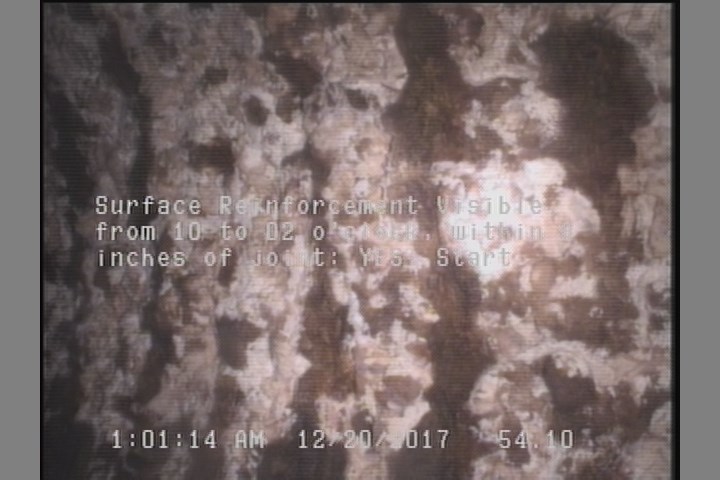

54.1 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

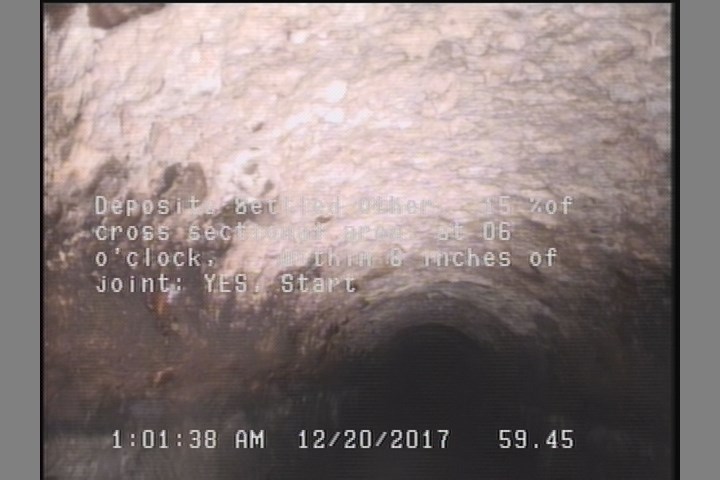

59.5 ft. - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | CONNECTION AT MH 6 O'CLOCK |
| 54.1 | SRV | — |
| 177 | SAP | — |
| 0 | AMH | 02 1212 |
| 6.4 | SAP | — |
| 173.6 | SRV | — |
| 173.6 | DSZ | — |
| 2.2 | MGO | MAG COAT |
| 0 | MWM | — |
| 180 | AMH | 02 2139 |
| 180 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 59.5 | DSZ | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC346762
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-12-20T00:56:28-08:00
- year_laid
- 30538
