Wastewater/Activity/PacpInspection/1.0Dec 20, 2017, 09:13 AM
02 2138_02 2137 _20122017_011405.mp4
- Date
- 12/20/2017
- W/O
- 679300
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00284
- PipeID
- P04412
- Time
- 1:13 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5285
- Sewer Name
- 02 MONTEBELLO INTERCEPTOR TRUNK, SECTION 3
- City
- MONTEBELLO
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_679300_TV02296_JAN2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 02 2138
- Downstream MH
- 02 2137
- Dir. of Survey
- Downstream
- Length Surveyed
- 308.8 ft.
- Total Length
- 308.8 ft.
- Structural Index
- 3
- Structural Quick
- 3K2I
- Structural Rating
- 279
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 279
Observation photos (2)

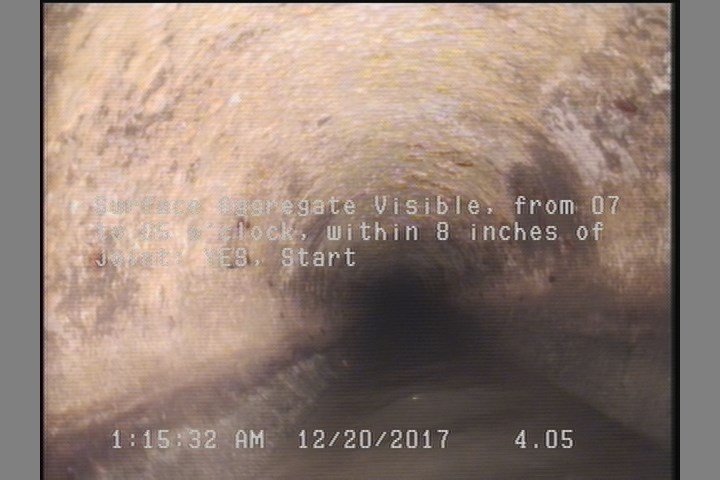

4.1 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

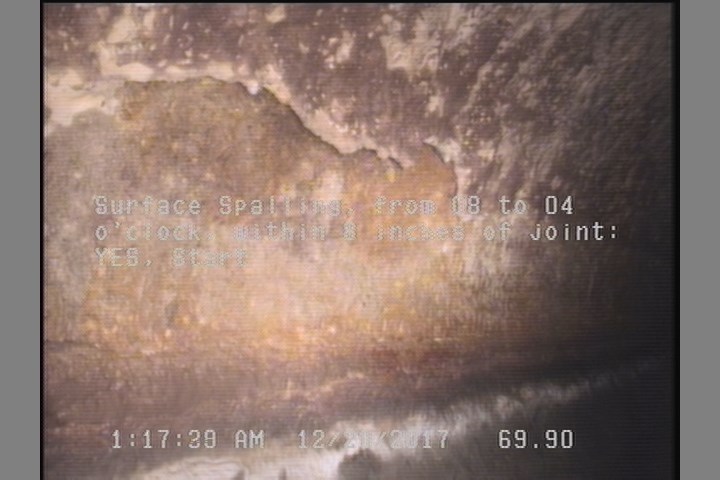

69.9 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 2.5 | MGO | MAG COAT |
| 0 | AMH | 02 2138 |
| 308.8 | SSS | — |
| 4.1 | SAV | — |
| 0 | MWM | — |
| 69.9 | SSS | — |
| 0 | MWL | — |
| 308.8 | SAV | — |
Properties (5)
- additional_info
- SC346762
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-20T01:13:59-08:00
- year_laid
- 30538
