Wastewater/Activity/PacpInspection/1.0Dec 19, 2017, 11:00 AM
02 2422_02 2105 _19122017_030051.mp4
- Date
- 12/19/2017
- W/O
- 679270
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00283
- PipeID
- P04207
- Time
- 3:00 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5283
- Sewer Name
- 02 MONTEBELLO INTERCEPTOR TRUNK, SECTS 1&2
- City
- MONTEBELLO
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_679270_TV02214_JAN2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 02 2422
- Downstream MH
- 02 2105
- Dir. of Survey
- Downstream
- Length Surveyed
- 23.3 ft.
- Total Length
- 23.3 ft.
- Structural Index
- 3
- Structural Quick
- 5535
- Structural Rating
- 48
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 48
Observation photos (5)

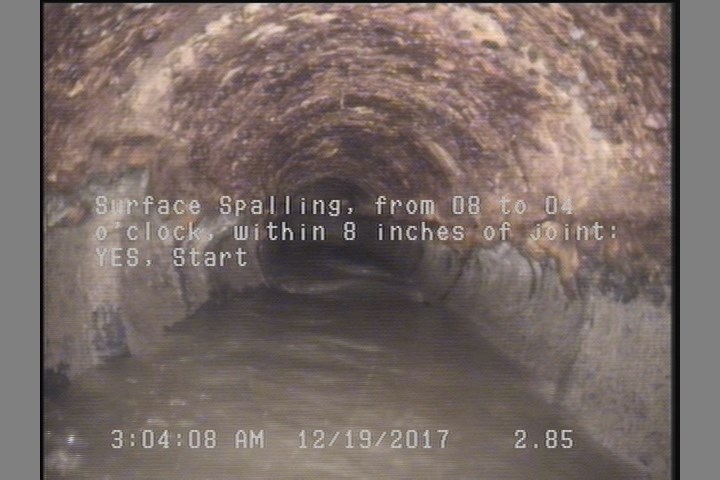

2.9 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

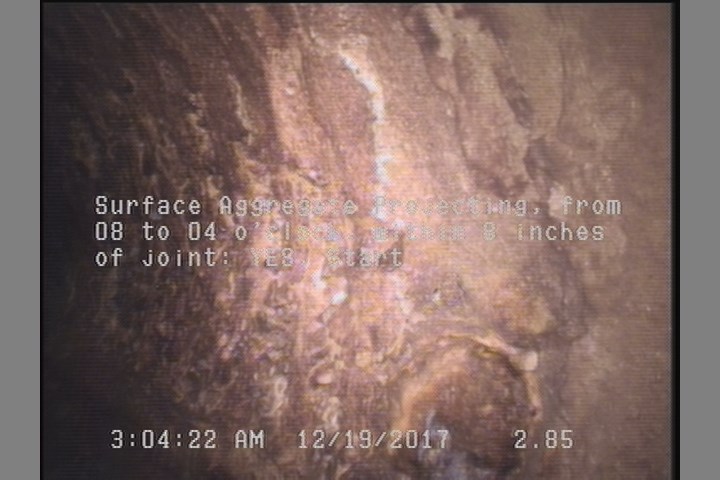

2.9 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

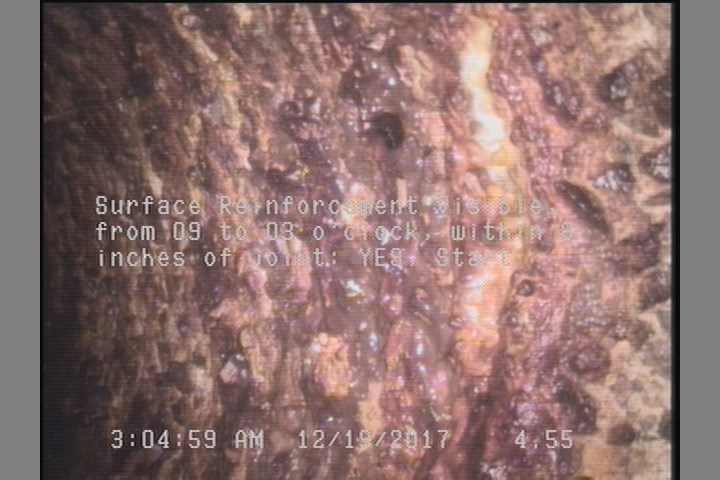

4.6 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

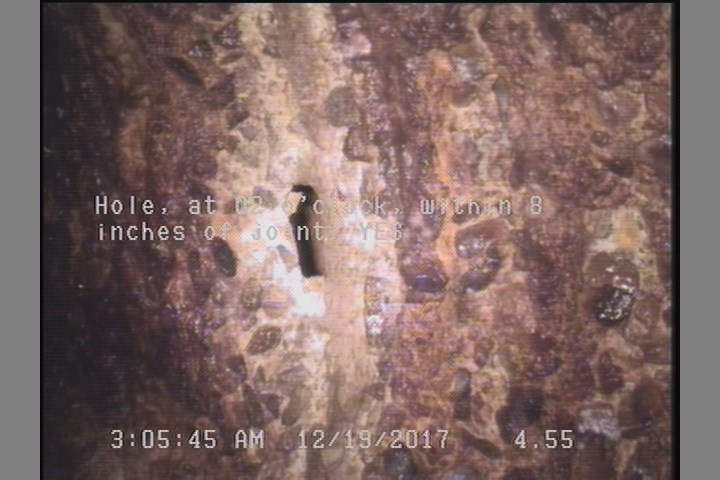

4.6 ft. - Hole, at 02 o'clock, within 8 inches of joint: YES

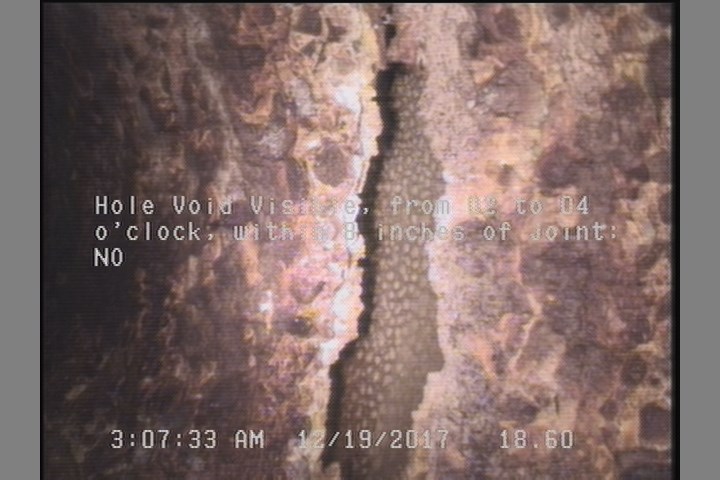

18.6 ft. - Hole Void Visible, from 02 to 04 o'clock, within 8 inches of joint: NO
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 18.6 | HVV | — |
| 0 | MWL | — |
| 23.3 | SRV | — |
| 23.3 | AMH | 02 2105 |
| 0 | AMH | 02 2422 |
| 23.3 | SAP | — |
| 4.6 | SRV | — |
| 23.3 | SSS | — |
| 0 | MWM | — |
| 2.9 | SSS | — |
| 2.9 | SAP | — |
| 4.6 | H | — |
Properties (5)
- additional_info
- SC346760
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2017-12-19T03:00:26-08:00
- year_laid
- 30160
