Wastewater/Activity/PacpInspection/1.0Dec 20, 2017, 07:44 AM
G 0094_E 0020_12192017_234814.mp4
- Date
- 12/19/2017
- W/O
- 678030
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00027
- PipeID
- P07607
- Time
- 11:44 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5252
- Sewer Name
- E JOINT OUTFALL E - UNIT 1
- City
- COMPTON
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_678030_DISTRICT01_DEC2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 42 in.
- Width
- 42 in.
- Upstream MH
- G 0094
- Downstream MH
- E 0020
- Dir. of Survey
- Downstream
- Length Surveyed
- 14.7 ft.
- Total Length
- 14.7 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (3)

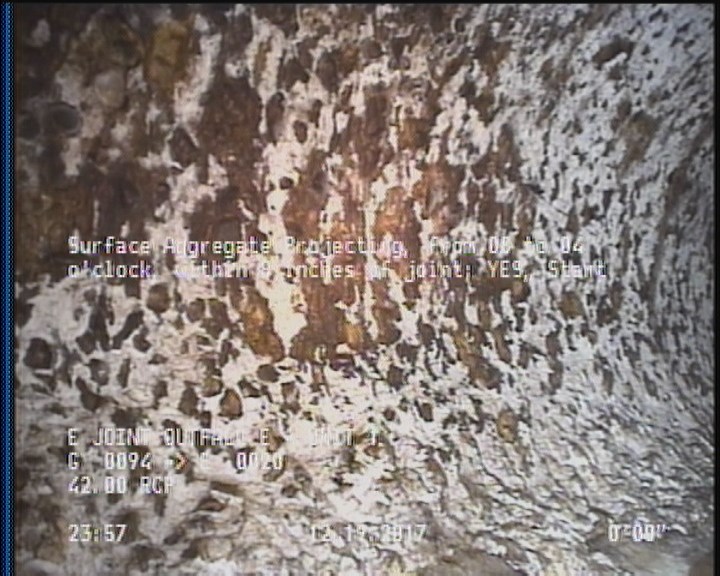

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

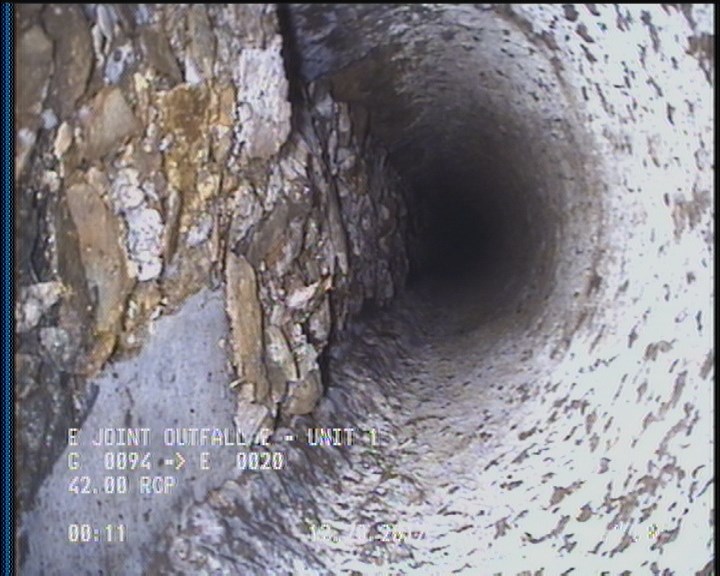

10 ft. - Deposits Settled Other, 20 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS

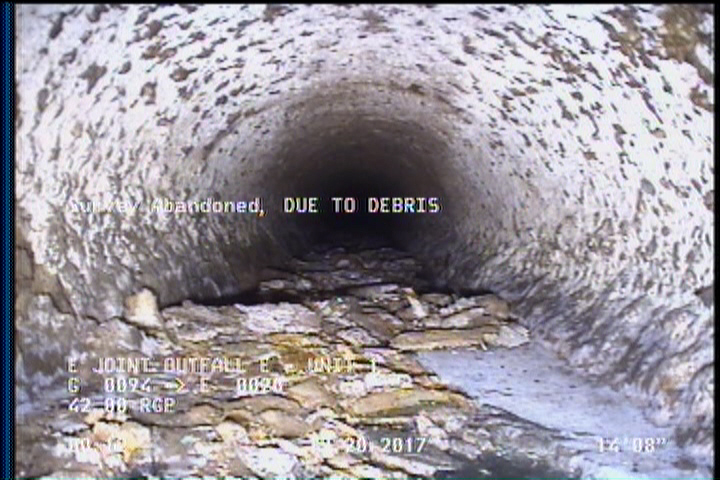

14.7 ft. - Survey Abandoned - DUE TO DEBRIS
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 14.7 | SAP | — |
| 14.7 | MSA | DUE TO DEBRIS |
| 0 | MWL | — |
| 2 | MGO | MAGNESIUM HYDROXIDE COATING, 9 TO 3 OCLOCK, 40% INTACT |
| 0 | AMH | G 0094 |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 10 | DSZ | DEBRIS |
| 14.7 | DSZ | — |
| 2 | SAP | — |
Properties (4)
- additional_info
- SC346424
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-12-19T23:44:45-08:00
