Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 28, 2017, 07:31 AM

  • 20 0418_20 0417_12272017_233121.mp4

Date
12/27/2017
W/O
678029
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00749
PipeID
P19366
Time
11:31 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5356
Sewer Name
20 10TH STREET EAST CONNECTION TRUNK
City
PALMDALE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 20
Page No.
07
Purpose
Routine Assessment
Project
WO_678029_DISTRICT20_DEC2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
20 0418
Downstream MH
20 0417
Dir. of Survey
Downstream
Length Surveyed
351 ft.
Total Length
351 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
2
O&M Quick
2M00
O&M Rating
138
Overall Index
2
Overall Quick
—
Overall Rating
144
Pipe schematic from manhole 20 0418 to 20 0417
MH: 20 0418MH: 20 0417downstream0 ft. AMH - Upstream Manhole, Survey Begins - 20 04180 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start14.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"28.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"44.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"85.4 ft. CM - Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES121.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"144.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"178.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"180.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES193.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"212.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"250.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"253.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"290.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"349.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish351 ft. AMH - Downstream Manhole, Survey Ends - 20 0417

Observation photos (3)

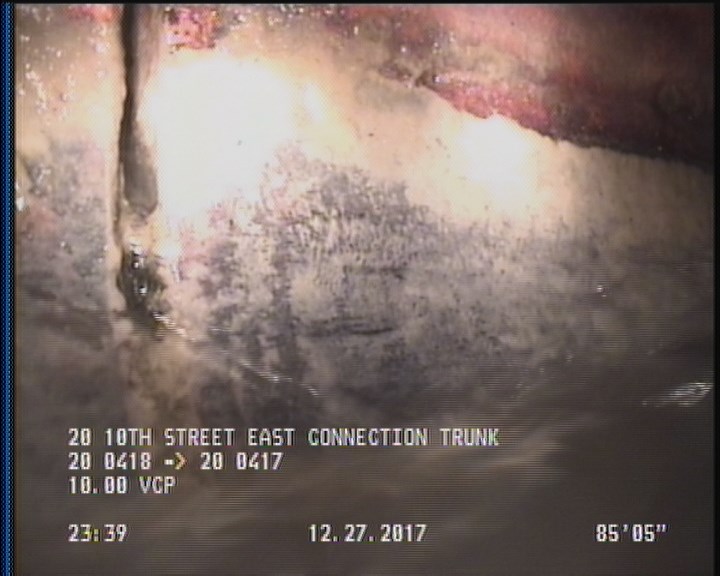

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

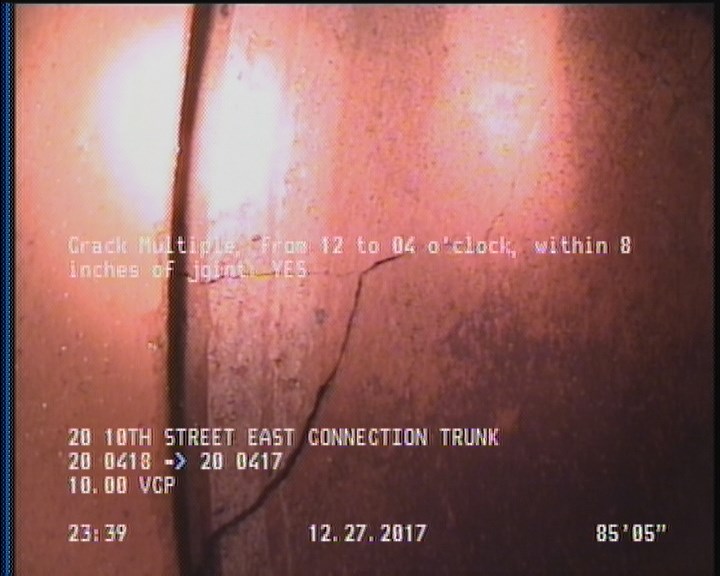

  • Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES

    85.4 ft. - Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES

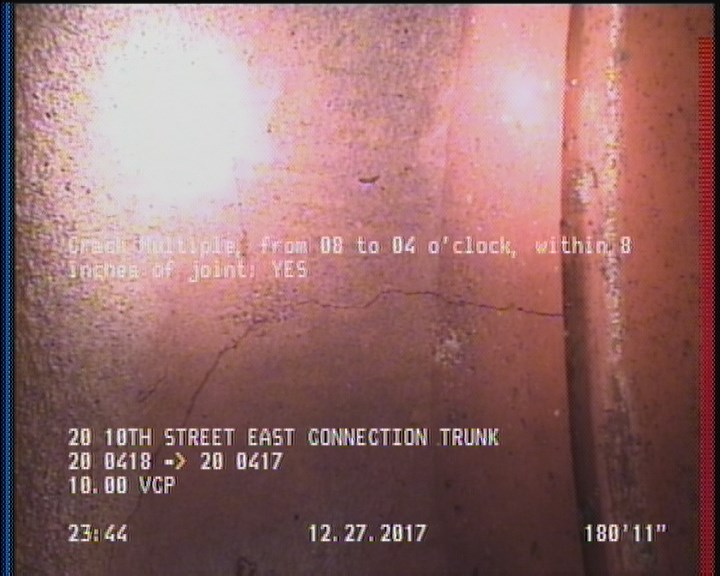

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    180.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P19366Work order 678029

Observations (19)

DistanceCodeObservation
144.3TFC—
85.4CM—
14.5TF—
2DAGS—
250.6TFC—
253.2TFC—
0AMH20 0418
178.7TFA—
290.6TFA—
351AMH20 0417
44.5TFA—
0MWL—
193.9TF—
180.9CM—
212.1TFC—
121.6TFC—
28.2TFA—
0MWM—
349.2DAGS—

Properties (4)

additional_info
SC346433
custom_field_two
2
customer
LACSD
datetime
2017-12-27T23:31:16-08:00
