Wastewater/Activity/PacpInspection/1.0Dec 12, 2017, 10:34 AM
05 2102_05 2101_12122017_023524.mp4
- Date
- 12/12/2017
- W/O
- 674078
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00475
- PipeID
- P07244
- Time
- 2:34 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5245
- Sewer Name
- 05 LOMITA TRUNK EXTENSION RELIEF
- City
- TORRANCE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 32
- Purpose
- Routine Assessment
- Project
- WO_674078_TV05201_DEC2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 05 2101
- Downstream MH
- 05 2102
- Dir. of Survey
- Upstream
- Length Surveyed
- 457.9 ft.
- Total Length
- 457.9 ft.
- Structural Index
- 4
- Structural Quick
- 4934
- Structural Rating
- 48
- O&M Index
- 2
- O&M Quick
- 2Q00
- O&M Rating
- 184
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 232
Observation photos (4)

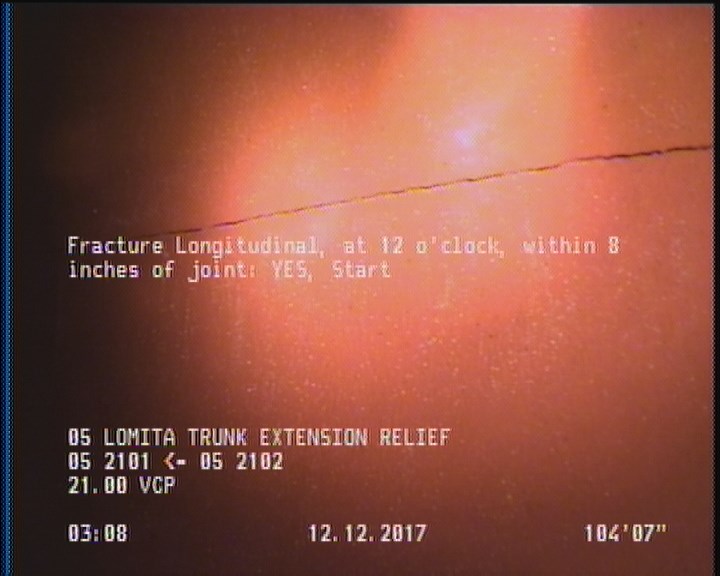

104.6 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

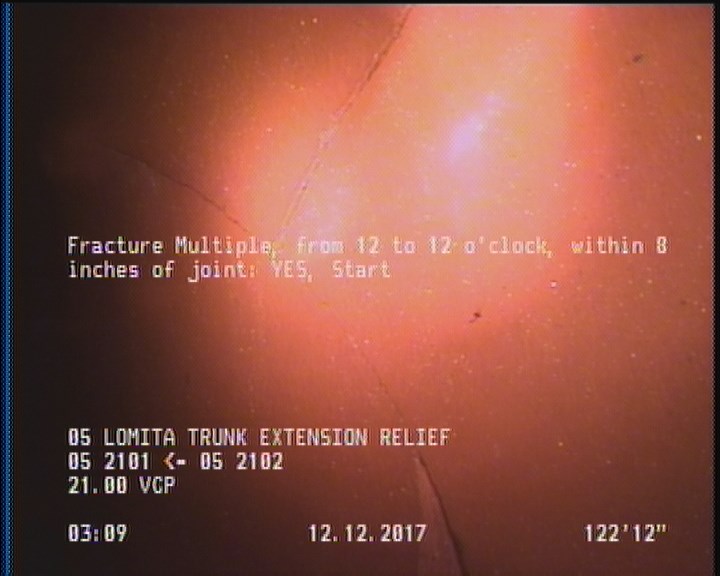

123 ft. - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES, Start

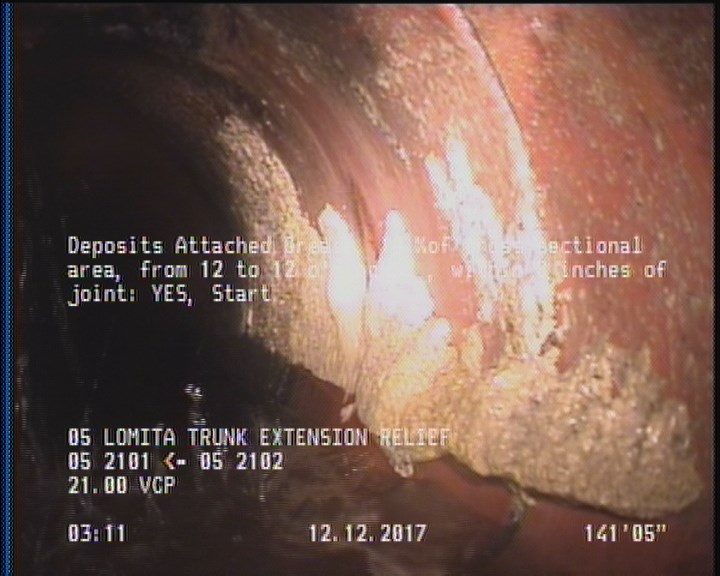

141.4 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 12 to 12 o'clock, , within 8 inches of joint: YES, Start

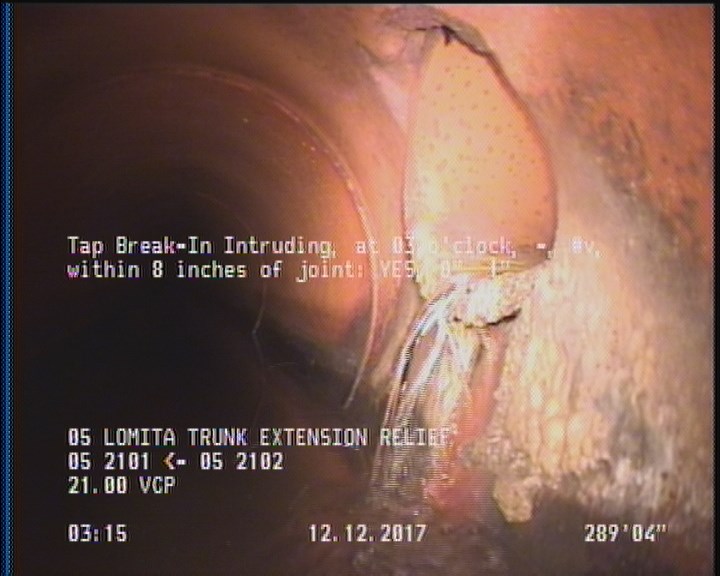

289.3 ft. - Tap Break-In Intruding, at 03 o'clock, -, #v, within 8 inches of joint: YES, 8", 1"
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 104.6 | FL | — |
| 141.4 | DAGS | — |
| 123 | FM | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | AMH | 05 2101 |
| 141.4 | DAGS | — |
| 456.1 | DAGS | — |
| 289.3 | TBI | — |
| 457.9 | AMH | 05 2102 |
| 2 | DAGS | — |
| 144.7 | TBA | — |
| 389 | TBA | — |
| 165.7 | FM | — |
| 123 | FL | — |
Properties (5)
- additional_info
- SC346416
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-12T02:34:24-08:00
- year_laid
- 26382
