Wastewater/Activity/PacpInspection/1.0Dec 21, 2017, 09:46 AM
D 0108_D 0107 _12212017_010823.mp4
- Date
- 12/21/2017
- W/O
- 674040
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00156
- PipeID
- P10014
- Time
- 1:46 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5255
- Sewer Name
- D JOINT OUTFALL D - UNIT 6
- City
- LAWNDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_674040_TV05171_DEC2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Width
- 33 in.
- Upstream MH
- D 0108
- Downstream MH
- D 0107
- Dir. of Survey
- Downstream
- Length Surveyed
- 550.1 ft.
- Total Length
- 550.1 ft.
- Structural Index
- 3
- Structural Quick
- 3T2T
- Structural Rating
- 531
- O&M Index
- 2
- O&M Quick
- 3C2U
- O&M Rating
- 284
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 815
Observation photos (3)

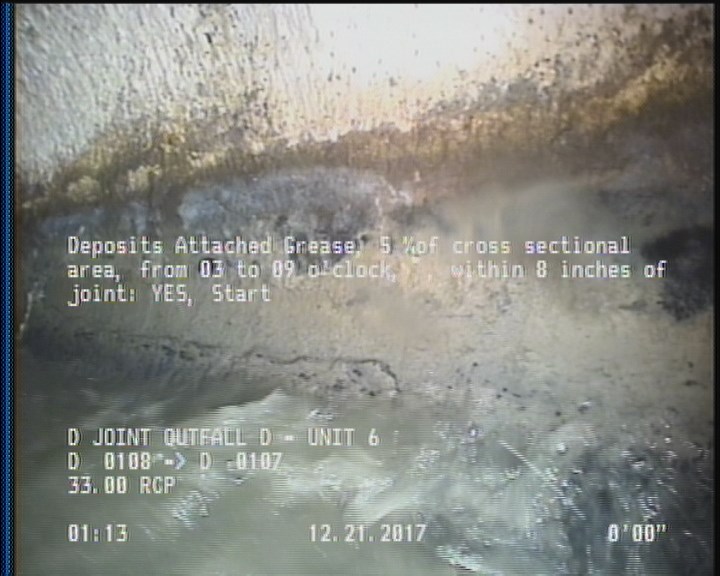

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

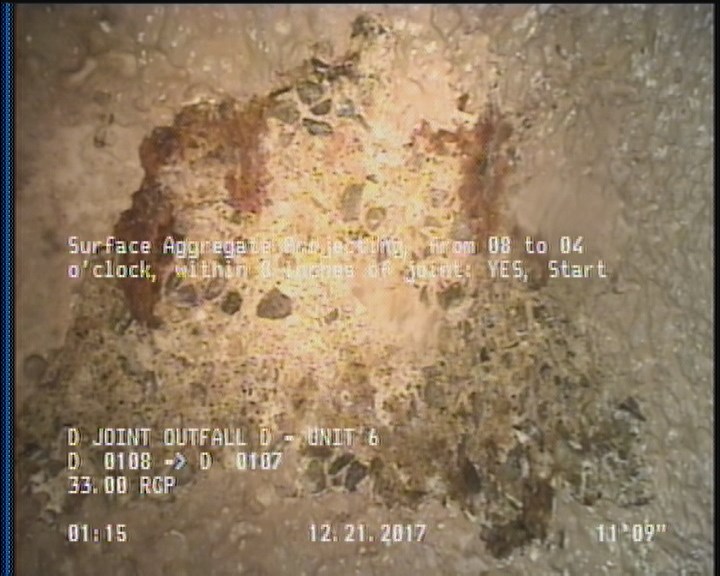

11.8 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

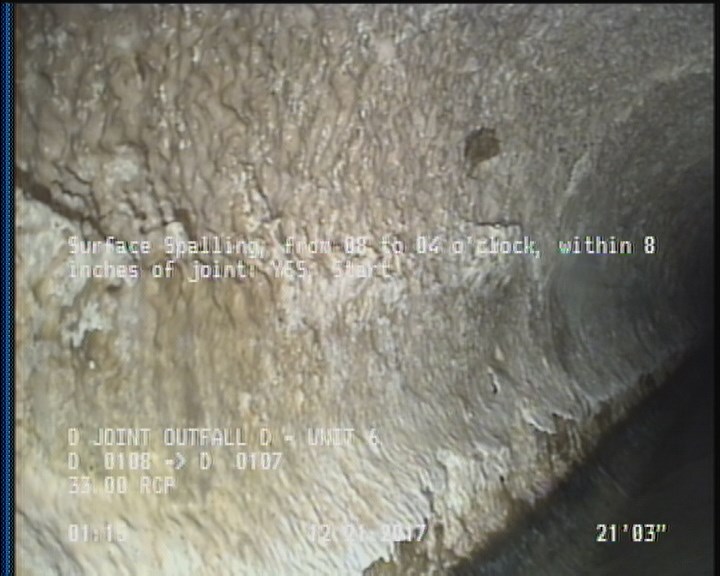

21.2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 548.4 | DSZ | — |
| 548.4 | SAP | — |
| 21.2 | SSS | — |
| 436.7 | DSZ | DEBRIS |
| 11.8 | SAP | — |
| 2 | DAGS | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 AND 9 O'CLOCK |
| 550.1 | MGO | ACTIVE CONNECTION AT MH 3 AND 9 O'CLOCK |
| 0 | MWM | — |
| 0 | MWL | — |
| 548.4 | DAGS | — |
| 548.4 | SSS | — |
| 550.1 | AMH | D 0107 |
| 2 | MGO | MAG COATING 80% |
| 0 | AMH | D 0108 |
Properties (4)
- additional_info
- SC346427
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-12-21T01:46:20-08:00
