Wastewater/Activity/PacpInspection/1.0Dec 22, 2017, 11:12 AM
D 0158_D 0095 _12222017_030111.mp4
- Date
- 12/22/2017
- W/O
- 674040
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00156
- PipeID
- P09999
- Time
- 3:12 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5292
- Sewer Name
- D JOINT OUTFALL D - UNIT 6
- City
- LAWNDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_674040_TV05171_DEC2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 39 in.
- Width
- 39 in.
- Upstream MH
- D 0158
- Downstream MH
- D 0095
- Dir. of Survey
- Downstream
- Length Surveyed
- 278.5 ft.
- Total Length
- 278.5 ft.
- Structural Index
- 3
- Structural Quick
- 3I2E
- Structural Rating
- 209
- O&M Index
- 3
- O&M Quick
- 3I00
- O&M Rating
- 147
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 356
Observation photos (4)
21.3 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

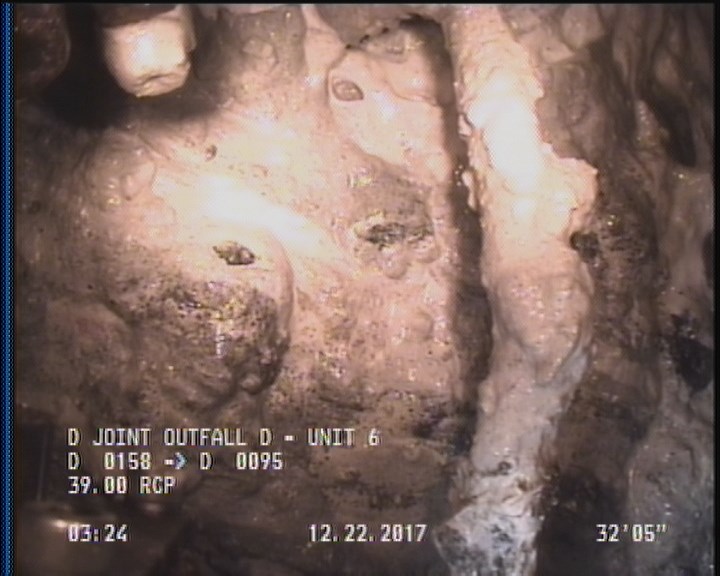

32.4 ft. - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - SLUDGE

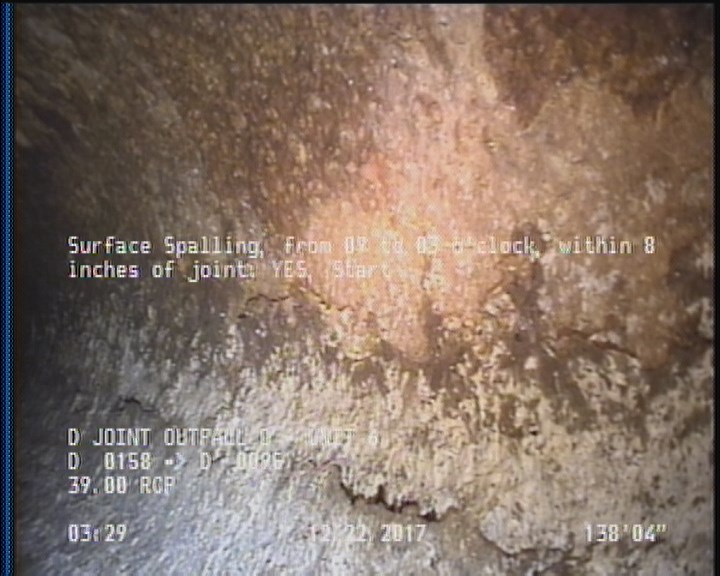

138.4 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

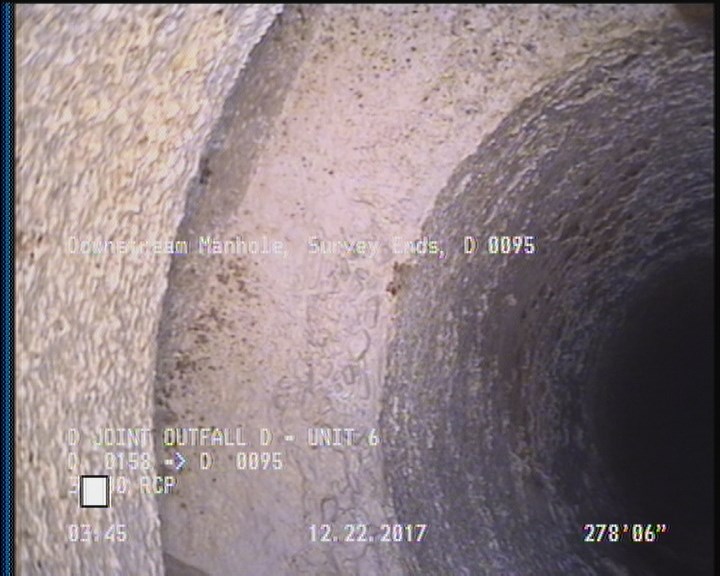

278.5 ft. - Downstream Manhole, Survey Ends - D 0095
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 278.5 | SAP | — |
| 278.5 | DSZ | — |
| 0 | MWL | — |
| 0 | MGO | CONNECTION AT MH 8 O'CLOCK |
| 0 | AMH | D 0158 |
| 2 | MGO | MAG COATING 80% |
| 138.4 | SSS | — |
| 21.3 | SAP | — |
| 278.5 | AMH | D 0095 |
| 32.4 | DSZ | SLUDGE |
| 278.5 | SSS | — |
Properties (4)
- additional_info
- SC346430
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-12-22T03:12:09-08:00
