Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 21, 2017, 12:10 PM

  • D 0236_D 0098 _12212017_041101.mp4

Date
12/21/2017
W/O
674040
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00156
PipeID
P10005
Time
4:10 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5255
Sewer Name
D JOINT OUTFALL D - UNIT 6
City
LAWNDALE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
17
Purpose
Routine Assessment
Project
WO_674040_TV05171_DEC2017
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Width
33 in.
Upstream MH
D 0236
Downstream MH
D 0098
Dir. of Survey
Downstream
Length Surveyed
209.8 ft.
Total Length
209.8 ft.
Structural Index
3
Structural Quick
3G2G
Structural Rating
205
O&M Index
3
O&M Quick
413G
O&M Rating
209
Overall Index
3
Overall Quick
—
Overall Rating
414
Pipe schematic from manhole D 0236 to D 0098
MH: D 0236MH: D 0098downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - D 02362 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2.2 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS45.3 ft. MGO - General Observation - MAG COATING 80%207.3 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish207.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish207.3 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish207.3 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish209.8 ft. AMH - Downstream Manhole, Survey Ends - D 0098209.8 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK

Observation photos (4)

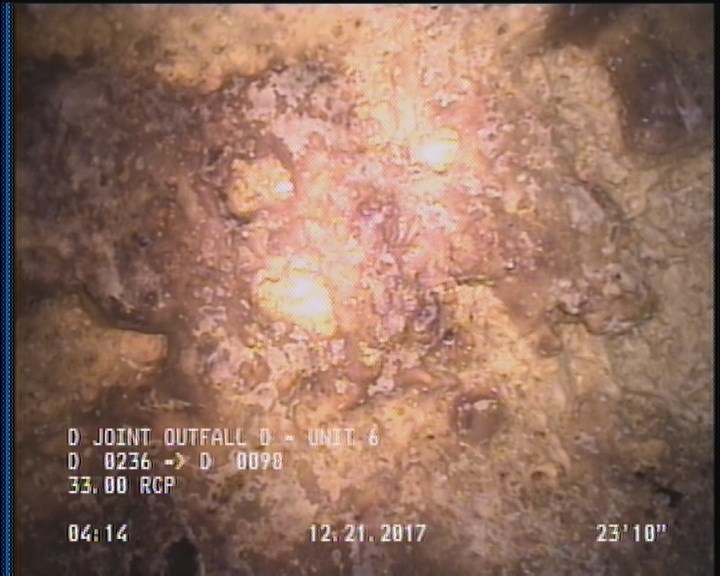

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

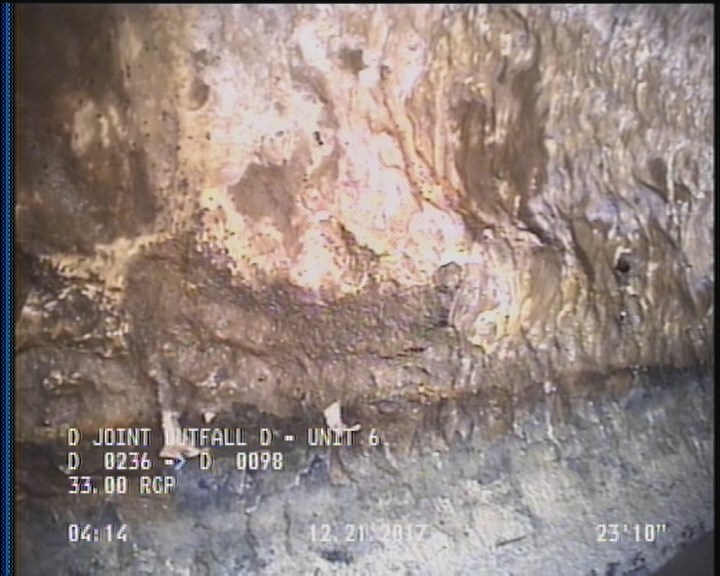

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

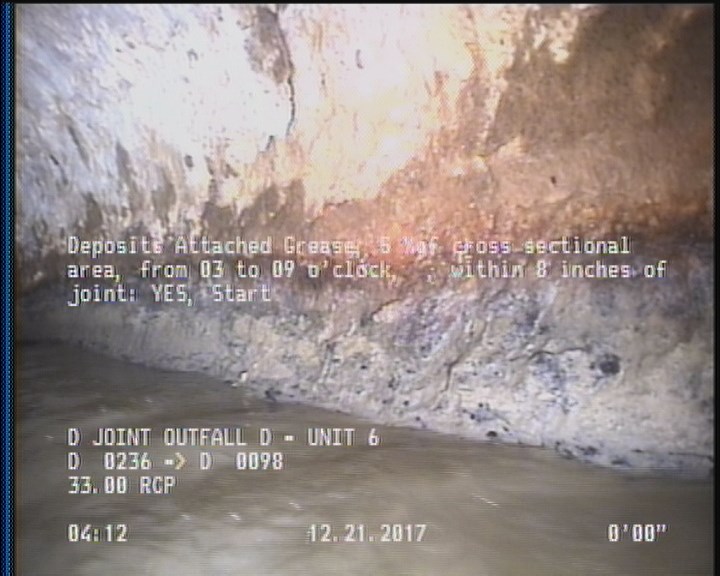

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

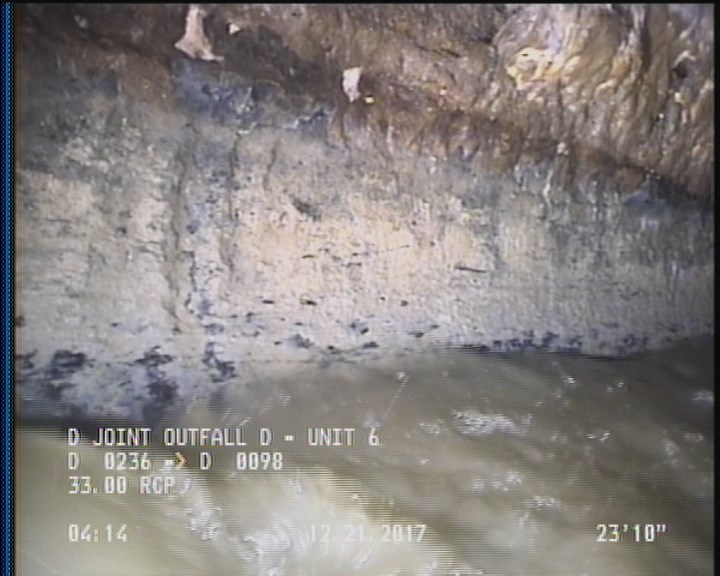

  • Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS

    2.2 ft. - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS

All inspections of P10005Work order 674040

Observations (15)

DistanceCodeObservation
0MWM—
2SAP—
45.3MGOMAG COATING 80%
0MWL—
207.3DSZ—
209.8AMHD 0098
207.3DAGS—
207.3SSS—
207.3SAP—
209.8MGOACTIVE CONNECTION AT MH 3 O'CLOCK
2SSS—
2.2DSZDEBRIS
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
0AMHD 0236
2DAGS—

Properties (4)

additional_info
SC346427
custom_field_two
2
customer
LACSD
datetime
2017-12-21T04:10:09-08:00
