Wastewater/Activity/PacpInspection/1.0Jan 6, 2018, 09:05 AM
Section#12_05 0281_05 0393__162018__G6907.mp4
- Date
- 01/06/2018
- W/O
- 0682489
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00498
- PipeID
- P05489
- Time
- 1:05 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6907
- Sewer Name
- 05 OAK STREET-CENTER AVENUE TRUNK
- City
- INGLEWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 10
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180105MDM_OAK_STREET_CENTER_AVENUE_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- 05 0281
- Downstream MH
- 05 0393
- Dir. of Survey
- Downstream
- Length Surveyed
- 7.4 ft.
- Total Length
- 7.4 ft.
- Structural Index
- 3
- Structural Quick
- 3222
- Structural Rating
- 10
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (2)

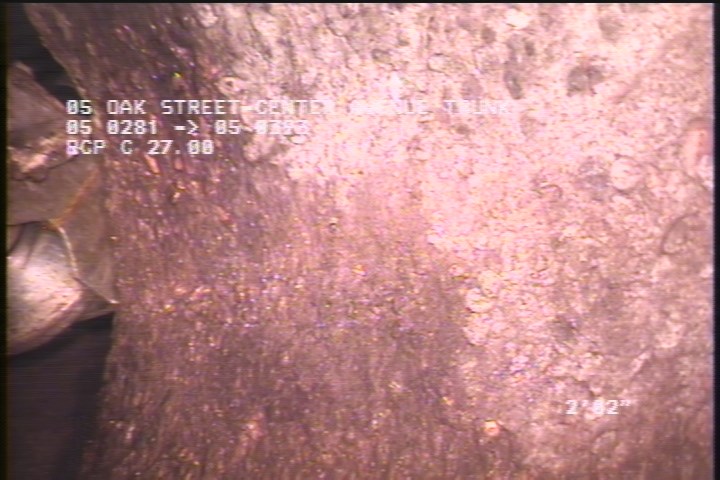

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING CONCRETE

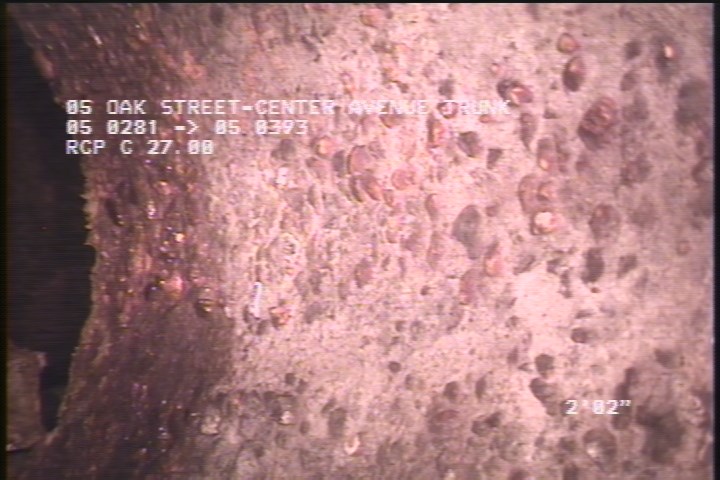

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 7.1 | MGO | MH CONN 9:00 ACTIVE OUTGOING |
| 7.1 | SAP | SEVERE AGG |
| 0 | MWL | — |
| 0 | AMH | 4:00AM |
| 7.1 | MGO | MH CONN ACTIVE 3:00 INCOMING |
| 2 | SSS | BLISTERING CONCRETE |
| 7.4 | AMH | 4:05AM |
| 0 | MGO | MH CONN 3:00 ACTIVE |
| 0 | MGO | MH CONN 9:00 ACTIVE |
| 2 | SAP | SEVERE AGG |
| 7.1 | SSS | BLISTERING CONCRETE |
| 0 | MWM | — |
Properties (4)
- custom_field_three
- SEVERE AGG PROJECTING
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-01-06T01:05:19-08:00
