Wastewater/Activity/PacpInspection/1.0Jan 5, 2018, 09:05 AM
Section#2_05 0318_05 0317__152018__G6906.mp4
- Date
- 01/05/2018
- W/O
- 0682489
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00498
- PipeID
- P05517
- Time
- 1:05 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6906
- Sewer Name
- 05 OAK STREET-CENTER AVENUE TRUNK
- City
- INGLEWOOD
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 06
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180105MDM_OAK_STREET_CENTER_AVENUE_TRUNK
- Material
- NRCP
- Shape
- Circular
- Height
- 22 in.
- Upstream MH
- 05 0318
- Downstream MH
- 05 0317
- Dir. of Survey
- Downstream
- Length Surveyed
- 446.4 ft.
- Total Length
- 446.4 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (5)

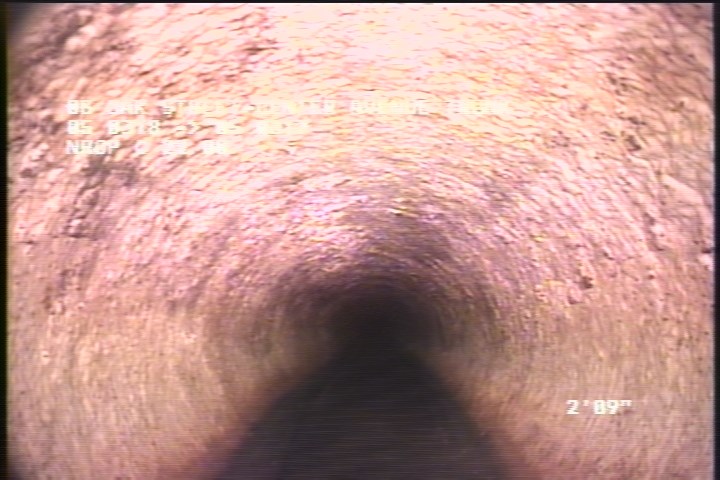

2 ft. - General Observation - MAG COAT 100% 8:00 TO 4:00 START

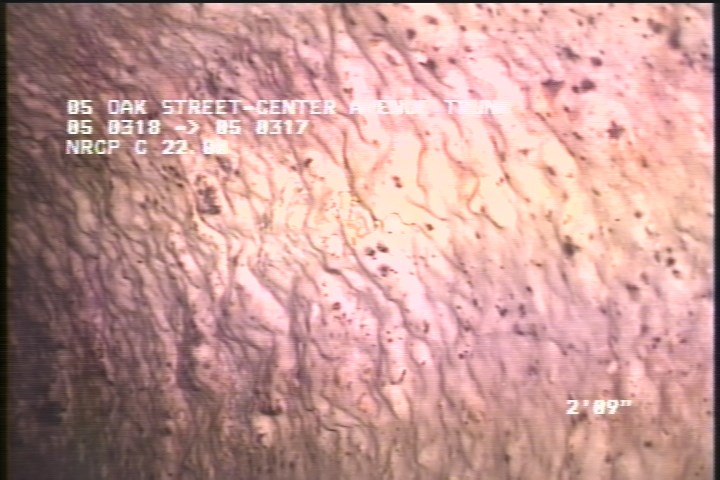

2.8 ft. - General Observation - MAG COAT

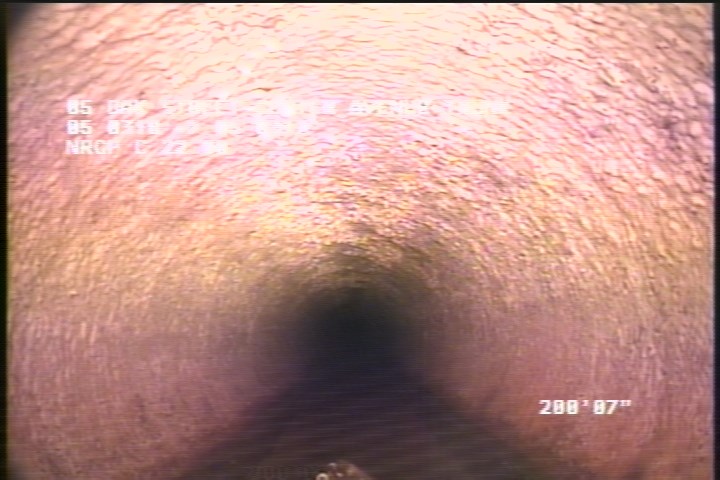

200.6 ft. - General Observation - 100% MAG COAT

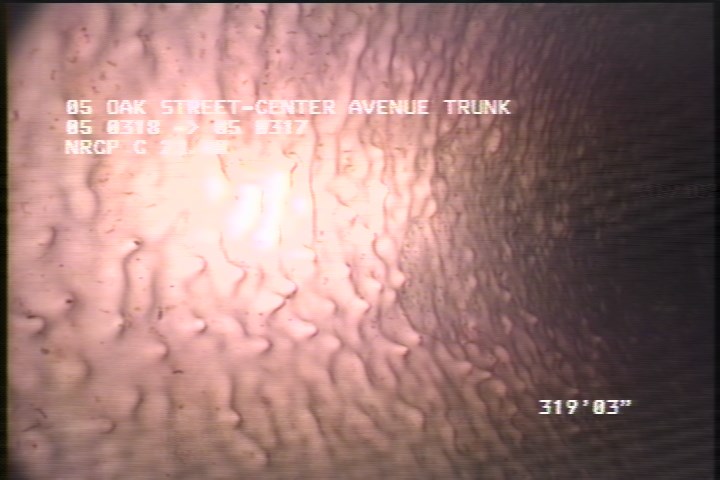

319.3 ft. - General Observation - MAG COAT

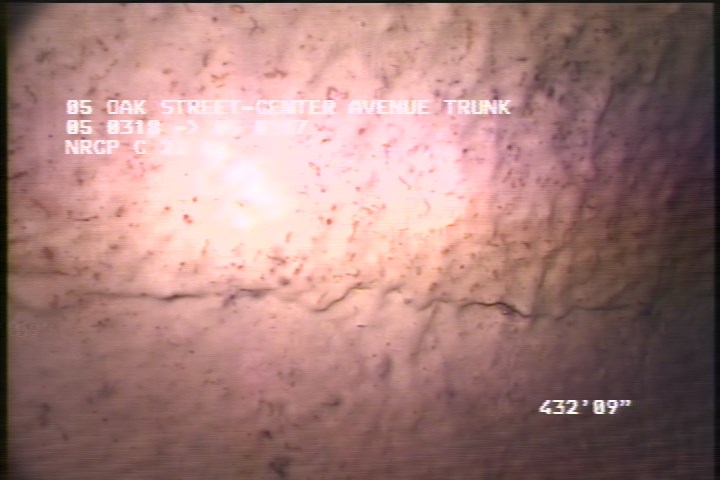

432.8 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - POSSIBLE PEELING CONCRETE UNDER MAG COAT
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 319.3 | MGO | MAG COAT |
| 0 | MGO | MH CONN 9:00 STUB |
| 0 | MWL | — |
| 432.8 | SSS | POSSIBLE PEELING CONCRETE UNDER MAG COAT |
| 0 | MGO | MH CONN 3:00 ACTIVE |
| 0 | MWM | — |
| 446.1 | MGO | MAG COAT 100% FINISH |
| 2.8 | MGO | MAG COAT |
| 446.4 | AMH | 2:05AM |
| 2 | MGO | MAG COAT 100% 8:00 TO 4:00 START |
| 0 | AMH | 1:40AM |
| 200.6 | MGO | 100% MAG COAT |
Properties (4)
- custom_field_three
- 100% MAG COAT
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-01-05T01:05:57-08:00
