Wastewater/Activity/PacpInspection/1.0Dec 4, 2017, 10:54 AM
02 1276_02 1275A_04122017_025512.mp4
- Date
- 12/04/2017
- W/O
- 673943
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00238
- PipeID
- P03790
- Time
- 2:54 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5257
- Sewer Name
- 02 BELVEDERE TRUNK
- City
- COMMERCE
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_673943_TV02329_DEC2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 02 1275A
- Downstream MH
- 02 1276
- Dir. of Survey
- Upstream
- Length Surveyed
- 200.4 ft.
- Total Length
- 200.4 ft.
- Structural Index
- 3
- Structural Quick
- 3E22
- Structural Rating
- 88
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 88
Observation photos (3)

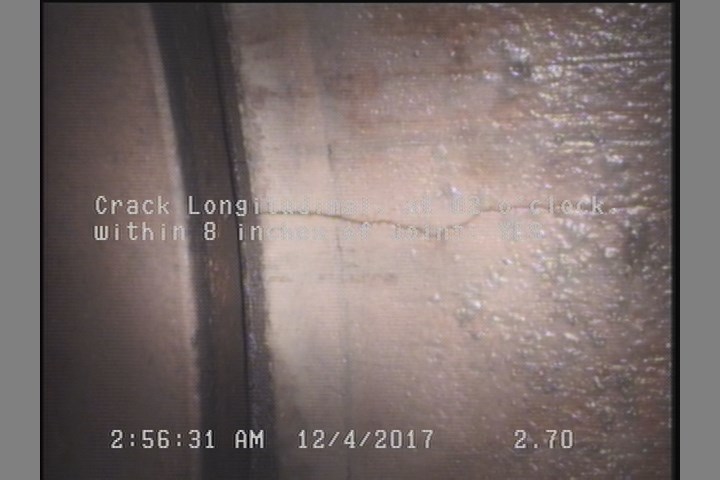

2.7 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

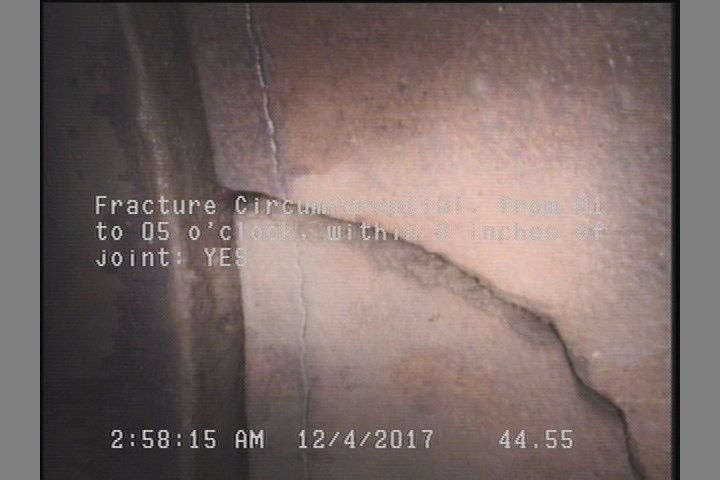

44.6 ft. - Fracture Circumferential, from 01 to 05 o'clock, within 8 inches of joint: YES

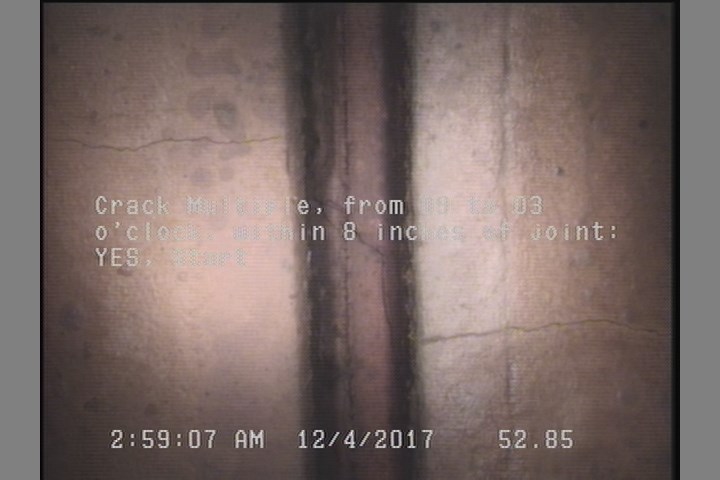

52.9 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 2.7 | CL | — |
| 200.4 | AMH | 02 1276 |
| 0 | MWL | — |
| 44.6 | FC | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 192.9 | CM | — |
| 52.9 | CM | — |
| 0 | AMH | 02 1275A |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC346286
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-04T02:54:39-08:00
