Wastewater/Activity/PacpInspection/1.0Dec 7, 2017, 08:16 AM
29 0734_29 0733 _07122017_001718.mp4
- Date
- 12/07/2017
- W/O
- 674547
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00527
- PipeID
- P24240
- Time
- 12:16 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5261
- Sewer Name
- 29 ALAMITOS PUMPING PLANT TRUNK
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_674547_TV29002_DEC2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 29 0734
- Downstream MH
- 29 0733
- Dir. of Survey
- Downstream
- Length Surveyed
- 30 ft.
- Total Length
- 30 ft.
- Structural Index
- 3
- Structural Quick
- 3221
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

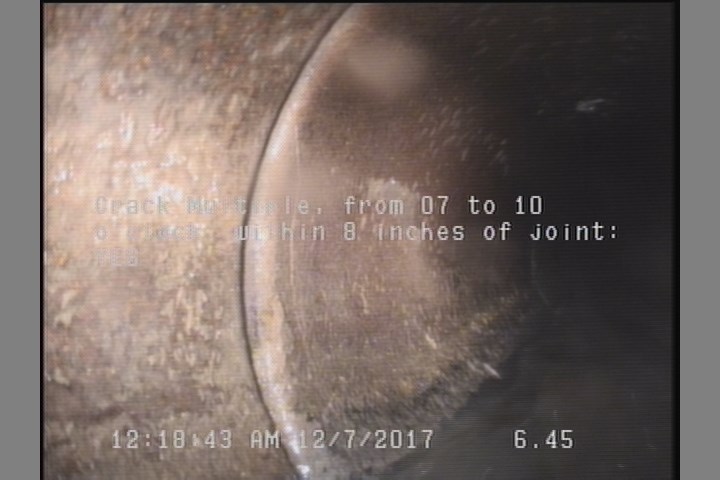

6.5 ft. - Crack Multiple, from 07 to 10 o'clock, within 8 inches of joint: YES

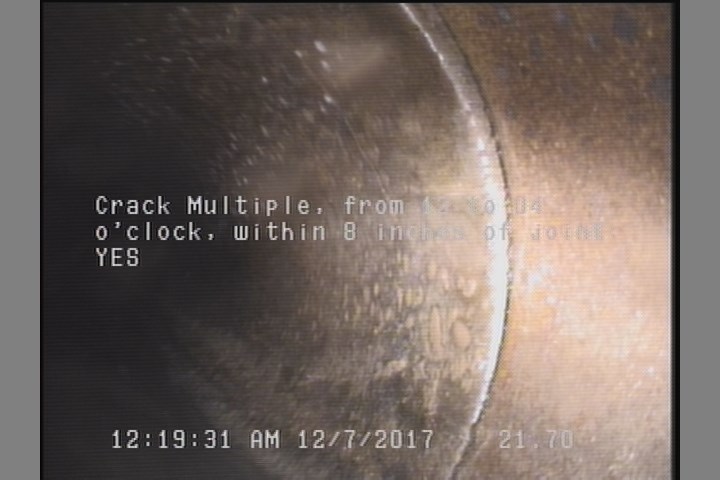

21.7 ft. - Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES
25.5 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 25.5 | CL | — |
| 21.7 | CM | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 30 | AMH | 29 0733 |
| 6.5 | CM | — |
| 0 | AMH | 29 0734 |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
Properties (5)
- additional_info
- SC346290
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-07T00:16:24-08:00
- sewer_category
- Gravity
