Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 5, 2017, 10:49 AM

  • 02 0721_02 0720_05122017_025207.mp4

Date
12/05/2017
W/O
674429
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00294
PipeID
P03275
Time
2:49 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5260
Sewer Name
02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
City
DOWNEY
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
29
Purpose
Routine Assessment
Project
WO_674429_TV02351_DEC2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 0721
Downstream MH
02 0720
Dir. of Survey
Downstream
Length Surveyed
365.3 ft.
Total Length
365.3 ft.
Structural Index
3
Structural Quick
3U00
Structural Rating
330
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
330
Pipe schematic from manhole 02 0721 to 02 0720
MH: 02 0721MH: 02 0720downstream0 ft. AMH - Upstream Manhole, Survey Begins - 02 07210 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area3.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start15.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start15.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish31 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"36.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"103.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"125 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start125 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish135.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"137.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"181.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start268.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"268.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"365.3 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish365.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish365.3 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK365.3 ft. AMH - Downstream Manhole, Survey Ends - 02 0720

Observation photos (4)

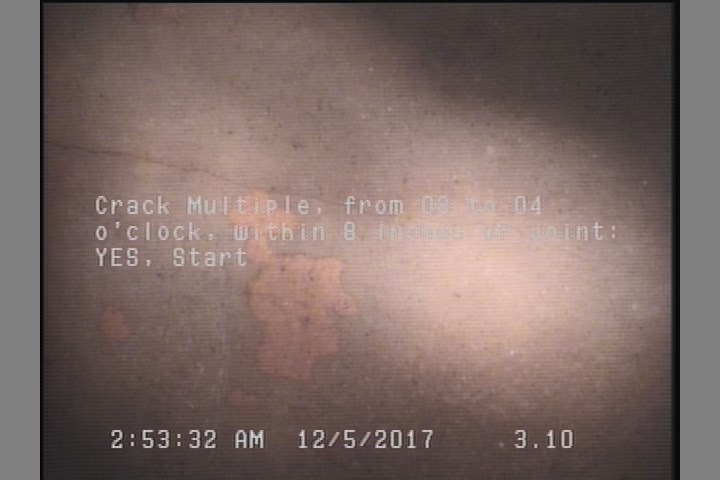

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

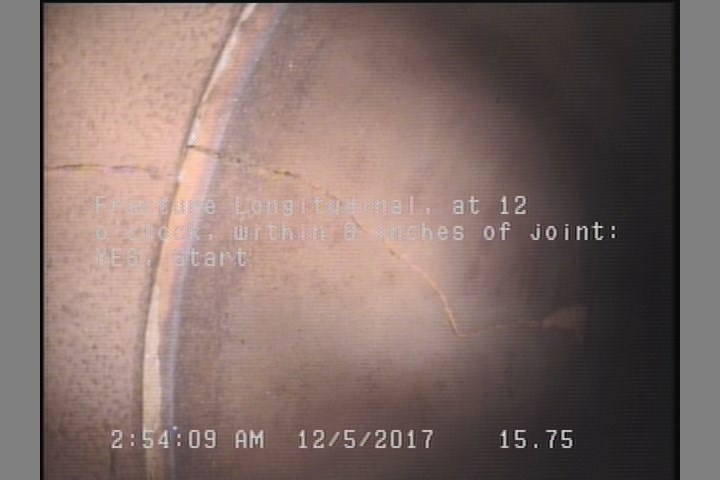

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    15.8 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

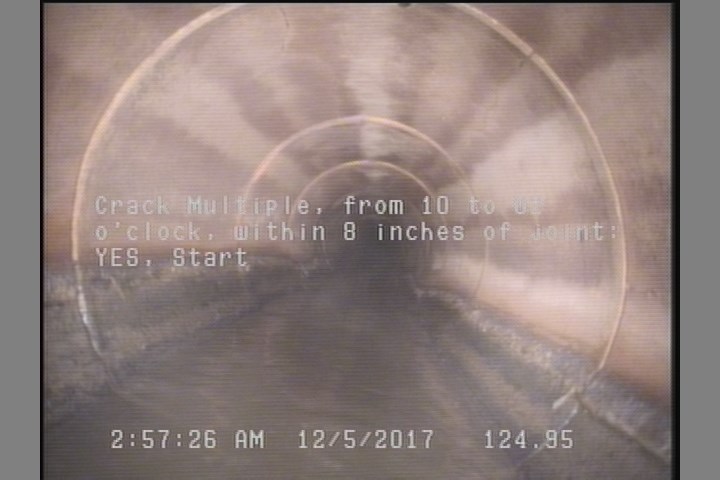

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    125 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

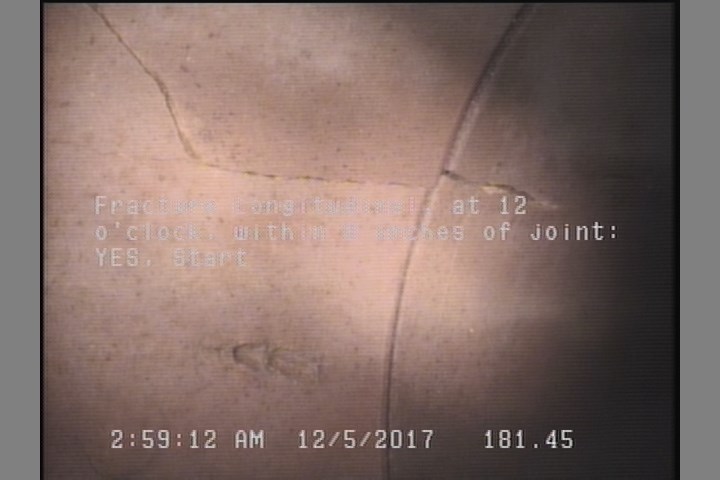

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    181.5 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

All inspections of P03275Work order 674429

Observations (20)

DistanceCodeObservation
125CM—
268.7TFC—
0AMH02 0721
268.2TF—
3.1CM—
0MWM—
365.3CM—
137.1TFC—
31TFC—
365.3FL—
125FL—
15.8FL—
181.5FL—
36.5TFC—
0MWL—
103.5TF—
365.3MGOCONNECTION AT MH 9 O'CLOCK
15.8CM—
135.8TF—
365.3AMH02 0720

Properties (5)

additional_info
SC346289
custom_field_two
3
customer
LACSD
datetime
2017-12-05T02:49:12-08:00
sewer_category
Gravity
