Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 6, 2017, 08:07 AM

  • A 0711_A 0710 _05122017_033359.mp4

Date
12/06/2017
W/O
674024
Weather
Dry
Operator/Surveyor
ERUIZ
Sewer ID
Z00316
PipeID
P07920
Time
12:07 AM
Certificate
123456
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5152
Sewer Name
A JOA-1A DISTRICT 21 INTERCEPTOR
City
POMONA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
14
Purpose
Routine Assessment
Project
WO_674024_TV21041_DEC2017
Material
Reinforced Concrete Pipe
Shape
Circular
Height
39 in.
Width
39 in.
Upstream MH
A 0711
Downstream MH
A 0710
Dir. of Survey
Downstream
Length Surveyed
2 ft.
Total Length
2.1 ft.
Structural Index
5
Structural Quick
5100
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
5
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole A 0711 to A 0710
MH: A 0711MH: A 0710downstream0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - A 07112 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES2.1 ft. MSA - Survey Abandoned - DOWN LEG SIPHON FROM U/S MH

Observation photos (2)

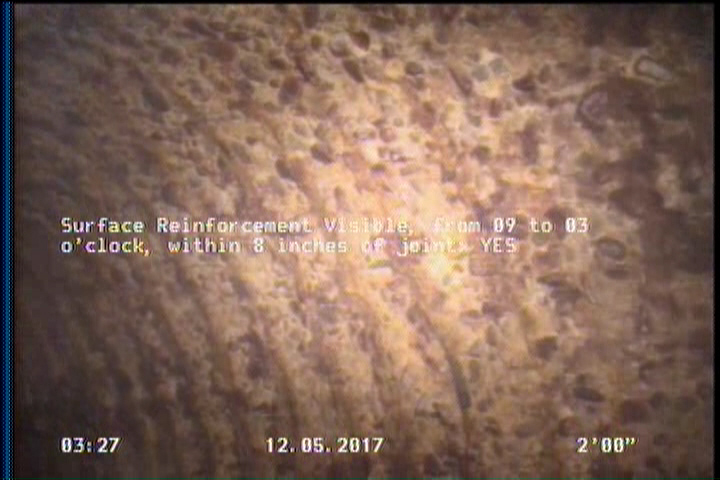

  • Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES

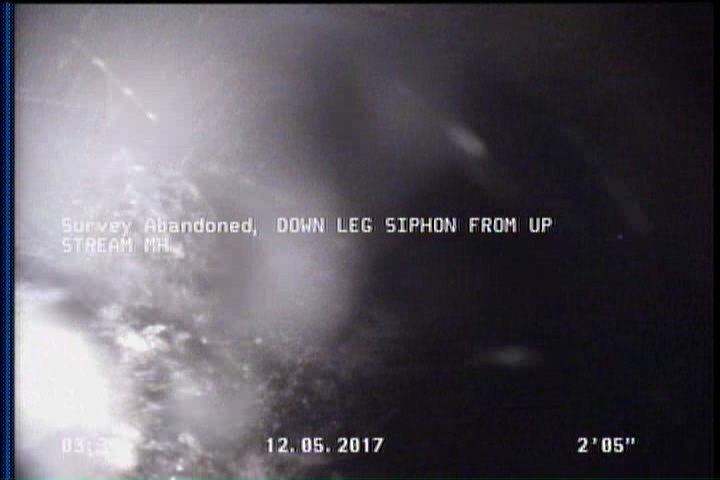

  • Survey Abandoned - DOWN LEG SIPHON FROM U/S MH

    2.1 ft. - Survey Abandoned - DOWN LEG SIPHON FROM U/S MH

All inspections of P07920Work order 674024

Observations (5)

DistanceCodeObservation
0MWM—
0MWL—
2SRV—
0AMHA 0711
2.1MSADOWN LEG SIPHON FROM U/S MH

Properties (6)

additional_info
SC346462
custom_field_two
2
customer
LACSD
datetime
2017-12-06T00:07:42-08:00
sewer_category
Siphon
year_laid
26232
