Wastewater/Activity/PacpInspection/1.0Dec 11, 2017, 01:07 PM
18 0125_18 0124 _11122017_050808.mp4
- Date
- 12/11/2017
- W/O
- 673944
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00695
- PipeID
- P13946
- Time
- 5:07 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5271
- Sewer Name
- 18 ORR AND DAY ROAD TRUNK
- City
- NORWALK
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 29
- Purpose
- Routine Assessment
- Project
- WO_673944_TV18100_DEC2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- 18 0125
- Downstream MH
- 18 0124
- Dir. of Survey
- Downstream
- Length Surveyed
- 76.3 ft.
- Total Length
- 76.3 ft.
- Structural Index
- 3
- Structural Quick
- 5B3B
- Structural Rating
- 150
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 154
Observation photos (3)

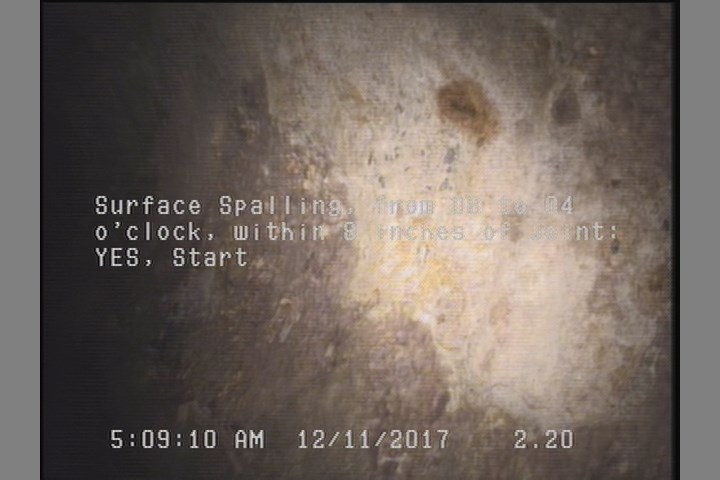

2.2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

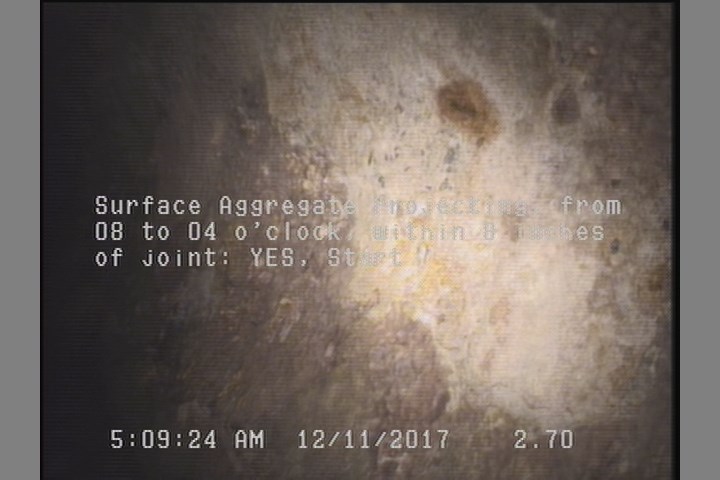

2.7 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

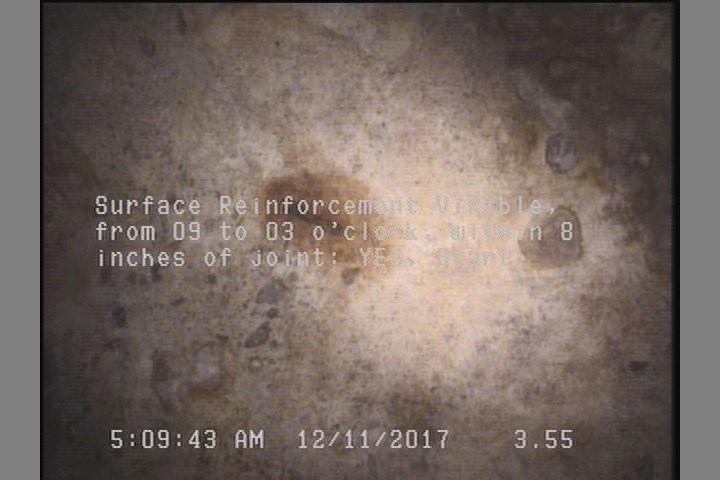

3.6 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 76.3 | SAP | — |
| 3.6 | SRV | — |
| 76.3 | SSS | — |
| 2.7 | SAP | — |
| 0 | MWM | — |
| 2.2 | SSS | — |
| 0 | AMH | 18 0125 |
| 76.3 | AMH | 18 0124 |
| 76.3 | SRV | — |
Properties (5)
- additional_info
- SC346298
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-12-11T05:07:31-08:00
- sewer_category
- Gravity
