Wastewater/Activity/PacpInspection/1.0Dec 8, 2017, 07:07 AM
20 0094_20 0065_12072017_230719.mp4
- Date
- 12/07/2017
- W/O
- 674126
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00743
- PipeID
- P19016
- Time
- 11:07 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5240
- Sewer Name
- 20 TRUNK "B"
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_674126_TV20037_DEC2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 20 0094
- Downstream MH
- 20 0065
- Dir. of Survey
- Downstream
- Length Surveyed
- 43.5 ft.
- Total Length
- 43.5 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 2
- O&M Quick
- 2800
- O&M Rating
- 16
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 20
Observation photos (3)

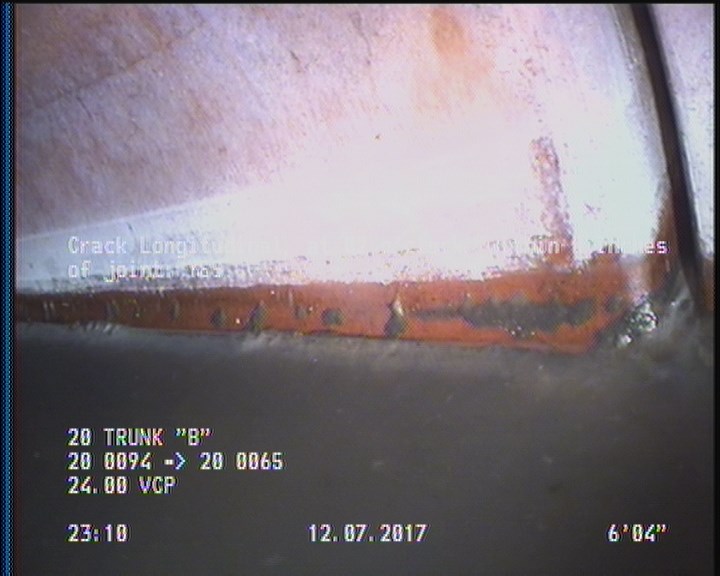

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

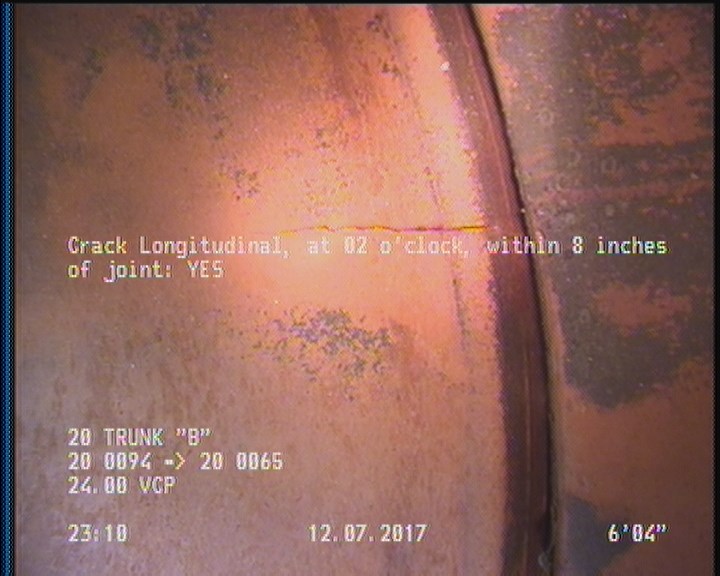

6.3 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

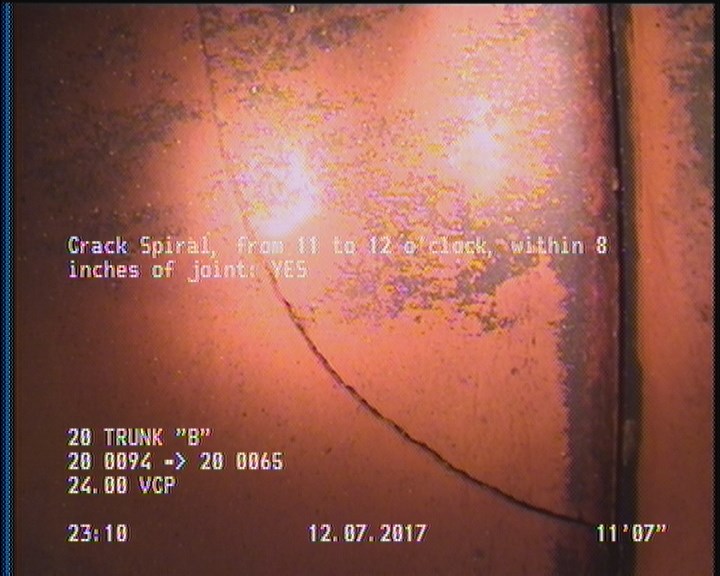

11.6 ft. - Crack Spiral, from 11 to 12 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 43.5 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | MWL | — |
| 2 | DAGS | — |
| 11.6 | CS | — |
| 0 | MWM | — |
| 0 | AMH | 20 0094 |
| 42 | MGO | SPALLING THROUGHOUT THE REACH, FROM 08 TO 04 O'CLOCK |
| 6.3 | CL | — |
| 43.5 | AMH | 20 0065 |
| 41.2 | DAGS | — |
Properties (5)
- additional_info
- SC346411
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-07T23:07:03-08:00
- sewer_category
- Gravity
