Wastewater/Activity/PacpInspection/1.0Dec 7, 2017, 10:14 AM
20 0098_20 0097_12072017_020405.mp4
- Date
- 12/07/2017
- W/O
- 674126
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00743
- PipeID
- P19020
- Time
- 2:14 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5239
- Sewer Name
- 20 TRUNK "B"
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_674126_TV20037_DEC2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 20 0098
- Downstream MH
- 20 0097
- Dir. of Survey
- Downstream
- Length Surveyed
- 457.8 ft.
- Total Length
- 457.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (1)

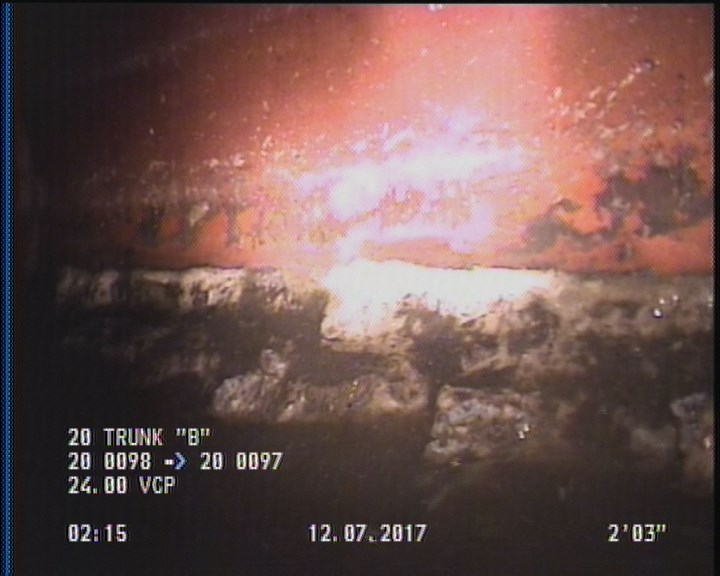

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 456 | MGO | SPALLING THROUGHOUT THE REACH, FROM 08 TO 04 O'CLOCK |
| 455.2 | DAGS | — |
| 0 | MWL | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 457.8 | MGO | CAPPED CONNECTION AT MH 3 O'CLOCK |
| 0 | AMH | 20 0098 |
| 457.8 | AMH | 20 0097 |
Properties (5)
- additional_info
- SC346410
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-07T02:14:23-08:00
- sewer_category
- Gravity
