Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 5, 2017, 11:10 AM

  • 20 0299_20 0298_12052017_031055.mp4

Date
12/05/2017
W/O
673996
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00736
PipeID
P19265
Time
3:10 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5236
Sewer Name
20 AVENUE "Q" EXTENSION TRUNK
City
PALMDALE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 20
Page No.
07
Purpose
Routine Assessment
Project
WO_673996_TV20035_DEC2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
20 0299
Downstream MH
20 0298
Dir. of Survey
Downstream
Length Surveyed
316.5 ft.
Total Length
316.5 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 20 0299 to 20 0298
MH: 20 0299MH: 20 0298downstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 20 02990 ft. MWL - Water Level, 5 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start6.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"50.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"52.8 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"53.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"104.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"107.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"150.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"153.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"190.6 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"196.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"201.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"204.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES254.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"261 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"301.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"304.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"314 ft. MGO - General Observation - SPALLING THROUGHOUT THE REACH, FROM 08 TO 04 O'CLOCK314.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish316.5 ft. MGO - General Observation - COCKROACHES IN MANHOLE316.5 ft. AMH - Downstream Manhole, Survey Ends - 20 0298

Observation photos (3)

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

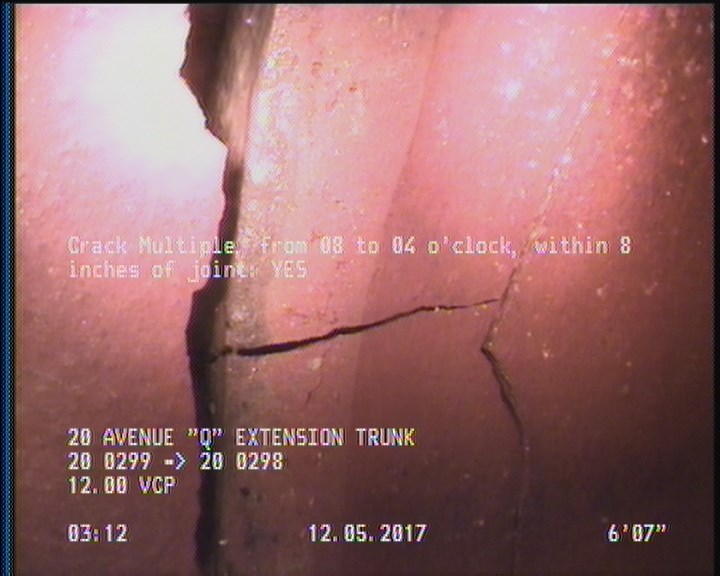

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    6.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    204.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P19265Work order 673996

Observations (25)

DistanceCodeObservation
314MGOSPALLING THROUGHOUT THE REACH, FROM 08 TO 04 O'CLOCK
316.5MGOCOCKROACHES IN MANHOLE
316.5AMH20 0298
6.6CM—
301.9TFA—
0MWM—
304.7TFC—
0AMH20 0299
52.8TBA—
150.4TFC—
8TFA—
107.9TFC—
254.2TFC—
104.8TFA—
196.9TFC—
314.3DAGS—
2DAGS—
0MWL—
201.6TFA—
204.7CM—
53.7TFC—
190.6TBA—
261TFC—
153.7TFC—
50.4TFC—

Properties (5)

additional_info
SC346407
custom_field_two
3
customer
LACSD
datetime
2017-12-05T03:10:39-08:00
sewer_category
Gravity
