Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 5, 2017, 09:12 AM

  • 20 0302_20 0301_12052017_011327.mp4

Date
12/05/2017
W/O
673996
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00736
PipeID
P19268
Time
1:12 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5236
Sewer Name
20 AVENUE "Q" EXTENSION TRUNK
City
PALMDALE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 20
Page No.
07
Purpose
Routine Assessment
Project
WO_673996_TV20035_DEC2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
20 0302
Downstream MH
20 0301
Dir. of Survey
Downstream
Length Surveyed
275.7 ft.
Total Length
275.7 ft.
Structural Index
3
Structural Quick
3300
Structural Rating
9
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole 20 0302 to 20 0301
MH: 20 0302MH: 20 0301downstream0 ft. AMH - Upstream Manhole, Survey Begins - 20 03020 ft. MWL - Water Level, 5 %of cross sectional area2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start6.9 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"14 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: NO, 6"41.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"63.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES93.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"99.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"138.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"144.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"183.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"198.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"273.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish274 ft. MGO - General Observation - SPALLING THROUGHOUT THE REACH, FROM 08 TO 04 O'CLOCK275.7 ft. AMH - Downstream Manhole, Survey Ends - 20 0301275.7 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK

Observation photos (2)

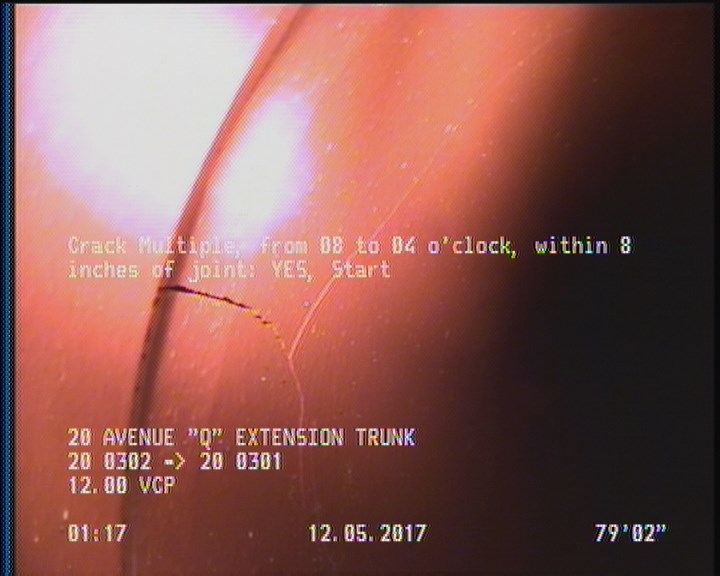

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

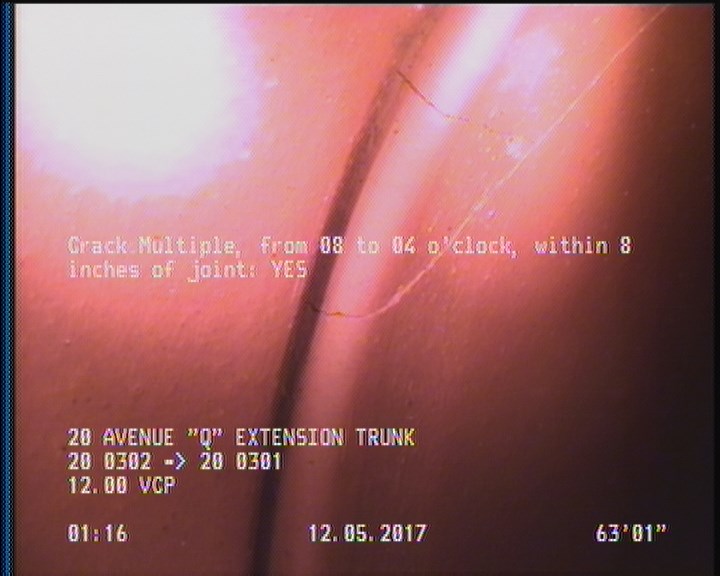

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    63.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P19268Work order 673996

Observations (17)

DistanceCodeObservation
0AMH20 0302
198.9TFC—
138.4TFC—
273.4CM—
2CM—
275.7AMH20 0301
14TB—
274MGOSPALLING THROUGHOUT THE REACH, FROM 08 TO 04 O'CLOCK
6.9TFC—
41.6TFC—
275.7MGOACTIVE CONNECTION AT MH 9 O'CLOCK
0MWL—
183.9TFA—
93.2TFC—
99.6TF—
63.1CM—
144.9TFC—

Properties (5)

additional_info
SC346407
custom_field_two
3
customer
LACSD
datetime
2017-12-05T01:12:19-08:00
sewer_category
Gravity
