Wastewater/Activity/PacpInspection/1.0Dec 6, 2017, 11:53 AM
20 0297_20 0296_12062017_035332.mp4
- Date
- 12/06/2017
- W/O
- 673996
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00736
- PipeID
- P19263
- Time
- 3:53 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5238
- Sewer Name
- 20 AVENUE "Q" EXTENSION TRUNK
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_673996_TV20035_DEC2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 20 0297
- Downstream MH
- 20 0296
- Dir. of Survey
- Downstream
- Length Surveyed
- 50.9 ft.
- Total Length
- 50.9 ft.
- Structural Index
- 3
- Structural Quick
- 3900
- Structural Rating
- 27
- O&M Index
- 4
- O&M Quick
- 5132
- O&M Rating
- 11
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 38
Observation photos (2)

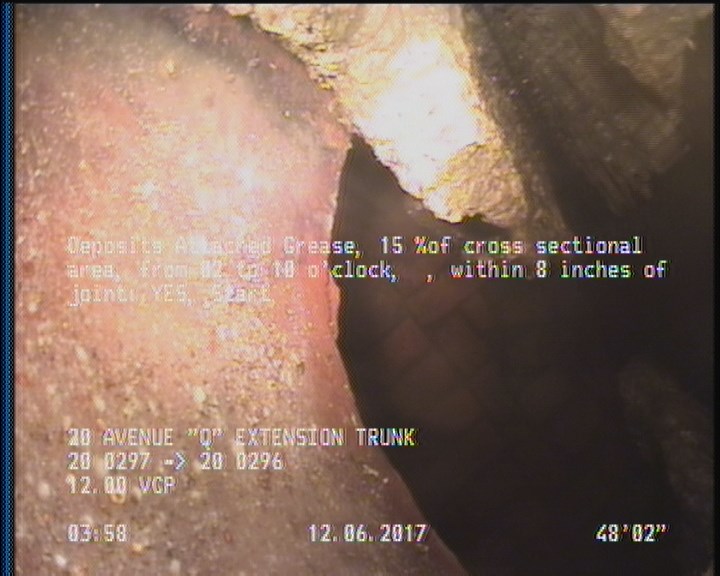

2 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

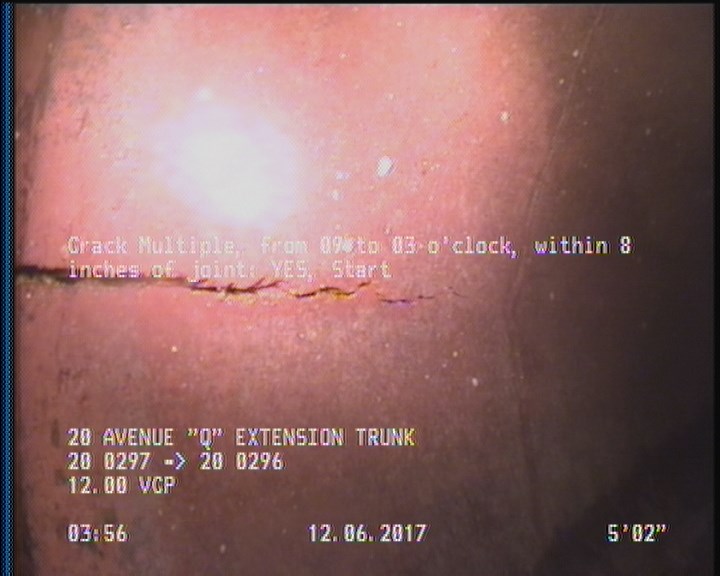

5.2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 48.3 | DAGS | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 0 | AMH | 20 0297 |
| 50.9 | AMH | 20 0296 |
| 49 | MGO | SPALLING THROUGHOUT THE REACH, FROM 08 TO 04 O'CLOCK |
| 5.2 | CM | — |
| 48.3 | CM | — |
Properties (5)
- additional_info
- SC346409
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-06T03:53:14-08:00
- sewer_category
- Gravity
