Wastewater/Activity/PacpInspection/1.0Dec 5, 2017, 10:22 AM
20 0300_20 0299_12052017_022325.mp4
- Date
- 12/05/2017
- W/O
- 673996
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00736
- PipeID
- P19266
- Time
- 2:22 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5236
- Sewer Name
- 20 AVENUE "Q" EXTENSION TRUNK
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_673996_TV20035_DEC2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 20 0299
- Downstream MH
- 20 0300
- Dir. of Survey
- Upstream
- Length Surveyed
- 344.5 ft.
- Total Length
- 344.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 136
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 136
Observation photos (1)

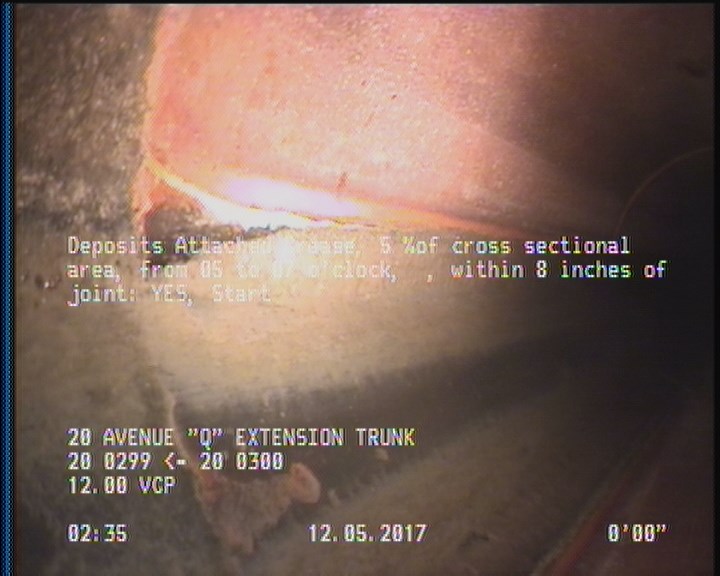

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 311.6 | TFC | — |
| 343.1 | DAGS | — |
| 148.1 | TFA | — |
| 218.6 | TFA | — |
| 0 | MWM | — |
| 69.4 | TF | — |
| 344.5 | AMH | 20 0300 |
| 0 | AMH | 20 0299 |
| 91.5 | TFC | — |
| 237.3 | TFC | — |
| 342 | MGO | SPALLING THROUGHOUT THE REACH, FROM 08 TO 04 O'CLOCK |
| 0 | MWL | — |
| 135.3 | TFC | — |
| 187.6 | TFC | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
Properties (5)
- additional_info
- SC346407
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-05T02:22:46-08:00
- sewer_category
- Gravity
