Wastewater/Activity/PacpInspection/1.0Oct 19, 2017, 08:04 AM
02 1261_02 2317_10192017_034448.mp4
- Date
- 10/19/2017
- W/O
- 0663064
- Weather
- Dry
- Operator/Surveyor
- REVELES
- Sewer ID
- Z00288
- PipeID
- P08498
- Time
- 1:04 AM
- Certificate
- U-115-06022630
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0654
- Sewer Name
- 02 MONTEREY PARK DIVERSION TRUNK
- City
- Monterey Park
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 09
- Purpose
- Capital Improvement Program Assesment
- Project
- 10192017VMR_MONTERREY_PARK_DIVERSION_TRUNK
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 02 1261
- Downstream MH
- 02 2317
- Dir. of Survey
- Downstream
- Length Surveyed
- 303.3 ft.
- Total Length
- 303.3 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (3)
3 ft. - Surface Aggregate Visible Chemical, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - Mag Coat 40-6%

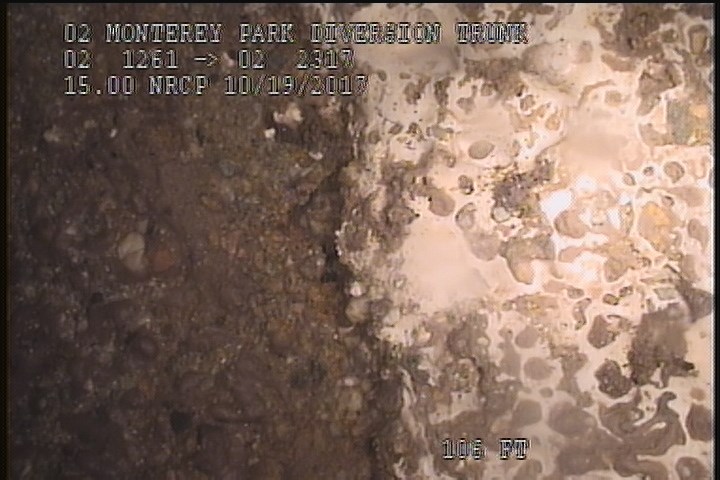

106 ft. - General Observation - laitance coat peeling off

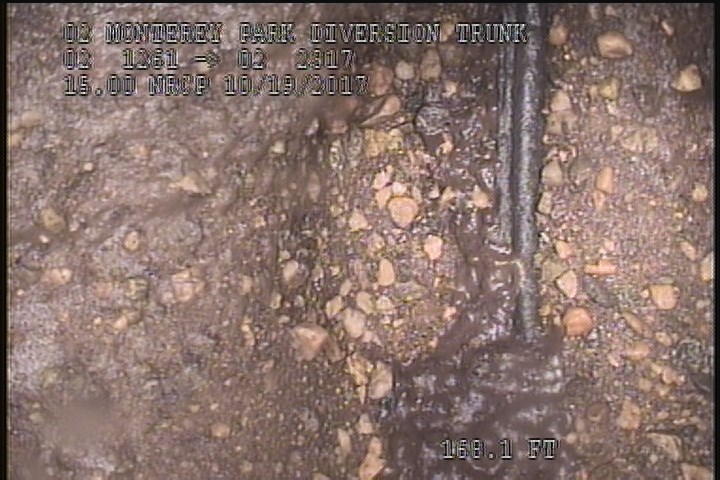

168.1 ft. - General Photograph - possible gasket
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 300.6 | SAVC | — |
| 0 | AMH | 01:45 AM |
| 3 | SAVC | Mag Coat 40-6% |
| 303.3 | AMH | 03:45 AM |
| 168.1 | MGP | possible gasket |
| 0 | MWL | — |
| 0 | MWM | — |
| 106 | MGO | laitance coat peeling off |
| 300.6 | SAV | — |
| 3 | SAV | — |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-19T01:04:28-07:00
