Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 7, 2017, 06:16 AM

  • H 0466_H 0465_06122017_225840.mp4

Date
12/06/2017
W/O
674000
Weather
Dry
Operator/Surveyor
ERUIZ
Sewer ID
Z00179
PipeID
P10863
Time
10:16 PM
Certificate
123456
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5154
Sewer Name
H JOINT OUTFALL H - UNIT 5C
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
29
Purpose
Routine Assessment
Project
WO_674000_TV15195_DEC2017
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Width
33 in.
Upstream MH
H 0465
Downstream MH
H 0466
Dir. of Survey
Upstream
Length Surveyed
513.3 ft.
Total Length
513.3 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
2
O&M Quick
2S00
O&M Rating
196
Overall Index
2
Overall Quick
—
Overall Rating
202
Pipe schematic from manhole H 0465 to H 0466
MH: H 0465MH: H 0466upstream0 ft. AMH - Upstream Manhole, Survey Ends - H 04660.8 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK2.3 ft. MGO - General Observation - SPALLING THROUGHOUT THE REACH, FROM 08 TO 04 O'CLOCK3.8 ft. MGO - General Observation - MAGNESIUM COATING END 75%3.8 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish3.9 ft. OBZ - Obstacles Other, 5 %of cross sectional area, from 05 to 07 o'clock, Finish90.3 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 8"205.6 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 8"302.2 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 8"406.1 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 8"461.9 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 8"493.2 ft. OBZ - Obstacles Other, 5 %of cross sectional area, from 05 to 07 o'clock, Start - UNKNOWN DEBRIS IN LINE501.8 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start505.3 ft. MGO - General Observation - MAGNESIUM COATING START 75%513.3 ft. MWM - Water Mark, 25 %of cross sectional area513.3 ft. MWL - Water Level, 25 %of cross sectional area513.3 ft. AMH - Downstream Manhole, Survey Begins - H 0465

Observation photos (1)

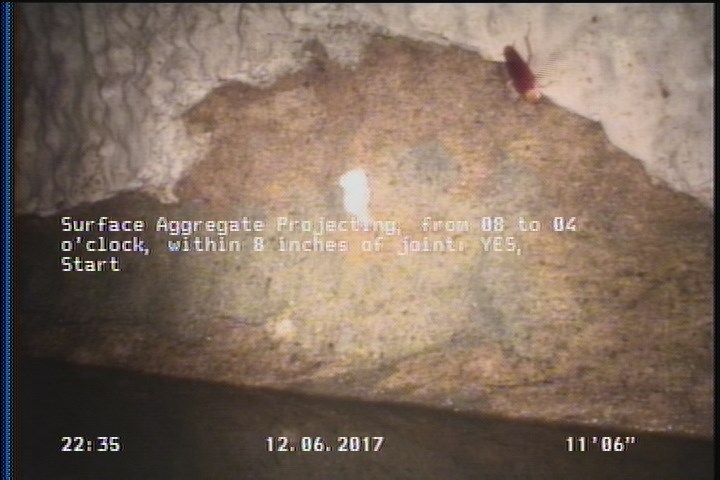

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    11.5 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P10863Work order 674000

Observations (17)

DistanceCodeObservation
0MWM—
513.3AMHH 0466
8MGOMAGNESIUM COATING START 75%
511MGOSPALLING THROUGHOUT THE REACH, FROM 08 TO 04 O'CLOCK
0MWL—
20.1OBZUNKNOWN DEBRIS IN LINE
509.4OBZ—
423TFA—
509.5MGOMAGNESIUM COATING END 75%
512.5MGOLATERAL AT MH 9 OCLOCK
211.1TFA—
0AMHH 0465
509.5SAP—
107.2TFA—
11.5SAP—
51.4TFA—
307.7TFA—

Properties (5)

additional_info
SC346464
custom_field_two
3
customer
LACSD
datetime
2017-12-06T22:16:25-08:00
sewer_category
Gravity
