Wastewater/Activity/PacpInspection/1.0Dec 13, 2017, 10:37 AM
05 2132_05 2131_12132017_023915.mp4
- Date
- 12/13/2017
- W/O
- 673995
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00479
- PipeID
- P07272
- Time
- 2:37 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5247
- Sewer Name
- 05 MADISON STREET TRUNK
- City
- TORRANCE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- WO_673995_TV05062_DEC2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 05 2131
- Downstream MH
- 05 2132
- Dir. of Survey
- Upstream
- Length Surveyed
- 247.1 ft.
- Total Length
- 247.1 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 5141
- O&M Rating
- 107
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 110
Observation photos (3)
2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 12 to 12 o'clock, , within 8 inches of joint: YES, Start

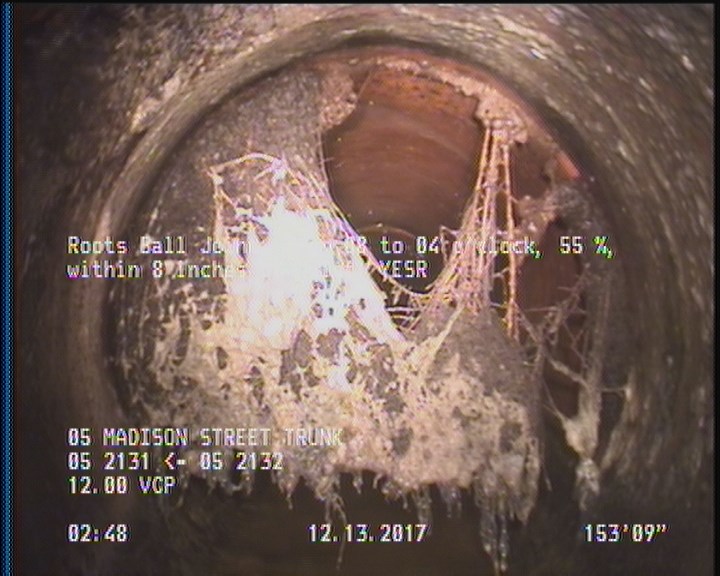

153.8 ft. - Roots Ball Joint, from 08 to 04 o'clock, 55 %, within 8 inches of joint: YESR
241.8 ft. - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 241.8 | CM | — |
| 245.9 | DAGS | — |
| 0 | MWL | — |
| 0 | AMH | 05 2131 |
| 153.8 | RBJ | — |
| 116.9 | TFC | — |
| 2 | DAGS | — |
| 247.1 | AMH | 05 2132 |
| 66 | TF | — |
| 153.4 | TFA | — |
| 160 | TFC | — |
| 247.1 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MWM | — |
| 20.3 | TFC | — |
| 245.9 | MGO | COCKROACHES IN MANHOLE |
Properties (5)
- additional_info
- SC346418
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-12-13T02:37:31-08:00
- sewer_category
- Gravity
