Wastewater/Activity/PacpInspection/1.0Dec 5, 2017, 07:05 AM
02 1743_02 1742 _04122017_230551.mp4
- Date
- 12/04/2017
- W/O
- 673984
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00254
- PipeID
- P04086
- Time
- 11:05 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5259
- Sewer Name
- 02 DOWNEY-BELLFLOWER EXTENSION TRUNK
- City
- PICO RIVERA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 19A
- Purpose
- Routine Assessment
- Project
- WO_673984_TV02243_DEC2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 1743
- Downstream MH
- 02 1742
- Dir. of Survey
- Downstream
- Length Surveyed
- 321.5 ft.
- Total Length
- 321.5 ft.
- Structural Index
- 3
- Structural Quick
- 3J21
- Structural Rating
- 167
- O&M Index
- 3
- O&M Quick
- 4H2I
- O&M Rating
- 270
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 437
Observation photos (5)
19.2 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

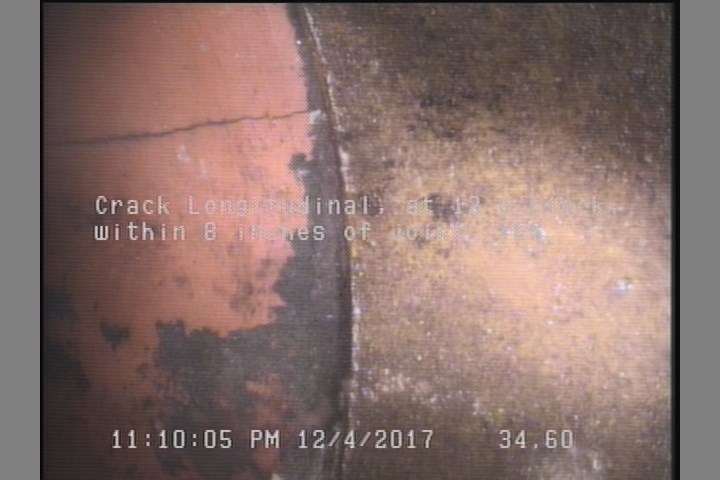

34.6 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES
51.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
76.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, at 12 o'clock, , within 8 inches of joint: YES, Start
107.5 ft. - Camera Underwater, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 321.5 | AMH | 02 1742 |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MWL | — |
| 33.4 | TFA | — |
| 0 | MWM | — |
| 321.5 | CM | — |
| 19.2 | CM | — |
| 321.5 | DAGS | — |
| 51.9 | CM | — |
| 34.6 | CL | — |
| 76.8 | DAGS | — |
| 107.5 | MCU | — |
| 321.5 | MCU | — |
| 6.5 | TFA | — |
| 0 | AMH | 02 1743 |
Properties (5)
- additional_info
- SC346288
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-12-04T23:05:16-08:00
- sewer_category
- Gravity
