Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 5, 2017, 06:26 AM

  • 02 1748_02 1747 _04122017_222634.mp4

Date
12/04/2017
W/O
673984
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00254
PipeID
P04091
Time
10:26 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5259
Sewer Name
02 DOWNEY-BELLFLOWER EXTENSION TRUNK
City
PICO RIVERA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
19A
Purpose
Routine Assessment
Project
WO_673984_TV02243_DEC2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 1748
Downstream MH
02 1747
Dir. of Survey
Downstream
Length Surveyed
228.2 ft.
Total Length
228.2 ft.
Structural Index
3
Structural Quick
3H00
Structural Rating
129
O&M Index
1
O&M Quick
1200
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
131
Pipe schematic from manhole 02 1748 to 02 1747
MH: 02 1748MH: 02 1747downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 17480 ft. MWL - Water Level, 25 %of cross sectional area5.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES13.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start45.4 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES49.7 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES55.7 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"221.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish228.2 ft. AMH - Downstream Manhole, Survey Ends - 02 1747

Observation photos (3)

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    5.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

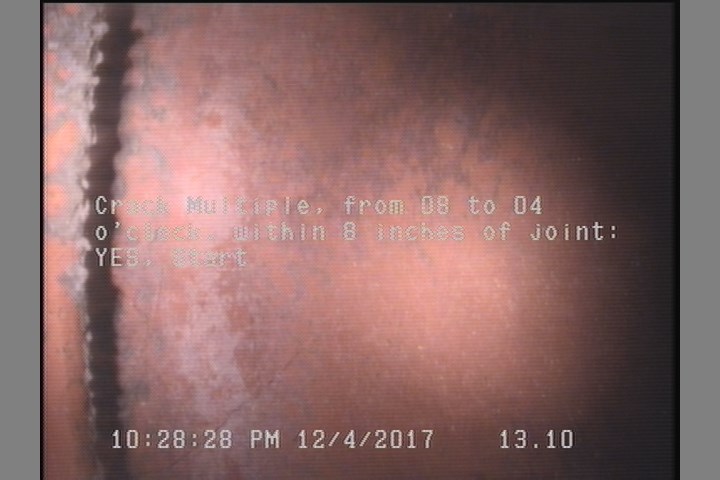

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    13.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

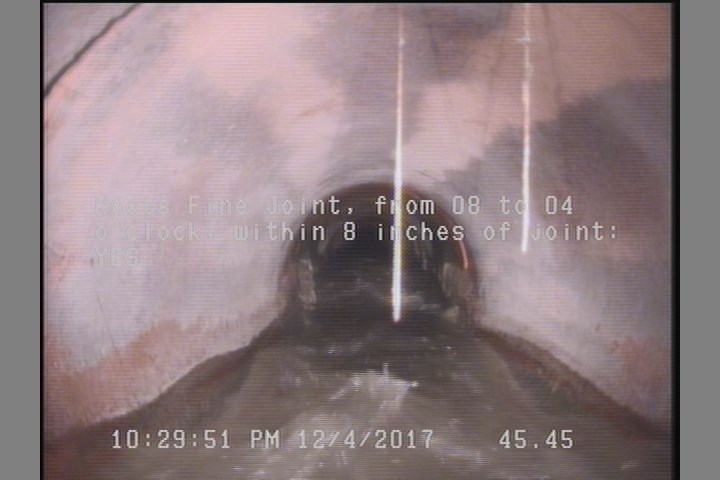

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES

    45.4 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P04091Work order 673984

Observations (10)

DistanceCodeObservation
5.1CM—
55.7TF—
0MWM—
0AMH02 1748
49.7RFJ—
0MWL—
228.2AMH02 1747
45.4RFJ—
221.6CM—
13.1CM—

Properties (5)

additional_info
SC346288
custom_field_two
3
customer
LACSD
datetime
2017-12-04T22:26:11-08:00
sewer_category
Gravity
