Wastewater/Activity/PacpInspection/1.0Dec 5, 2017, 08:52 AM
02 1751_02 1750 _05122017_005230.mp4
- Date
- 12/05/2017
- W/O
- 673984
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00254
- PipeID
- P04094
- Time
- 12:52 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5259
- Sewer Name
- 02 DOWNEY-BELLFLOWER EXTENSION TRUNK
- City
- PICO RIVERA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 19A
- Purpose
- Routine Assessment
- Project
- WO_673984_TV02243_DEC2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 1751
- Downstream MH
- 02 1750
- Dir. of Survey
- Downstream
- Length Surveyed
- 303.7 ft.
- Total Length
- 303.7 ft.
- Structural Index
- 3
- Structural Quick
- 413J
- Structural Rating
- 175
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 177
Observation photos (4)

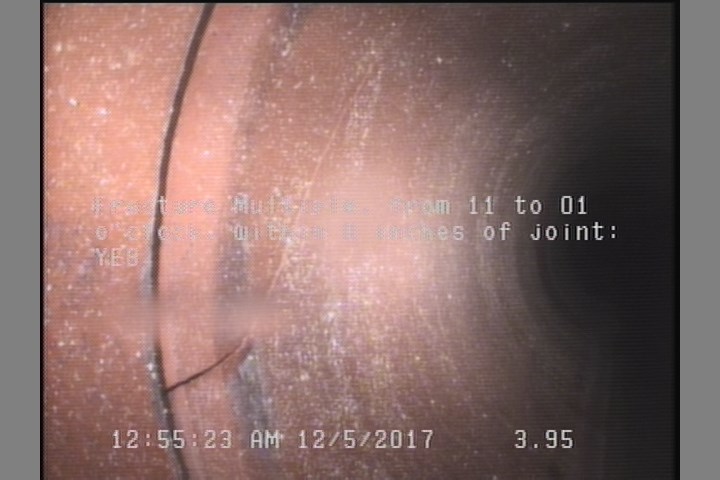

4 ft. - Fracture Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

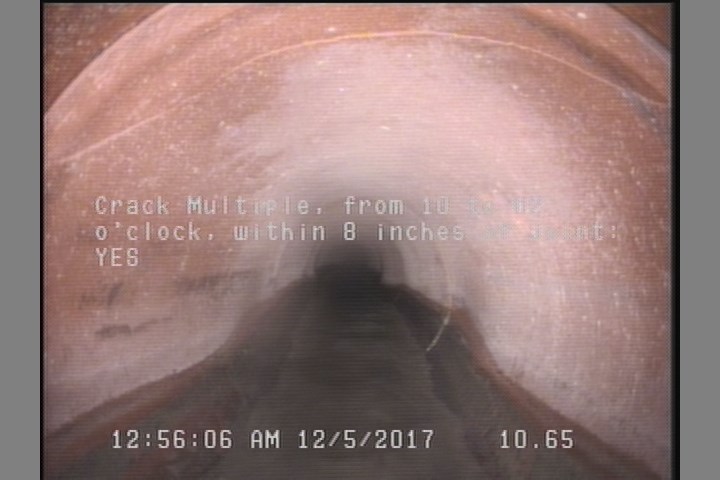

10.7 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

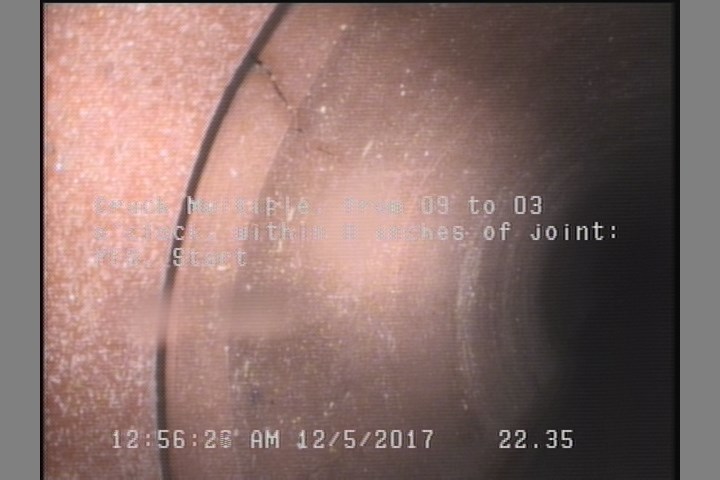

22.4 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

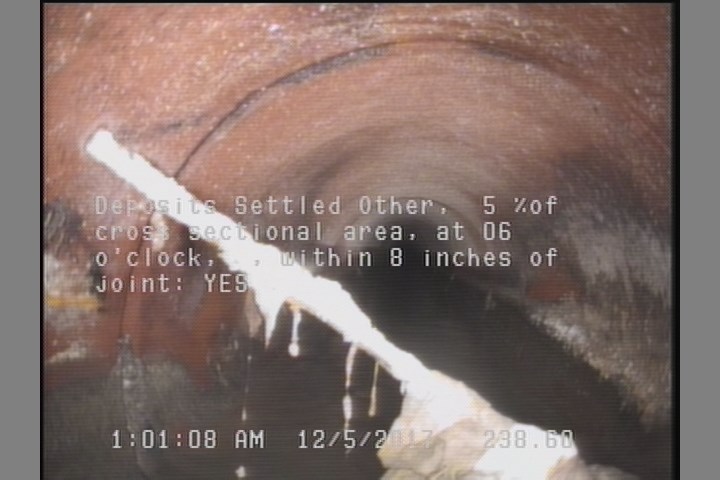

238.6 ft. - Deposits Settled Other, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 238.6 | DSZ | — |
| 0 | MWM | — |
| 303.4 | CM | — |
| 303.7 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 171.4 | TFA | — |
| 4 | FM | — |
| 303.7 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 10.7 | CM | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | AMH | 02 1751 |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 22.4 | CM | — |
| 303.7 | AMH | 02 1750 |
| 224.5 | TF | — |
| 0 | MWL | — |
| 102 | TF | — |
Properties (5)
- additional_info
- SC346288
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-05T00:52:14-08:00
- sewer_category
- Gravity
