Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 5, 2017, 09:18 AM

  • 02 1755_02 1754 _05122017_011905.mp4

Date
12/05/2017
W/O
673984
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00254
PipeID
P04098
Time
1:18 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5259
Sewer Name
02 DOWNEY-BELLFLOWER EXTENSION TRUNK
City
PICO RIVERA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
19A
Purpose
Routine Assessment
Project
WO_673984_TV02243_DEC2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
02 1755
Downstream MH
02 1754
Dir. of Survey
Downstream
Length Surveyed
294.7 ft.
Total Length
294.7 ft.
Structural Index
3
Structural Quick
3G12
Structural Rating
122
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
122
Pipe schematic from manhole 02 1755 to 02 1754
MH: 02 1755MH: 02 1754downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 17550 ft. MGO - General Observation - CAPPED LATERAL 3 O'CLOCK @ MH0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK26.5 ft. CM - Crack Multiple, from 07 to 01 o'clock, within 8 inches of joint: YES60.6 ft. CM - Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES75.2 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"80.1 ft. CC - Crack Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES92.3 ft. CC - Crack Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES97.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start205.6 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"289.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish294.7 ft. AMH - Downstream Manhole, Survey Ends - 02 1754294.7 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK

Observation photos (5)

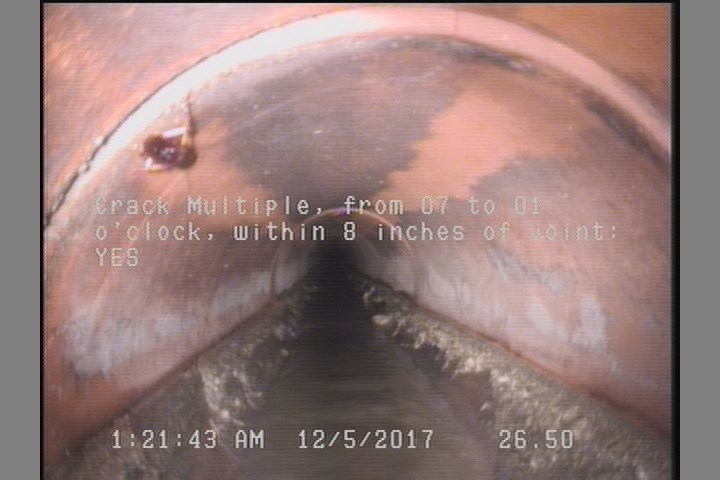

  • Crack Multiple, from 07 to 01 o'clock, within 8 inches of joint: YES

    26.5 ft. - Crack Multiple, from 07 to 01 o'clock, within 8 inches of joint: YES

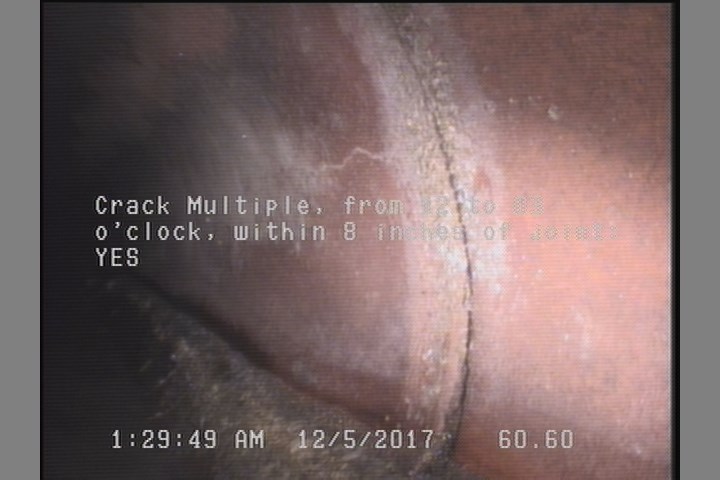

  • Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES

    60.6 ft. - Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES

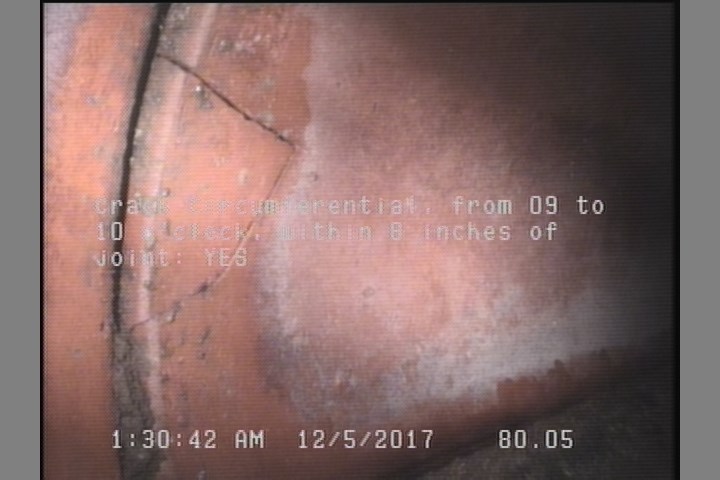

  • Crack Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES

    80.1 ft. - Crack Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES

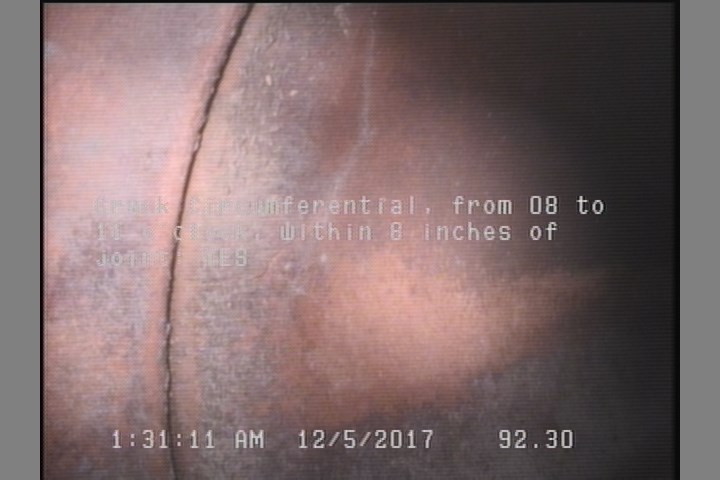

  • Crack Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES

    92.3 ft. - Crack Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES

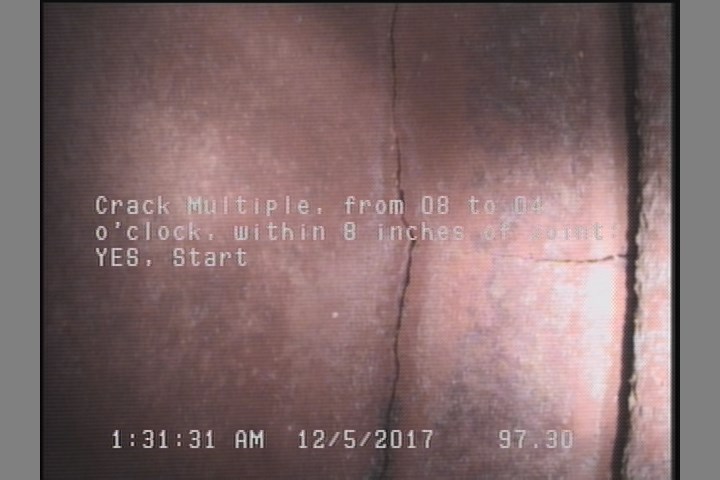

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    97.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P04098Work order 673984

Observations (15)

DistanceCodeObservation
92.3CC—
0MWM—
26.5CM—
0MWL—
0AMH02 1755
0MGOCAPPED LATERAL 3 O'CLOCK @ MH
60.6CM—
289.2CM—
294.7AMH02 1754
97.3CM—
80.1CC—
205.6TFC—
0MGOCONNECTION AT MH 9 O'CLOCK
75.2TF—
294.7MGOCONNECTION AT MH 3 O'CLOCK

Properties (5)

additional_info
SC346288
custom_field_two
3
customer
LACSD
datetime
2017-12-05T01:18:53-08:00
sewer_category
Gravity
