Wastewater/Activity/PacpInspection/1.0Dec 8, 2017, 09:40 AM
18 0984_18 0983 _08122017_014111.mp4
- Date
- 12/08/2017
- W/O
- 673977
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00717
- PipeID
- P14835
- Time
- 1:40 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5268
- Sewer Name
- 18 WORSHAM CREEK RELIEF TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_673977_TV18061_DEC2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 18 0984
- Downstream MH
- 18 0983
- Dir. of Survey
- Downstream
- Length Surveyed
- 21.7 ft.
- Total Length
- 21.7 ft.
- Structural Index
- 4
- Structural Quick
- 4100
- Structural Rating
- 4
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (2)

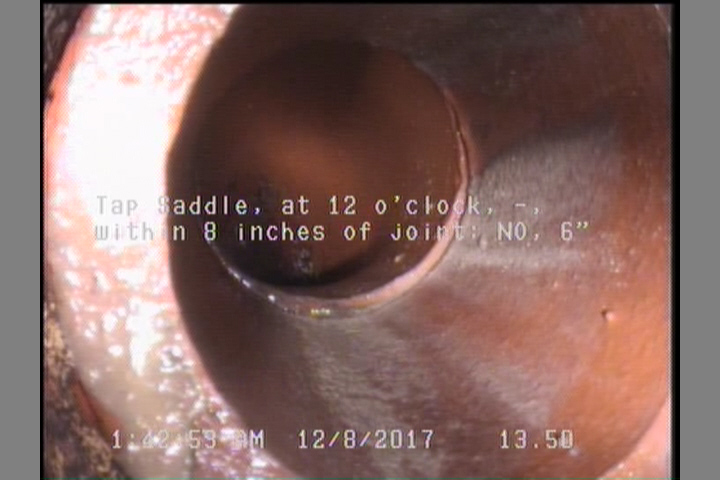

13.5 ft. - Tap Saddle, at 12 o'clock, -, within 8 inches of joint: NO, 6"

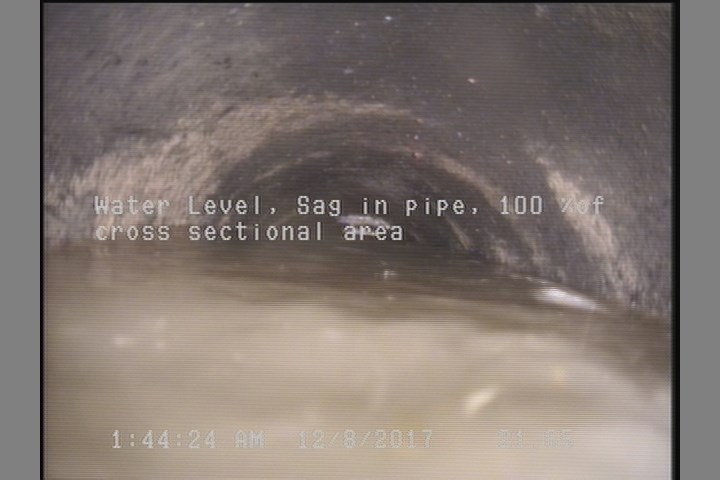

21.7 ft. - Water Level, Sag in pipe, 100 %of cross sectional area
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 9.3 | RML | — |
| 21.7 | MSA | DUE TO SAG/ HIGH FLOW |
| 13.5 | TS | — |
| 0 | AMH | 18 0984 |
| 20 | MGO | SPALLING THROUGHOUT THE REACH, FROM 08 TO 04 O'CLOCK |
| 0 | MWL | — |
| 21.7 | MWLS | — |
| 9.3 | TF | — |
Properties (5)
- additional_info
- SC346295
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-08T01:40:49-08:00
- sewer_category
- Gravity
